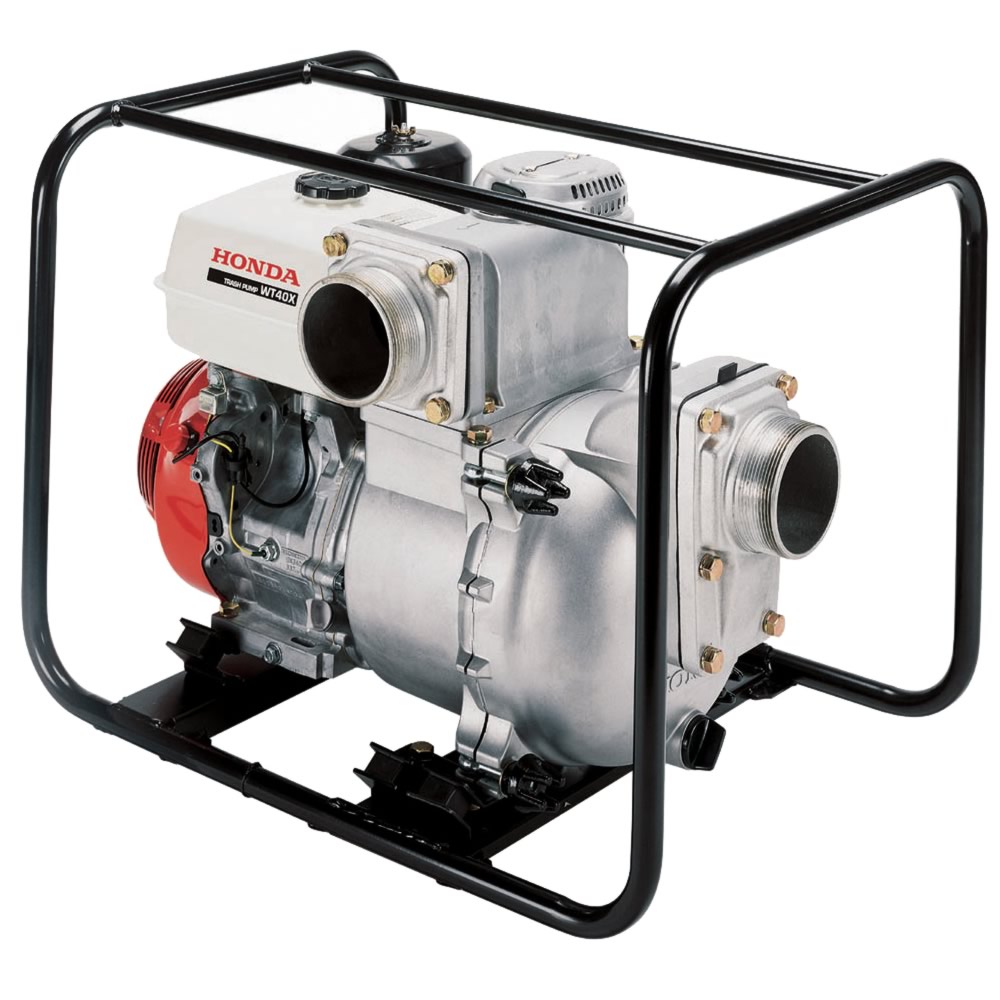

Honda
WT40
423 gpm
Flow rate
82 ft (25.0 m)
Max head
172 lb (78 kg)
Operating weight
1,640 L/min
discharge capacity
4 in (10.2 cm)
discharge port diameter
338 cm3
engine displacement
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Flow rate | Max head | Operating weight |
|---|---|---|---|---|
| Sykes D80 | 93% | 396 gpm | 75.5 ft (23.0 m) | - |
| Magnum MTP300 | 87% | 357 gpm | 92 ft (28.0 m) | - |
| Magnum MTP400 | 80% | 569 gpm | 95 ft (29.0 m) | - |
| Sykes D75 | 79% | 260 gpm | 78.7 ft (24.0 m) | - |
| Godwin NC150 | 77% | 370 gpm | - | - |
| Ironton 750131 | 71% | 176 gpm | 82 ft (25.0 m) | - |
Documents
Full specifications
| Bore and stroke | 3.5" x 2.5" | ↗ |
| Commercial Warranty | 12 months | ↗ |
| Compression Ratio | 8.2:1 | ↗ |
| Dimensions (LxWxH) | 28.9" x 21.1" x 22.2" | ↗ |
| Discharge capacity | 423 gal/min | ↗ |
| Discharge port diameter | 4" | ↗ |
| Displacement | 389 cc | ↗ |
| Drive system | Direct | ↗ |
| Dry weight | 172 lbs. | ↗ |
| Engine | GX390 | ↗ |
| Fuel Capacity | 1.6 gal | ↗ |
| Impeller | Conical Cast Iron | ↗ |
| Maximum pressure | 36 psi | ↗ |
| Mechanical Seal (Pump case / impeller) | Silicon Carbide/Silicon Carbide | ↗ |
| Oil Alert | Std | ↗ |
| Priming time | 150 sec. @16.4 ft. | ↗ |
| Pump Type | Trash Centrifugal Self-priming | ↗ |
| Residential Warranty | 24 months | ↗ |
| Run Time @ Max Discharge | 1.5 hr | ↗ |
| Solids handling | 1 1/16 inches | ↗ |
| Strainer Part # | 78325-YG2-003 | ↗ |
| Suction head lift | 26 ft. | ↗ |
| Suction port diameter | 4" | ↗ |
| Total head lift | 82 ft. | ↗ |
| Volute | Rigid Mounted Cast Iron w/ Stainless Wear Plate | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
