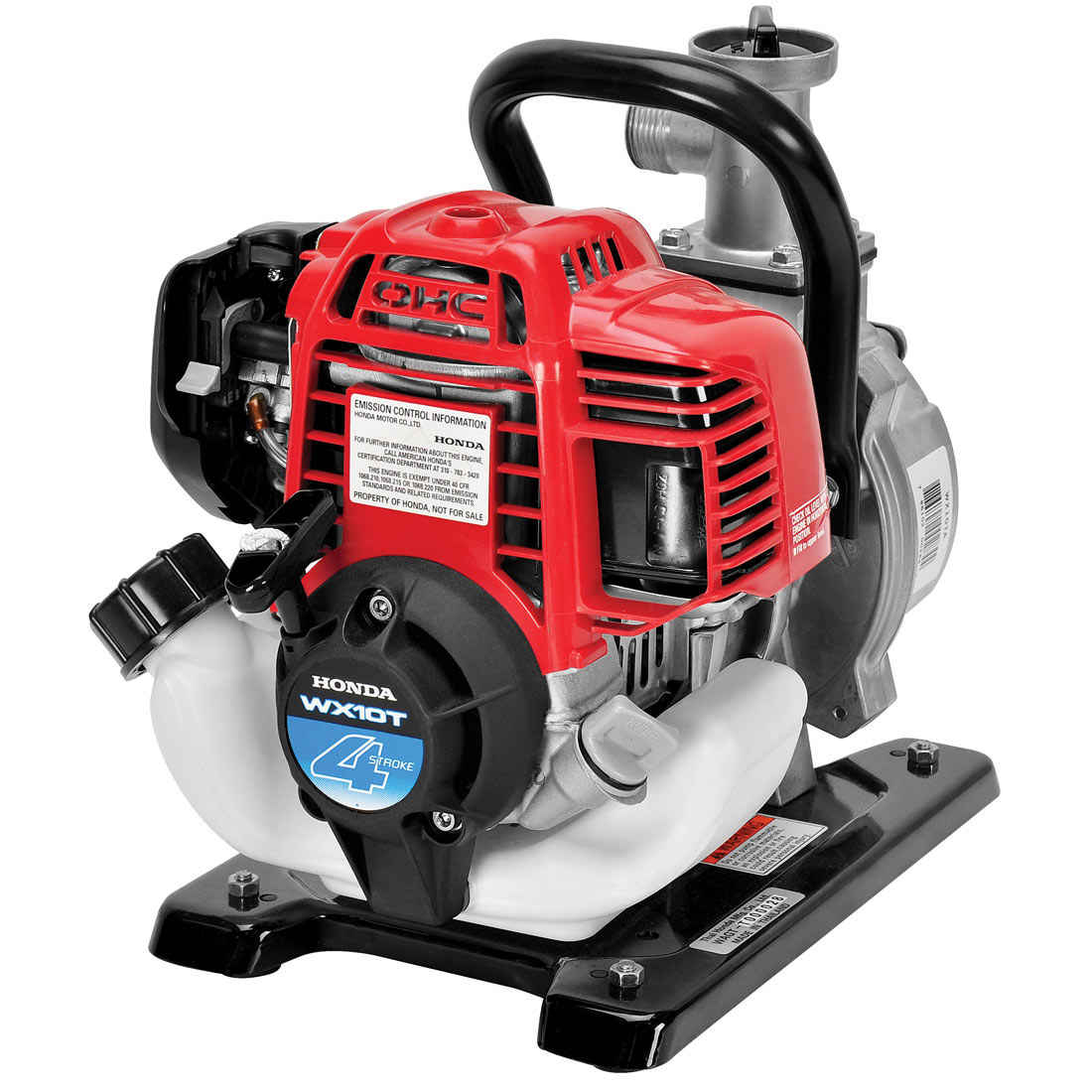

Honda
WX10
32 gpm
Flow rate
121 ft (36.9 m)
Max head
1 in (25.4 mm)
discharge port diameter
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Flow rate | Max head | discharge port diameter |
|---|---|---|---|---|
| Ebara CMA/CMB | 82% | 32 gpm | 187 ft (57.0 m) | - |
| Ironton 60729 | 81% | 26 gpm | 98 ft (29.9 m) | - |
| Ironton 50134 | 76% | 12 gpm | 110 ft (33.5 m) | 1 in (25.4 mm) |
| Ebara CDA | 75% | 29 gpm | 203 ft (62.0 m) | - |
| Ebara CDX | 69% | 66 gpm | 134 ft (41.0 m) | - |
| Ebara 2CDX | 54% | 55 gpm | 246 ft (75.0 m) | - |
Documents
Full specifications
| Bore and stroke | 1.4" x 1.0" | ↗ |
| Commercial Warranty | 1 year | ↗ |
| Compression Ratio | 8.0:1 | ↗ |
| Dimensions (LxWxH) | 13.4"x8.7"x11.6" | ↗ |
| Discharge capacity | 32 gal./min. | ↗ |
| Discharge port diameter | 1.0" NPT | ↗ |
| Displacement | 25cc | ↗ |
| Drive system | Direct | ↗ |
| Dry weight | 13 lbs. | ↗ |
| Engine | GX25 | ↗ |
| Fuel Capacity | 0.56 qt | ↗ |
| Impeller | Aluminum | ↗ |
| Maximum pressure | 52 psi | ↗ |
| Mechanical Seal (Pump case / impeller) | Carbon/Ceramic | ↗ |
| Oil Alert | N/A | ↗ |
| Priming time | 80 sec. at 16.4 ft. | ↗ |
| Pump Type | General purpose Centrifugal Self-priming | ↗ |
| Residential Warranty | 2 years | ↗ |
| Run Time @ Max Discharge | 0.9 hr | ↗ |
| Solids handling | N/A | ↗ |
| Strainer Part # | 78325-YB0-711 | ↗ |
| Suction head lift | 26 ft. | ↗ |
| Suction port diameter | 1.0" NPT | ↗ |
| Total head lift | 121 ft. | ↗ |
| Volute | Aluminum | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
