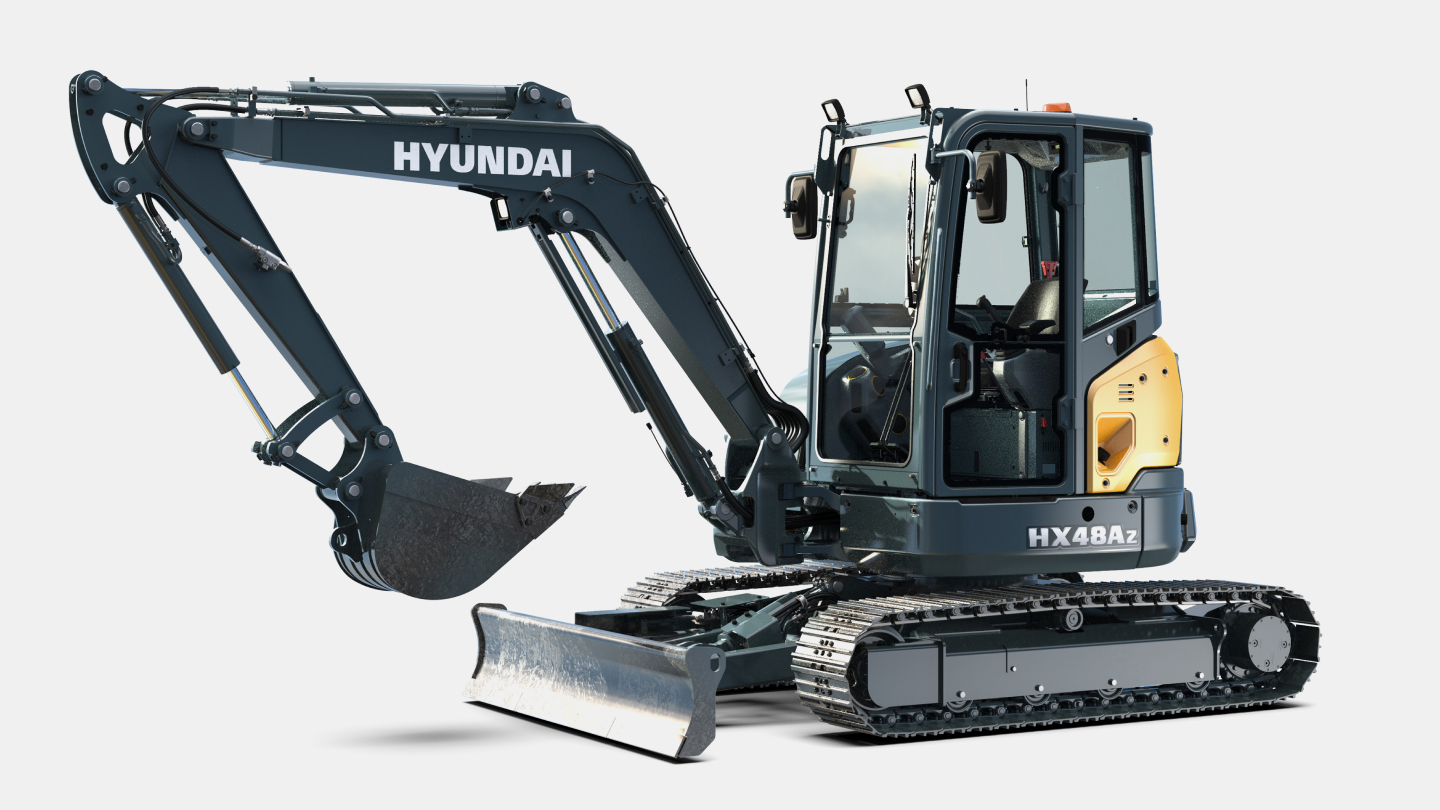

Hyundai Construction Equipment
HX48AZ
39 hp
Engine power
11.5 ft (3.5 m)
Max dig depth
19.7 ft (6.0 m)
Max reach
11,089 lb (5,030 kg)
Operating weight
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max dig depth | Max reach |
|---|---|---|---|---|
| Hitachi ZX48U-6 | 98% | 39 hp | 11.9 ft (3.6 m) | - |
| New Holland E50D | 97% | - | 10.9 ft (3.3 m) | - |
| Kobelco SK45SRX-7 Canopy | 96% | 37 hp | 11.2 ft (3.4 m) | 19.2 ft (5.9 m) |
| Kobelco SK45SRX-7 Cab | 96% | 37 hp | 11.2 ft (3.4 m) | 19.2 ft (5.9 m) |
| Bobcat E50z | 96% | 42 hp | - | - |
| John Deere 50P | 95% | 36 hp | 11 ft (3.4 m) | 19 ft (5.8 m) |
Documents
Full specifications
| Bucket Capacity | 0.15 m³ | ↗ |
| Emission Standard | STAGE V | ↗ |
| Engine Model | 4TNV88C | ↗ |
| Hydraulic Tank | 44 L | ↗ |
| Implement Circuit Pressure | 254 kgf/cm² | ↗ |
| Main Pump Flow | 121 L/min | ↗ |
| Max Digging Depth | 138 in (3,500 mm) | ↗ |
| Max Digging Reach | 236 in (5,990 mm) | ↗ |
| Max Torque | 14.78 kgf·m | ↗ |
| Operating Weight | 5.030 ton | ↗ |
| Rated Power | 29.1 kW | ↗ |
| Swing Speed | 10.1 rpm | ↗ |
| Travel Speed | 2.8 km/h | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
