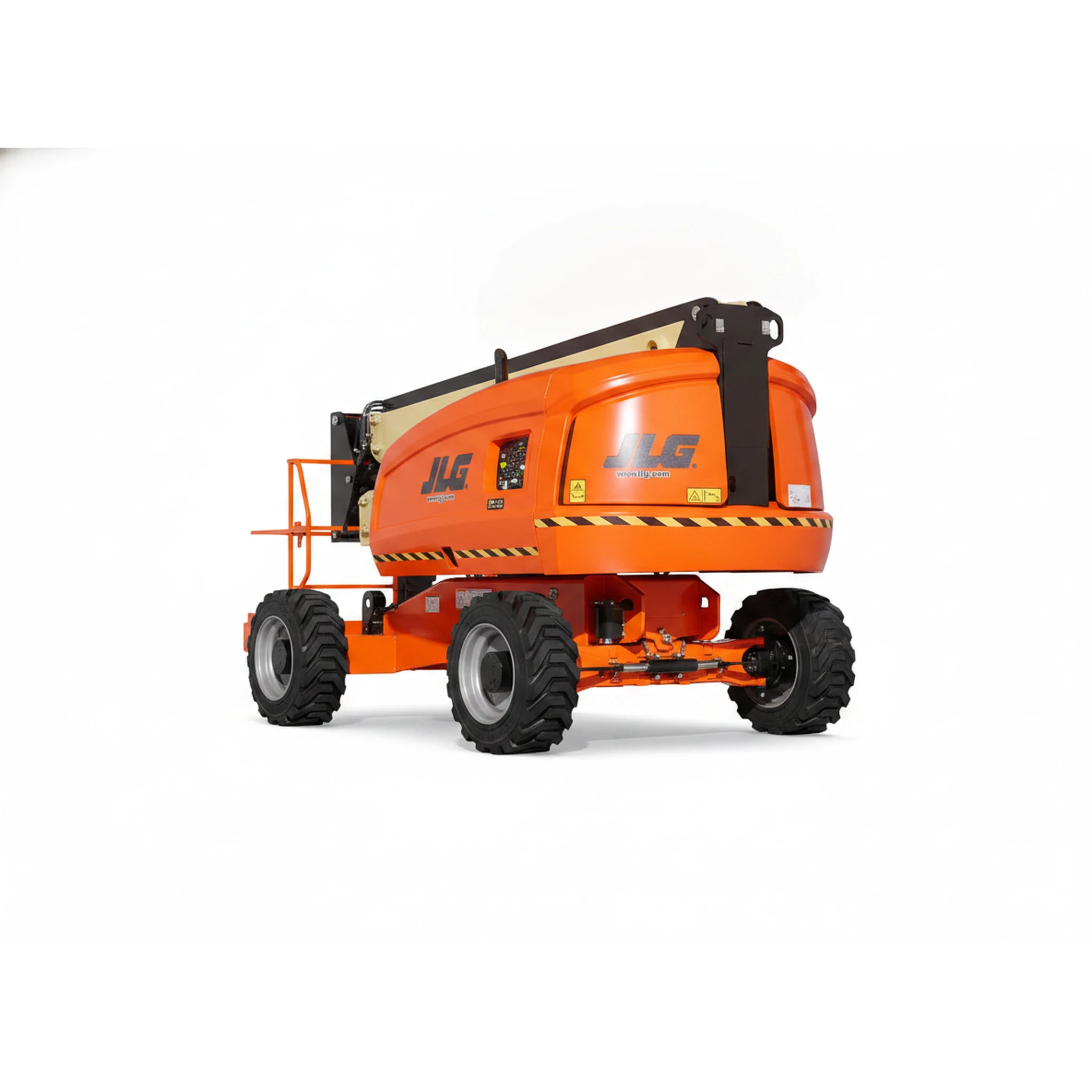

JLG
400S HC3
49 hp
Engine power
33.6 ft (10.2 m)
Max reach
14,520 lb (6,586 kg)
Operating weight
1,001 lb (454 kg)
Platform capacity
40 ft (12.2 m)
Working height
6.8 km/h
drive speed
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| Elliott G40F HiReach | 94% | - | - | - |
| Skyjack SJ40 T+ | 92% | 48 hp | 34.1 ft (10.4 m) | 14,804 lb (6,715 kg) |
| Genie S-45-HF | 88% | 48 hp | 34 ft (10.4 m) | 15,719 lb (7,130 kg) |
| Genie S-45 XC Telescopic Boom Lift | 85% | 51 hp | 36.2 ft (11.0 m) | 14,791 lb (6,709 kg) |
| Genie S-40-HF | 84% | 48 hp | 28.9 ft (8.8 m) | 13,543 lb (6,143 kg) |
| Genie S-45TRAX | 84% | 48 hp | 36.2 ft (11.0 m) | 17,540 lb (7,956 kg) |
Documents
Full specifications
| Axle Oscillation | 4 in (10.2 cm) | ↗ |
| Gradeability | 45% | ↗ |
| Horizontal Outreach | 33–ft 7–in | ↗ |
| Max Platform Capacity | 1,000 lb (454 kg) | ↗ |
| Max Platform Height | 40–ft 0–in | ↗ |
| Swing | 360 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
