Knapheide

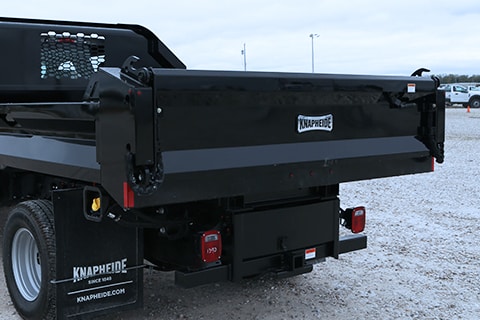

Fixed Side Dump Body
Documents
Full specifications
| Available Body Lengths | 9 to 12 ft | ↗ |
| Chassis Compatibility | Class 3 through 5 | ↗ |
| Floor Material | 7-gauge HRCQ steel two-piece with full seam weld | ↗ |
| Payload Volume | 2.5 to 4 cu yd | ↗ |
| Side Heights | 12 or 16 in | ↗ |
| Side Material | 12-gauge high tensile steel | ↗ |
| Tailgate Construction | 12-gauge HY50 outer, 10-gauge HY50 inner | ↗ |
| Warranty | 3 Year Limited | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
