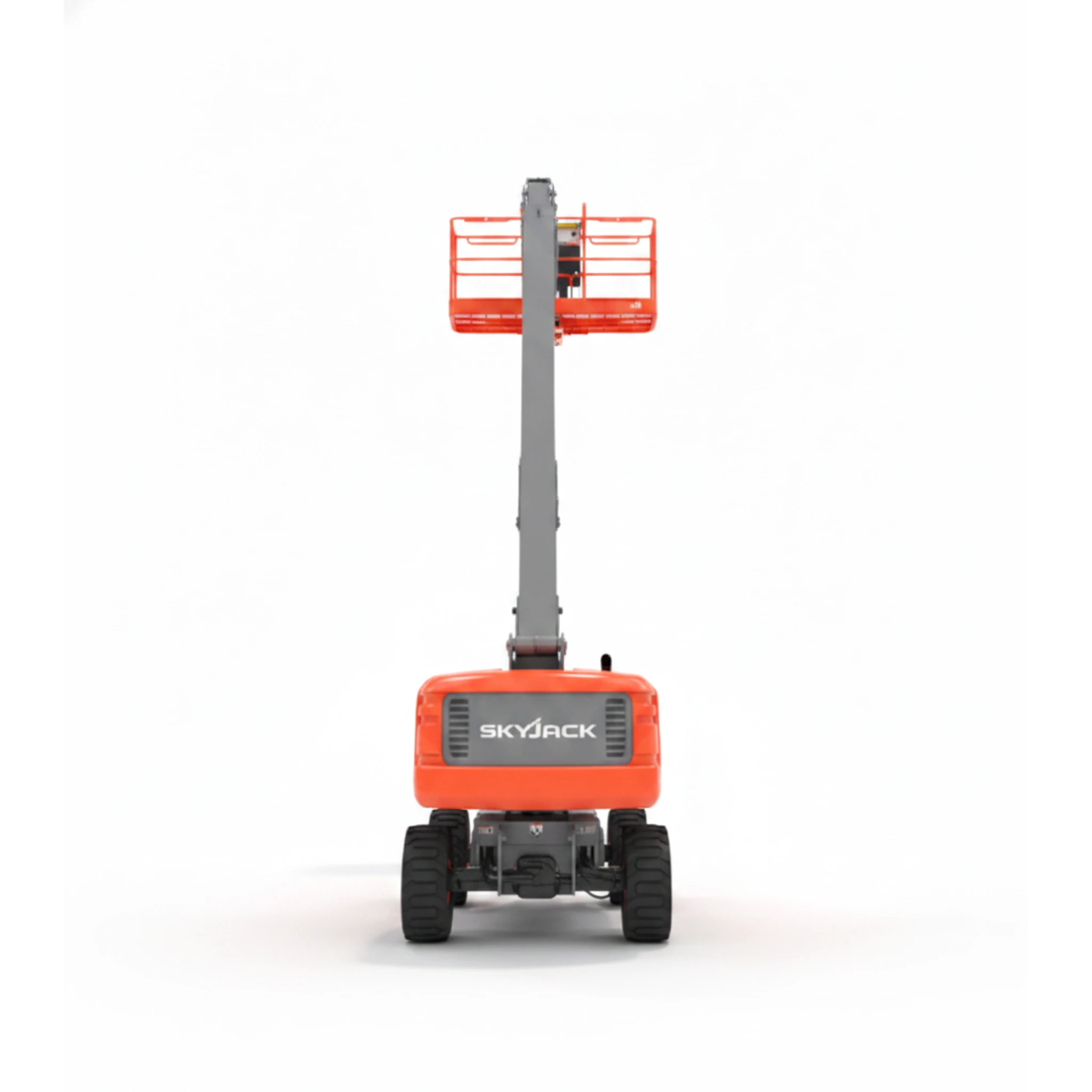

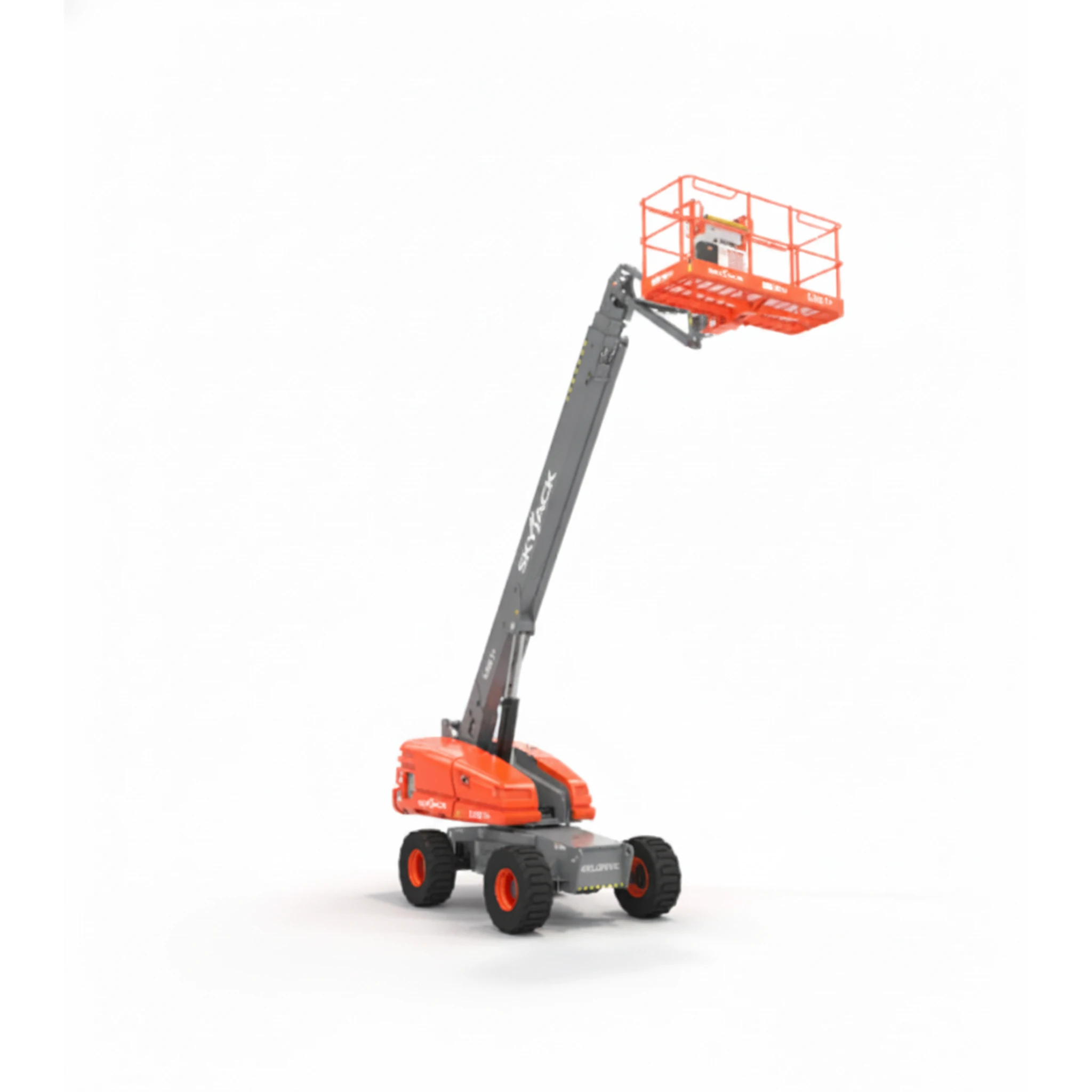

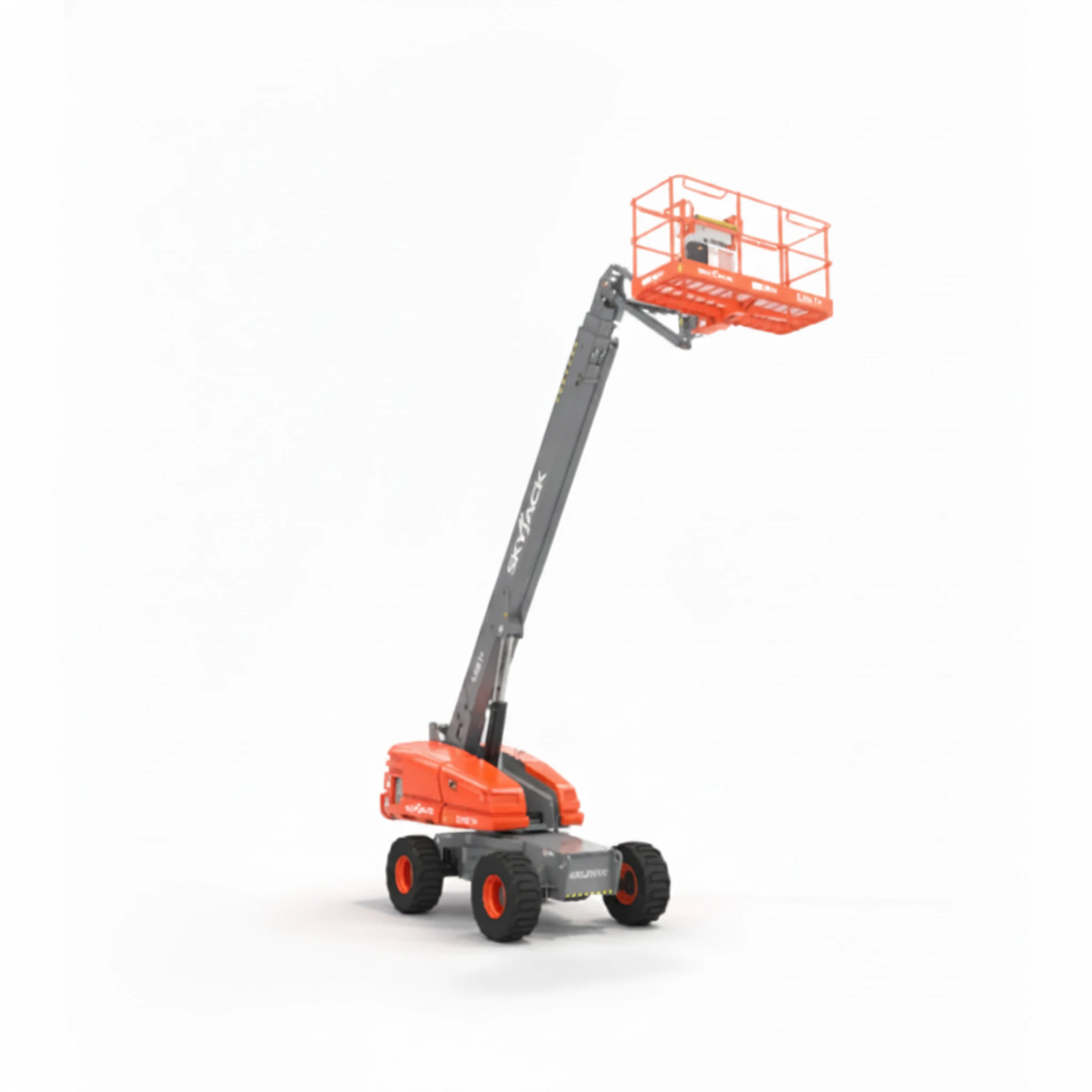

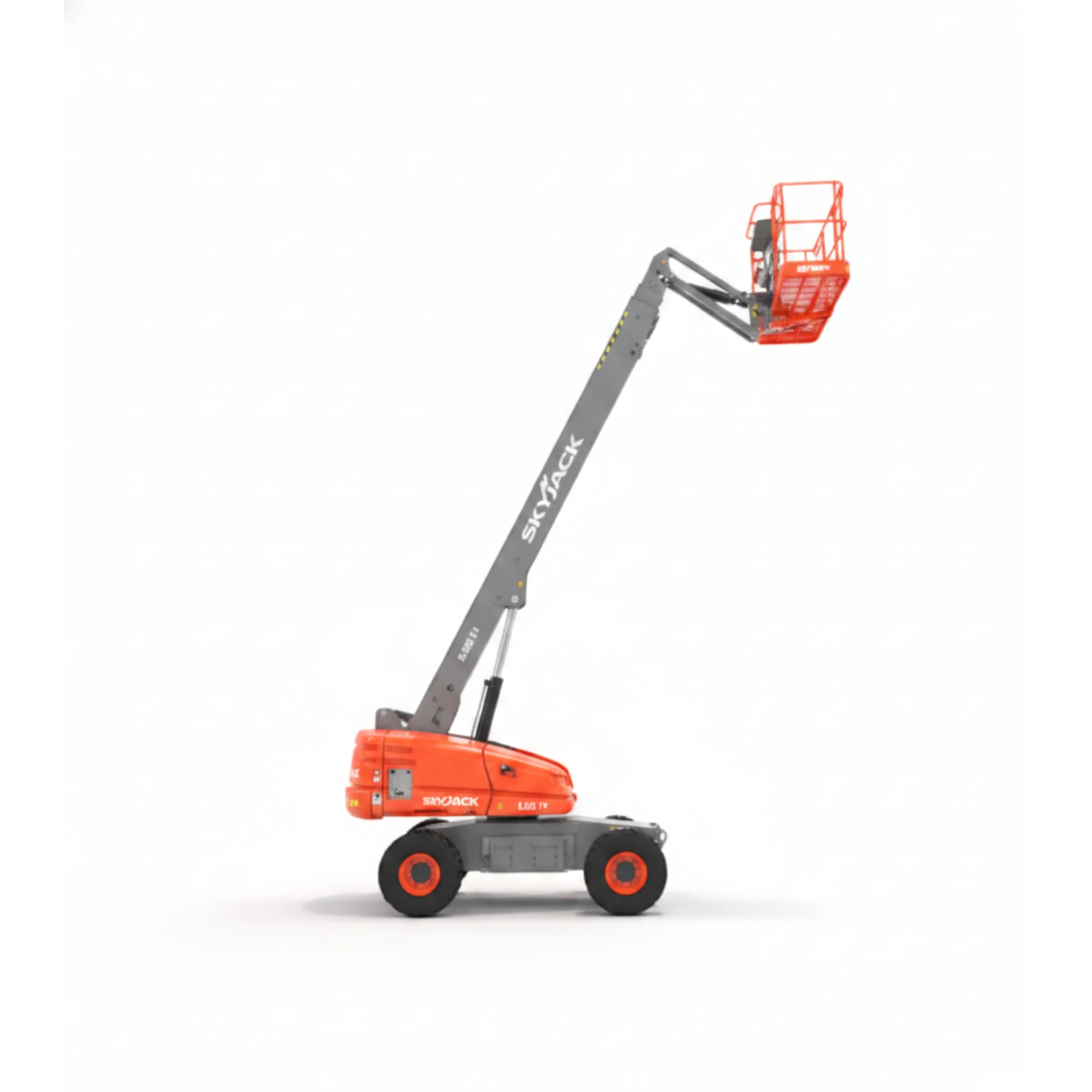

Skyjack
SJ61 T+
61 ft (platform_height)
Working height
Documents
Full specifications
| Capacity | 660 / 1000 lbs (300 / 454 kg) | ↗ |
| Diesel Engine | Deutz TD2.9L - 74 HP (55 KW) | ↗ |
| Drive Speed (High speed) | 4.5 mph (7.2 km/h) | ↗ |
| Dual Fuel Engine | Kubota WG2503 - 61 HP (45 KW) | ↗ |
| Fuel Tank | 45 gal. (170 L) | ↗ |
| Gradeability | 50% | ↗ |
| Hydraulic Reservoir | 60 gal. (227 L) | ↗ |
| Maximum # of Persons | 2 / 3 | ↗ |
| Platform Rotation | 170° | ↗ |
| Rotation | 360° Continuous | ↗ |
| Tire Size | 15 x 19.5 | ↗ |
| Tire Type | Foam-Filled | ↗ |
| Weight | 25,050 lbs (11,365 kg) | ↗ |
| Wind Rating | 28 mph (12.5 m/s) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
