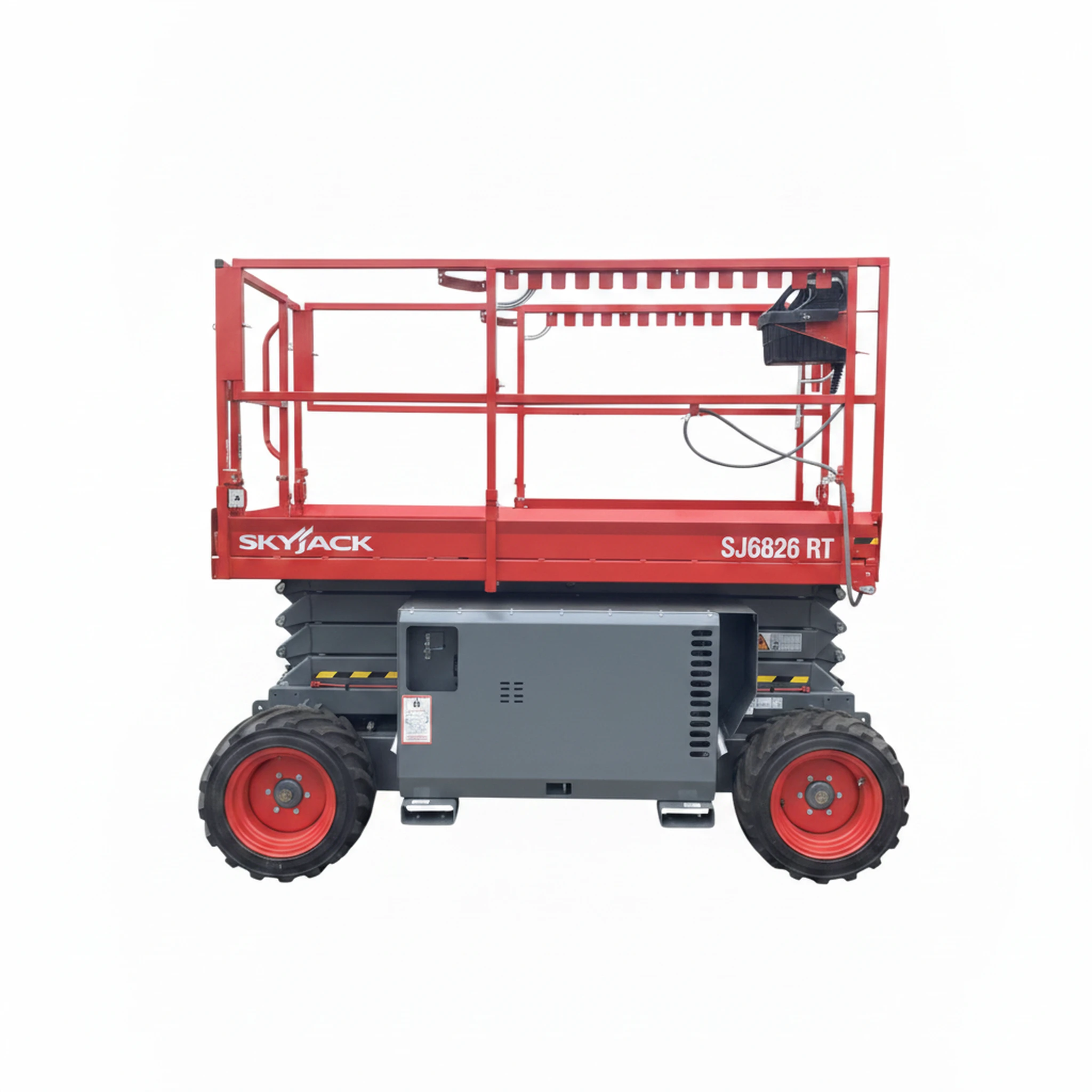

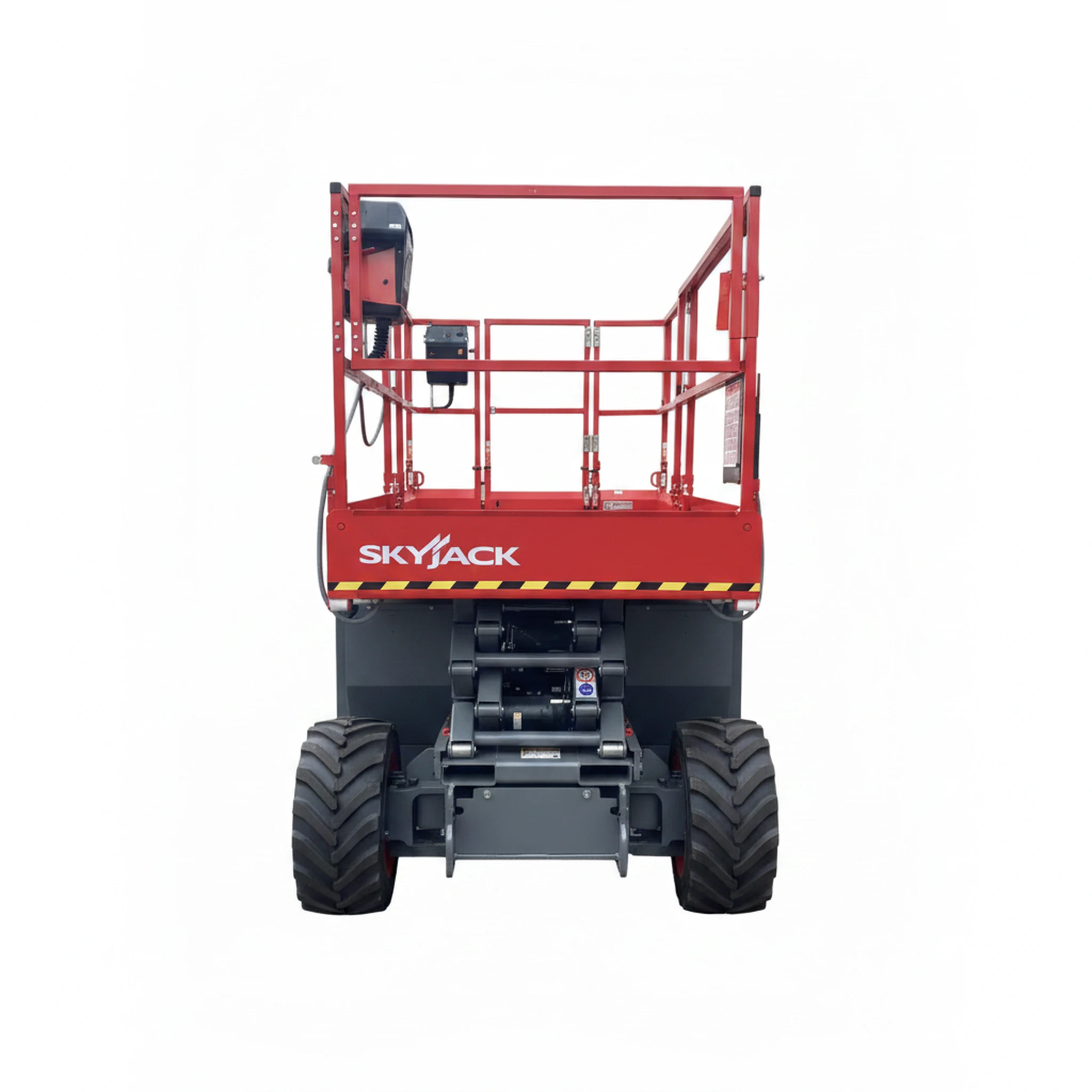

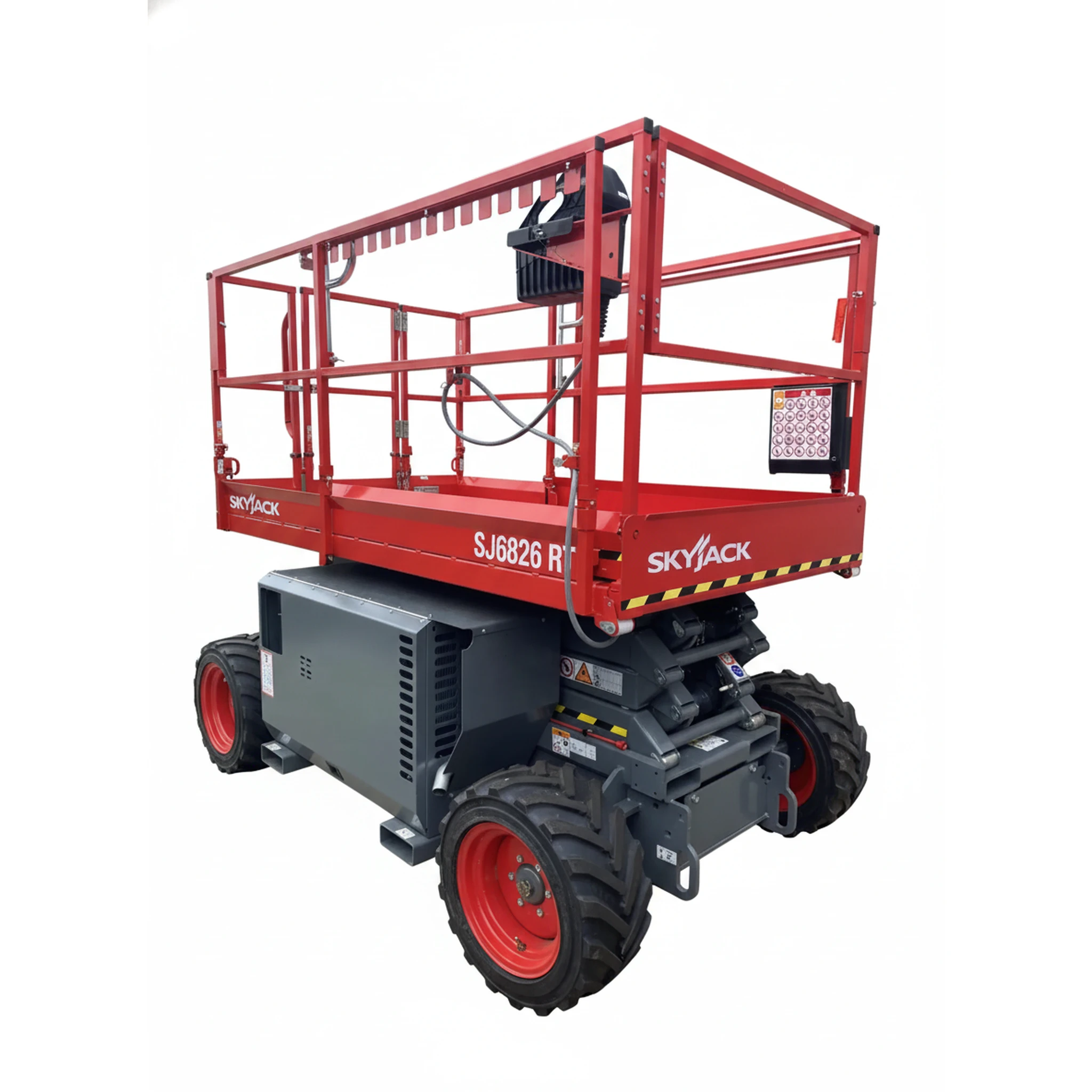

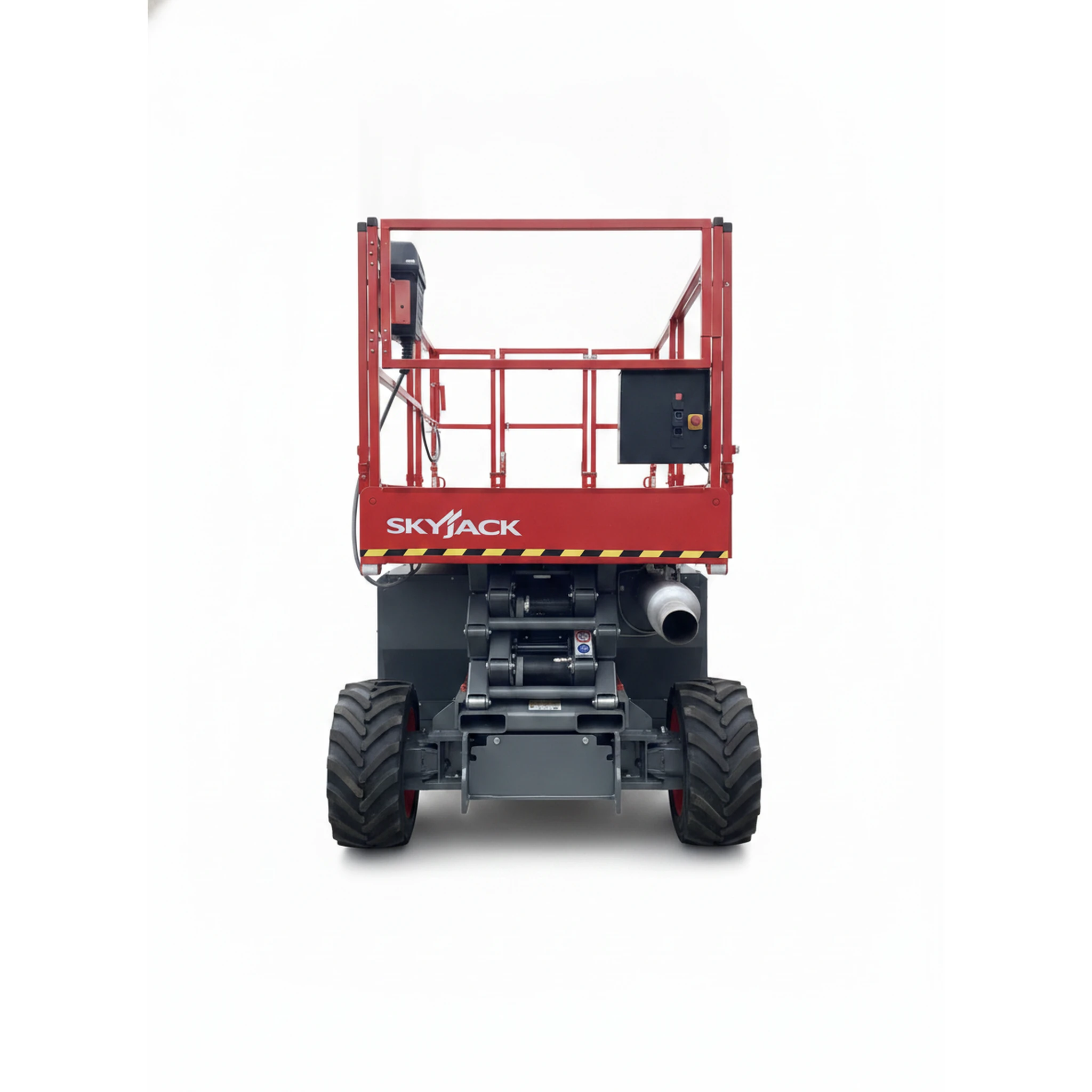

Skyjack
SJ6826 RT
24 hp
Engine power
6,400 lb (2,903 kg)
Operating weight
32.5 ft (9.9 m)
Working height
6.1 km/h
drive speed stowed
50%
gradeability
1,250 lb (567 kg)
lift capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight | Working height |
|---|---|---|---|---|
| Haulotte Compact 10 DX | 96% | 24 hp | 7,275 lb (3,300 kg) | 33.5 ft (10.2 m) |
| Genie GS-68 | 96% | 23 hp | 6,374 lb (2,891 kg) | 32.5 ft (9.9 m) |
| Genie GS-68RT | 96% | 23 hp | 6,374 lb (2,891 kg) | 32.5 ft (9.9 m) |
| Snorkel S2770BE | 94% | 22 hp | 7,024 lb (3,186 kg) | 33 ft (10.1 m) |
| Genie GS-2669-RT | 92% | 25 hp | 7,150 lb (3,243 kg) | 32.8 ft (10.0 m) |
| Snorkel SL30RTE | 92% | - | 7,606 lb (3,450 kg) | 35.3 ft (10.8 m) |
Documents
Full specifications
| Capacity | 1,250 lbs (567 kg) | ↗ |
| Distributed Capacity (Extension Deck) | 300 lbs (136 kg) | ↗ |
| Distributed Capacity (Main Platform) | 950 lbs (431 kg) | ↗ |
| Drive Speed (Raised) | 0.4 mph (0.6 km/h) | ↗ |
| Drive Speed (Stowed) | 3.8 mph (6.1 km/h) | ↗ |
| Gradeability | 45 % | ↗ |
| Lift Time (With Rated Load) | 36 sec | ↗ |
| Local Floor Load (With Rated Load) | 175 psi (1206 kPa) | ↗ |
| Lower Time (With Rated Load) | 36 sec | ↗ |
| Maximum # of Persons | 4 | ↗ |
| Maximum Drive Height | Full Height | ↗ |
| Overall Floor Load (With Rated Load) | 281 psf (13 kPa) | ↗ |
| Tire Size | 26 x 12 | ↗ |
| Tire Type | Foam Filled | ↗ |
| Weight | 6,400 lbs (2,903 kg) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
