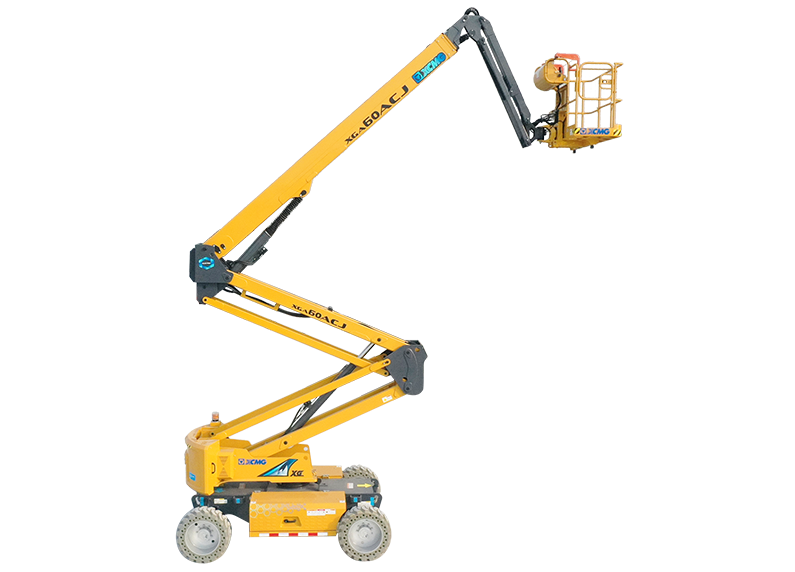

XCMG
XGA60ACJ-ANSI
564 lb (256 kg)
Platform capacity
67 ft (20.4 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Haulotte HA20 E | 99% | 551 lb (250 kg) | 67.3 ft (20.5 m) |
| Haulotte HA20 E PRO | 99% | 551 lb (250 kg) | 67.3 ft (20.5 m) |
| Haulotte HA20 RTJ | 98% | 551 lb (250 kg) | 67.6 ft (20.6 m) |
| Haulotte HA20 RTJ PRO | 98% | 551 lb (250 kg) | 67.6 ft (20.6 m) |
| Niftylift HR21 4x4 | 98% | 551 lb (250 kg) | 68.2 ft (20.8 m) |
| Niftylift HR21E | 98% | 551 lb (250 kg) | 68.2 ft (20.8 m) |
Full specifications
| 1st boom luffing range | 0~72 ° | ↗ |
| 2nd boom luffing range | 0~73 ° | ↗ |
| Max. Grade Ability | 45 % | ↗ |
| Max. Load Capacity | 564(unrestricted)/771(restricted) lbs | ↗ |
| Max. Platform Height | 61' ft | ↗ |
| Max. Travel Speed | 2.98 mph | ↗ |
| Max. Working Height | 67'7'' ft | ↗ |
| Max. Working Range | 39'4'' ft | ↗ |
| Rotation Angle of Turntable | 360 ° | ↗ |
| Total Weight | 20,062 lbs (9,100 kg) | ↗ |
| Wheel Base | 8'2'' ft | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
