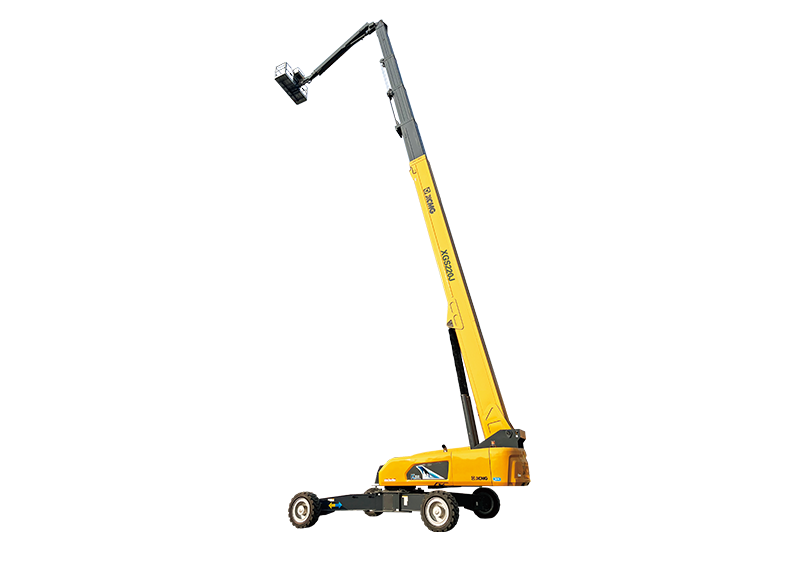

XCMG
XGS220J-ANSI
661 lb (300 kg)
Platform capacity
220 ft (platform_height)
Working height
Documents
Full specifications
| Boom Luffing Range | 0~79.5 ° | ↗ |
| Max. Grade Ability | 35 % | ↗ |
| Max. Load Capacity | 661 (unrestricted) / 1014 (restricted) lbs | ↗ |
| Max. Platform Height | 221'9'' ft | ↗ |
| Max. Travel Speed | 2.8 mph | ↗ |
| Max. Working Height | 228'4'' ft | ↗ |
| Max. Working Range | 105' ft | ↗ |
| Rotation Angle of Turntable | 360 ° | ↗ |
| Total Weight | 78,044 lbs (35,400 kg) | ↗ |
| Wheel Base | 19'3''（axle retracted) ft | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
