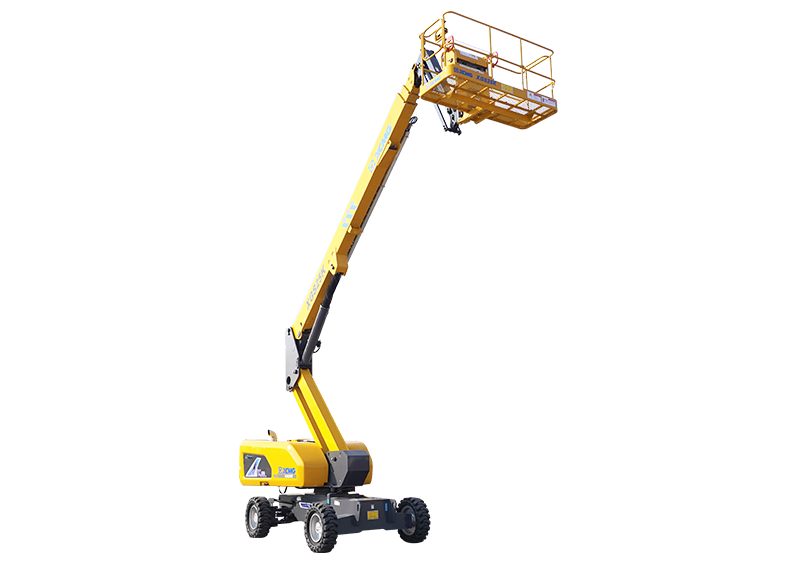

XCMG
XGS25K
661 lb (300 kg)
Platform capacity
Full specifications
| Dimension of working platform | 2400x900x1150 mm | ↗ |
| Drive speed | 5.1 km/h stowed | ↗ |
| Fly jib length | 72.8 in (1,850 mm) | ↗ |
| Flying jib luffing range | -65°~ +70° | ↗ |
| Ground clearance | 11.8 in (300 mm) | ↗ |
| Lift capacity | 300kg(unlimited)/460kg(limited) | ↗ |
| Max.Gradeability | 45% (24°) | ↗ |
| Max.Occupants | 3 | ↗ |
| Max.Platform height | 75.5 ft (23 m) | ↗ |
| Max.Working range | 58.7 ft (17.9 m) | ↗ |
| Max.Working slope | X-3°/ Y-3° | ↗ |
| Min.Turning radius | 3500 mm/6200 mm inside/outside | ↗ |
| Overall dimension-Stowed | 10240x2490x2820 mm | ↗ |
| Overall dimension-Transportation | 9480x2490x3000 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Telescopic boom luffing range | -4°~ +73° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 1950 mm stowed | ↗ |
| Weight | 28,109 lb (12,750 kg) | ↗ |
| Wheelbase | 118 in (3,000 mm) | ↗ |
| Working Height | 984 in (25,000 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
