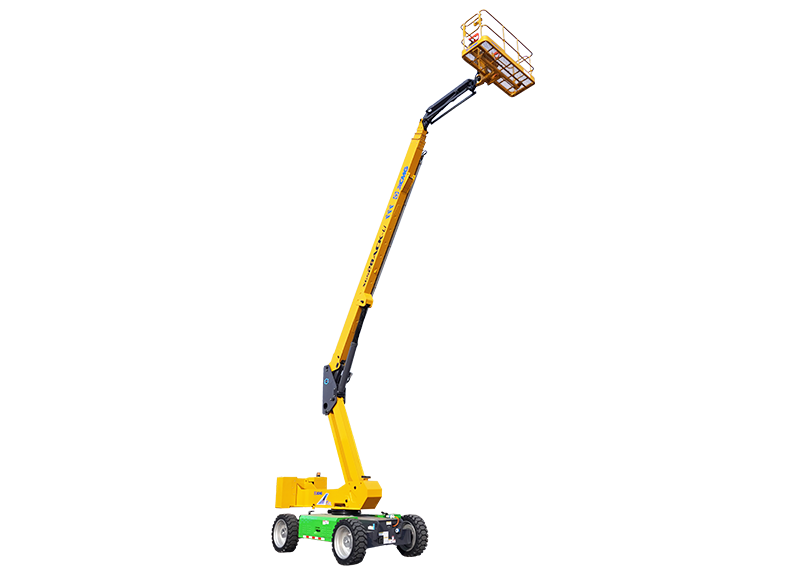

XCMG
XGS28ACK-Li
661 lb (300 kg)
Platform capacity
94.5 ft (28.8 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Niftylift SP85 4x4 | 96% | 619 lb (281 kg) | 92 ft (28.0 m) |
| Elliott H90R HiReach | 95% | 600 lb (272 kg) | 93 ft (28.3 m) |
| JLG 860SJ | 90% | 750 lb (340 kg) | 86 ft (26.2 m) |
| MEC DualReach 85-J Hybrid | 90% | 600 lb (272 kg) | 85 ft (25.9 m) |
| Genie S-100HD & S-120HD | 89% | 750 lb (340 kg) | 106 ft (32.3 m) |
| Haulotte HT28 RTJ O | 87% | 507 lb (230 kg) | 91.5 ft (27.9 m) |
Full specifications
| Dimension of working platform | 2440x910x1150 mm | ↗ |
| Drive speed | 6km/h stowed | ↗ |
| Fly jib length | 72.8 in (1,850 mm) | ↗ |
| Flying jib luffing range | -65°~ +70° | ↗ |
| Ground clearance | 12.6 in (320 mm) | ↗ |
| Lift capacity | 300kg(unlimited)/460kg(limited) | ↗ |
| Max.Gradeability | 45% (24°) | ↗ |
| Max.Occupants | 3 | ↗ |
| Max.Platform height | 87.9 ft (26.8 m) | ↗ |
| Max.Working range | 72.2 ft (22 m) | ↗ |
| Max.Working slope | X-3°/ Y-3° | ↗ |
| Min.Turning radius | 3360mm/669mm inside/outside | ↗ |
| Overall dimension-Stowed | 11690x2490x2930 mm | ↗ |
| Overall dimension-Transportation | 11460x2490x3000 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Telescopic boom luffing range | -4°~ +73° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 1809mm stowed | ↗ |
| Weight | 36,597 lb (16,600 kg) | ↗ |
| Wheelbase | 126 in (3,200 mm) | ↗ |
| Working Height | 1,134 in (28,800 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
