XCMG

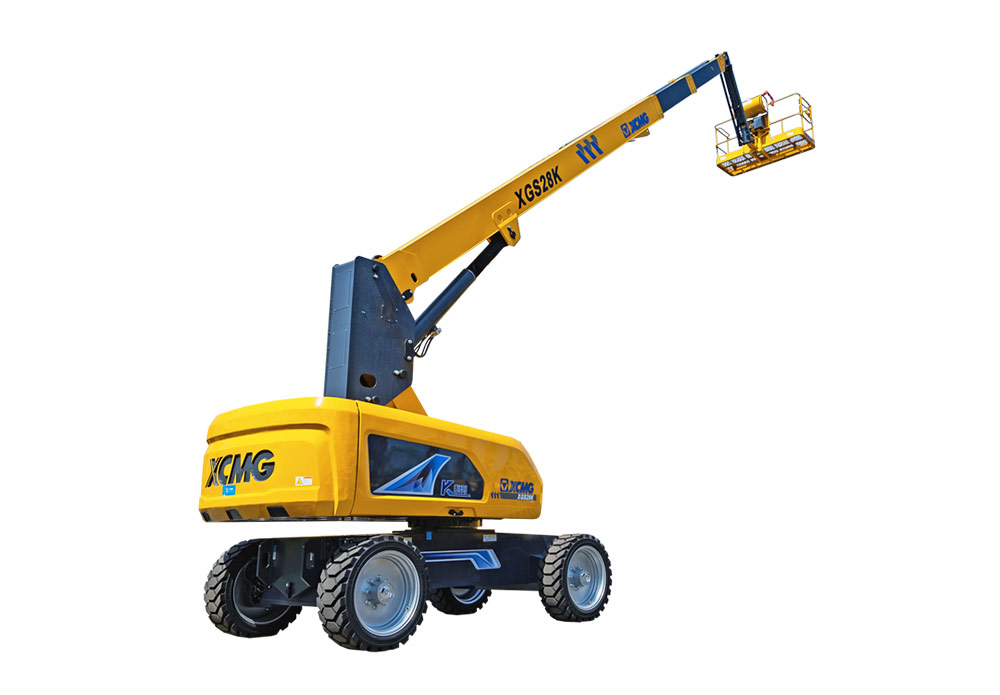

XGS28K
661 lb (300 kg)
Platform capacity
Full specifications
| Dimension of working platform | 2440x910x1150 mm | ↗ |
| Drive speed | 6.1km/h stowed | ↗ |
| Fly jib length | 63.0 in (1,600 mm) | ↗ |
| Flying jib luffing range | -65°~ +70° | ↗ |
| Ground clearance | 12.2 in (310 mm) | ↗ |
| Lift capacity | 300kg(unlimited)/460kg(limited) | ↗ |
| Max.Gradeability | 40% (22°) | ↗ |
| Max.Occupants | 3 | ↗ |
| Max.Platform height | 86.0 ft (26.2 m) | ↗ |
| Max.Working range | 67.6 ft (20.6 m) | ↗ |
| Max.Working slope | X-3°/ Y-3° | ↗ |
| Min.Turning radius | 3600mm/6700mm inside/outside | ↗ |
| Overall dimension-Stowed | 12300x2490x3050 mm | ↗ |
| Overall dimension-Transportation | 12300x2490x3050 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Telescopic boom luffing range | -5°~ +73° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 1600mm stowed | ↗ |
| Weight | 36,376 lb (16,500 kg) | ↗ |
| Wheelbase | 118 in (3,000 mm) | ↗ |
| Working Height | 1,110 in (28,200 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
