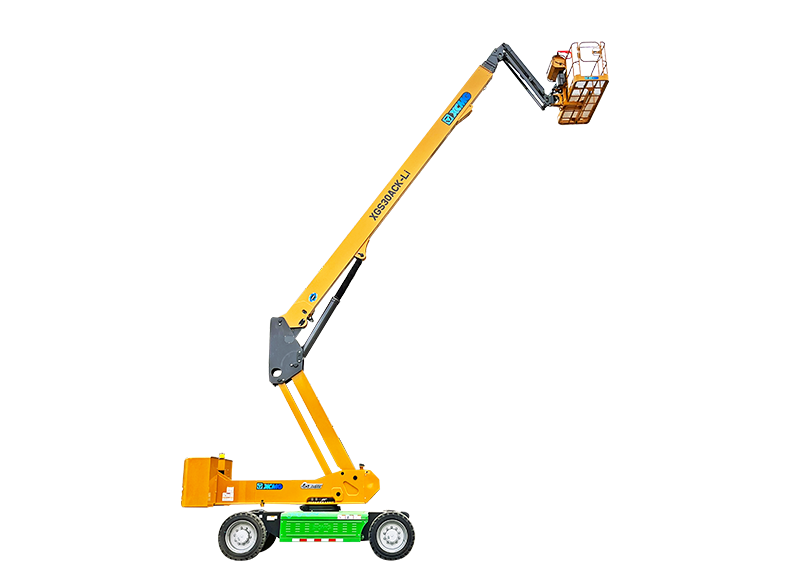

XCMG
XGS30ACK-Li
661 lb (300 kg)
Platform capacity
Full specifications
| Dimension of working platform | 2400x900x1150 mm | ↗ |
| Drive speed | 6km/h stowed | ↗ |
| Fly jib length | 72.8 in (1,850 mm) | ↗ |
| Flying jib luffing range | -65°~ +70° | ↗ |
| Ground clearance | 14.4 in (365 mm) | ↗ |
| Lift capacity | 300kg(unlimited)/460kg(limited) | ↗ |
| Max.Gradeability | 45% (24°) | ↗ |
| Max.Occupants | 3 | ↗ |
| Max.Platform height | 92.8 ft (28.3 m) | ↗ |
| Max.Working range | 68.9 ft (21 m) | ↗ |
| Max.Working slope | X-3°/ Y-3° | ↗ |
| Min.Turning radius | 3360mm/669mm inside/outside | ↗ |
| Overall dimension-Stowed | 12500x2490x2820 mm | ↗ |
| Overall dimension-Transportation | 11000x2490x3100 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Telescopic boom luffing range | -4°~ +73° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 1809mm stowed | ↗ |
| Weight | 36,817 lb (16,700 kg) | ↗ |
| Wheelbase | 126 in (3,200 mm) | ↗ |
| Working Height | 1,193 in (30,300 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
