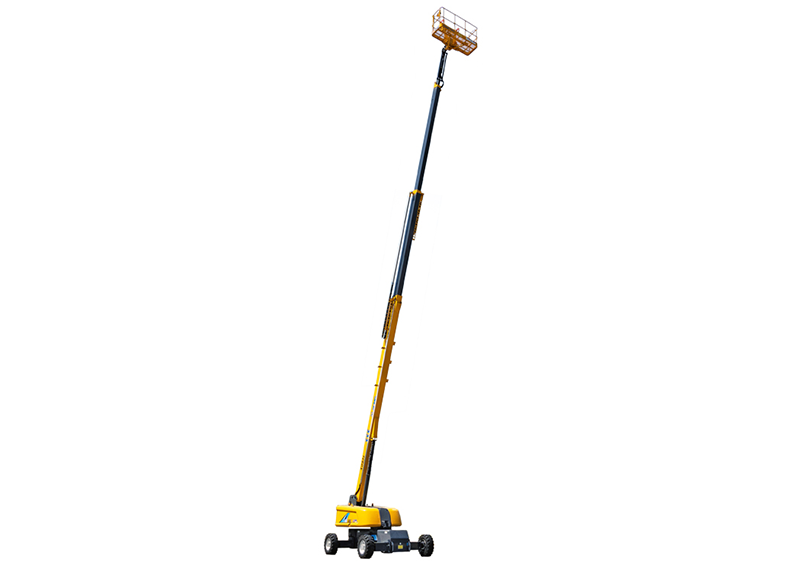

XCMG
XGS34K(II)
661 lb (300 kg)
Platform capacity
Full specifications
| Dimension of working platform | 2440x900x1150 mm | ↗ |
| Drive speed | 4.5km/h stowed | ↗ |
| Fly jib length | 72.8 in (1,850 mm) | ↗ |
| Flying jib luffing range | -65°~ +70° | ↗ |
| Ground clearance | 11.8 in (300 mm) | ↗ |
| Lift capacity | 300kg(unlimited)/460kg(limited) | ↗ |
| Max.Gradeability | 45% (24°) | ↗ |
| Max.Occupants | 3 | ↗ |
| Max.Platform height | 107 ft (32.5 m) | ↗ |
| Max.Working range | 67.9 ft (20.7 m) | ↗ |
| Max.Working slope | X-3°/ Y-3° | ↗ |
| Min.Turning radius | 4400mm/6250mm inside/outside | ↗ |
| Overall dimension-Stowed | 13800x2490x2980 mm | ↗ |
| Overall dimension-Transportation | 11850x2490x3000 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Telescopic boom luffing range | -4°~ +73° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 2030mm stowed | ↗ |
| Weight | 41,226 lb (18,700 kg) | ↗ |
| Wheelbase | 118 in (3,000 mm) | ↗ |
| Working Height | 1,358 in (34,500 mm) | ↗ |
