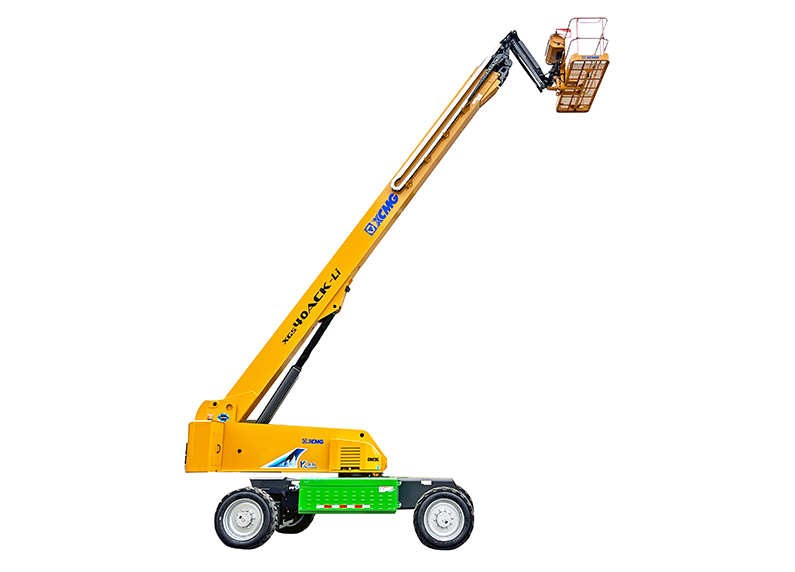

XCMG
XGS40ACK-Li
661 lb (300 kg)
Platform capacity
Full specifications
| Dimension of working platform | 2400x900x1150 mm | ↗ |
| Drive speed | 19700Kg stowed | ↗ |
| Fly jib length | 55.9 in (1,420 mm) | ↗ |
| Flying jib luffing range | -60°~+70° | ↗ |
| Ground clearance | 11.8 in (300 mm) | ↗ |
| Lift capacity | 300(unlimited)/460(limited) kg | ↗ |
| Max.Gradeability | 5000mm/8000mm(2-wheel)2400mm/5800mm(4-wheel) | ↗ |
| Max.Occupants | 3 | ↗ |
| Max.Platform height | 125 ft (38.2 m) | ↗ |
| Max.Working range | 72.5 ft (22.1 m) | ↗ |
| Max.Working slope | X-3°/ Y-3° | ↗ |
| Min.Turning radius | 0.5 Km/h inside/outside | ↗ |
| Overall dimension-Stowed | 14025x2490/3800x3000 mm | ↗ |
| Overall dimension-Transportation | 12500x2490/3800x3000 mm | ↗ |
| Platform rotation | 160° | ↗ |
| Telescopic boom luffing range | -6.5°~ +75° | ↗ |
| Turntable rotation | 360° | ↗ |
| Turntable tailswing | 7700mm/10800mm(2-wheel) 4400mm/6800mm(4-wheel) stowed | ↗ |
| Weight | 43,431 lb (19,700 kg) | ↗ |
| Wheelbase | 150 in (3,800 mm) | ↗ |
| Working Height | 1,583 in (40,200 mm) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
