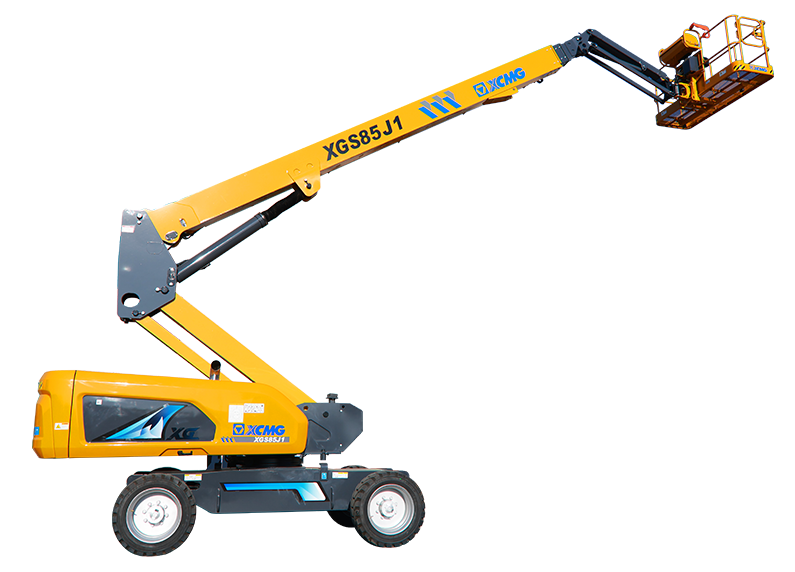

XCMG
XGS85J1-ANSI
661 lb (300 kg)
Platform capacity
94 ft (28.7 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Niftylift SP85 4x4 | 96% | 619 lb (281 kg) | 92 ft (28.0 m) |
| Elliott H90R HiReach | 95% | 600 lb (272 kg) | 93 ft (28.3 m) |
| MEC DualReach 85-J Hybrid | 91% | 600 lb (272 kg) | 85 ft (25.9 m) |
| JLG 860SJ | 90% | 750 lb (340 kg) | 86 ft (26.2 m) |
| Genie S-100HD & S-120HD | 88% | 750 lb (340 kg) | 106 ft (32.3 m) |
| Haulotte HT28 RTJ O | 87% | 507 lb (230 kg) | 91.5 ft (27.9 m) |
Full specifications
| Boom Luffing Range | -4~73 ° | ↗ |
| Max. Grade Ability | 45 % | ↗ |
| Max. Load Capacity | 661 (unrestricted) / 1014 (restricted) lbs | ↗ |
| Max. Platform Height | 87'11'' ft | ↗ |
| Max. Travel Speed | 3.7 mph | ↗ |
| Max. Working Height | 94'6'' ft | ↗ |
| Max. Working Range | 72' 2'' ft | ↗ |
| Rotation Angle of Turntable | 360 ° | ↗ |
| Total Weight | 35,053 lbs (15,900 kg) | ↗ |
| Wheel Base | 9'10'' ft | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
