CAT CLASS: HQ-10958

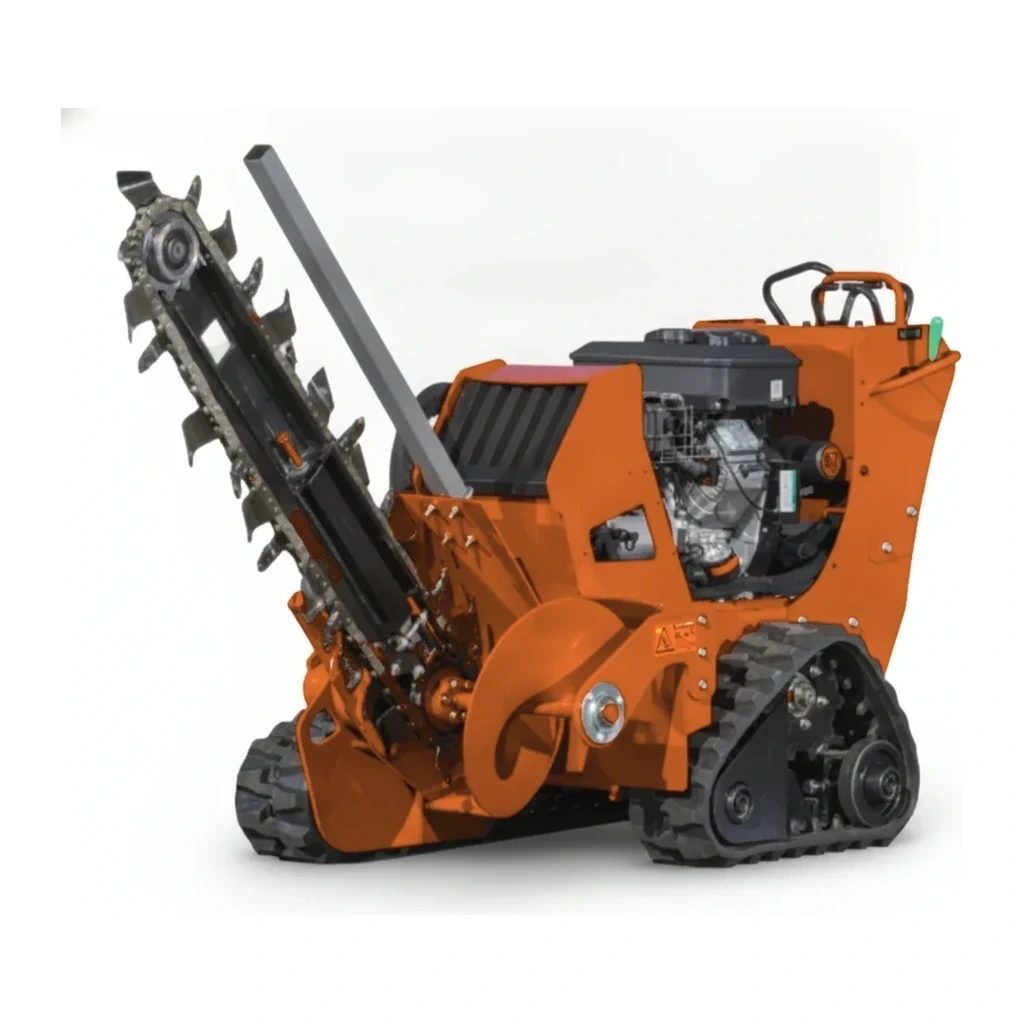

36+ in Walk-Behind Trencher

The 36+ in walk-behind trencher class represents the deepest walk-behind machines in the industry, digging to 8.1 ft for sewer laterals, deep utility service, and foundation drainage in soft ground. These machines bridge the gap between 24-36 in walk-behinds and ride-on trenchers, offering maximum depth capacity while remaining operator-guided. Six models from Ditch Witch and Blue Diamond define this segment, spanning 16.5 to 121 hp.

Modèles

Marques

Cat classes

Choisissez une classe de taille — la capacité et la portée varient selon la gamme.

Spécifications clés

Spécification	Plage typique	Signification
Max dig depth	3–8.1 ft (0.9–2.5 m)	Reaches sewer lateral and deep service depths without a ride-on machine
Engine power	16.5–121 hp	Wide power range accommodates both compact units and high-production models
Trench width	Varies by chain	Interchangeable digging chains match pipe diameter and backfill requirements

Comment choisir

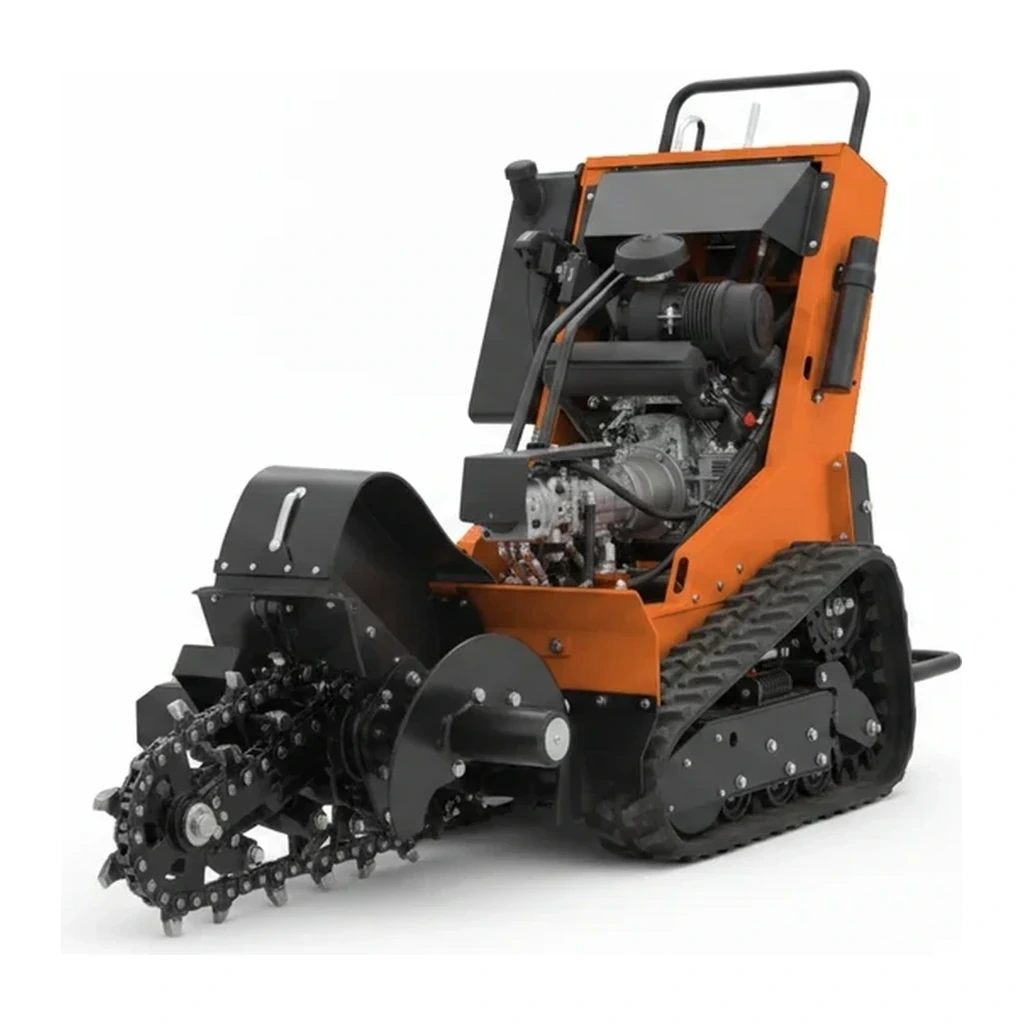

This size class suits projects requiring depths beyond 36 inches in accessible terrain where an operator can walk alongside the machine—sewer laterals to buildings, deep water services, and foundation perimeter drains. The 24-36 in walk-behind handles most residential utility work at shallower depths with less machine weight and lower fuel consumption. When trench depth exceeds 6 ft regularly, when ground conditions include rock or hardpan, or when production volume justifies it, a ride-on trencher offers better productivity and operator comfort despite higher transport and operating costs.

Ce que cette taille peut gérer

Sewer lateral connections from street main to building foundation
Deep water service lines below frost depth in northern climates
Perimeter foundation drainage systems at 4–6 ft depth
Irrigation main lines and valve manifolds in soft soil
Electrical duct banks and telecommunications conduit at depth
Drainage swales and curtain drains for site grading

Sécurité et opération

Operator walks behind machine; stable footing and clear path essential on slopes or uneven ground
Digging chain exposed during operation; maintain clearance from bystanders and obstacles
Depth exceeding 5 ft requires trench protection or sloping per OSHA excavation standards
Utility locate and hand-digging mandatory before trenching; striking underground lines at depth poses severe hazard

Transport et logistique

Equipment trailer or flatbed required; machines at the upper power range exceed typical landscape trailer capacity
Ramps and winch typically necessary for loading given machine weight
Tow vehicle must meet trailer GVWR including machine and chain attachments

Alimentation

Gasoline or diesel fuel depending on engine size; higher-horsepower models typically diesel
On-site fuel storage necessary for extended trenching runs
Machines in this class generally run 4–8 hours on a tank under continuous digging load

Questions fréquentes

What differentiates a high-horsepower walk-behind from a ride-on trencher?

Walk-behinds in this class are operator-guided from behind, suited to intermittent work and tighter access. Ride-on machines offer seated operation for all-day production, faster ground speed, and better traction in challenging soil, but require wider access and larger transport.

Can these machines trench in rocky or compacted soil?

Effectiveness depends on engine power and chain type. Models at the lower power range handle soft to moderate soil; high-horsepower units with rock chains cut decomposed rock and compacted clay, though productivity drops significantly compared to a dedicated ride-on rock trencher.

How is trench depth adjusted during operation?

Depth is controlled by adjusting the machine's front guide wheel or skid height relative to the digging chain. Most machines offer incremental depth settings; operators reposition pins or adjust hydraulic controls between passes.
