10,000-15,000 lb Pneumatic Tire Forklift
The 10,000–15,000 lb pneumatic tire forklift is a mid-capacity class designed for steel bundles, precast concrete elements, and heavily loaded pallets that exceed the capacity of lighter machines. With load capacities ranging from 4,536 to 6,700 kg and lift heights between 9.8 and 19.8 ft, this size bridges yard handling and heavy material staging on construction and industrial sites. It sits between the 6,000–10,000 lb class for general-purpose outdoor work and the 15,000–25,000 lb class for large structural and manufacturing loads.
Cat classes
Pick a size class — capacity and reach differ across the range.
Key specifications
| Specification | Typical range | What it means |
|---|---|---|
| Load capacity | 10,000–15,000 lb (4,536–6,700 kg) | Maximum rated load at standard load center, typically 24 inches |
| Lift height | 9.8–19.8 ft (3.0–6.0 m) | Maximum fork elevation, varies by mast configuration (two-stage, three-stage, quad) |
| Tire type | Pneumatic | Air-filled tires for outdoor use on gravel, asphalt, and uneven surfaces |
| Power source | Diesel, LPG, or dual-fuel | Internal combustion engines common in this size for outdoor industrial applications |
How to choose
This size is appropriate when loads routinely exceed 8,000 lb or when handling steel bundles, heavy precast components, and dense pallet loads that smaller machines cannot safely lift. The 6,000–10,000 lb Pneumatic Tire Forklift is often sufficient for standard construction materials, lumber bundles, and lighter outdoor tasks, offering better maneuverability and lower operating cost. When loads approach or exceed 15,000 lb—such as large concrete forms, structural steel assemblies, or industrial machinery—the 15,000–25,000 lb Pneumatic Tire Forklift provides the necessary capacity and stability. This middle band balances lifting power with mobility for yards and staging areas where multi-ton loads are routine but extreme capacities are unnecessary.
What this size handles
- Moving steel I-beam bundles and structural steel packages at fabrication yards
- Placing precast concrete wall panels and architectural elements on flatbed trailers
- Staging heavy machinery crates and industrial equipment at manufacturing facilities
- Handling densely loaded pallets of roofing materials, masonry, or aggregates
- Loading and unloading shipping containers with concentrated cargo
- Transporting large HVAC units and mechanical equipment on construction sites
Safety & operation
- Operator certification required per OSHA 1910.178 for powered industrial truck operation
- Load center and capacity plate adherence critical; exceeding rated capacity causes tip-over risk
- Pneumatic tires require regular pressure checks to maintain stability and load distribution
- Overhead clearance and mast height must be confirmed before entering structures or under canopies
Transport & logistics
- Requires heavy-duty flatbed or equipment trailer, typically 14,000–20,000 lb GVWR minimum
- Loading via drive-on ramps or dock; some units require lowboy trailer depending on overall height
- Towing typically requires pickup truck rated for 15,000+ lb combined load or commercial tractor
Power & supply
- Diesel fuel or liquid propane (LPG) tanks, refilled on site or via portable fuel service
- Dual-fuel models switch between gasoline and LPG depending on availability and emissions requirements
- No external electrical infrastructure required; engines provide independent operation
Frequently asked
What distinguishes this class from a 6,000–10,000 lb forklift?
Can this size operate indoors?
What mast configurations are available in this capacity range?
Compare popular models
Find by spec →Normalised to the same units. A dash means the figure was not published.
| Model | Load capacity | Lift height | Engine power |
|---|---|---|---|
| EP Equipment CPCD50T9 | 11,023 lb (5,000 kg) | 9.8 ft (3.0 m) | - |
| Mitsubishi FD50CN3 | 11,023 lb (5,000 kg) | 10.8 ft (3.3 m) | - |
| Mitsubishi FD50N3 | 11,023 lb (5,000 kg) | 10.8 ft (3.3 m) | - |

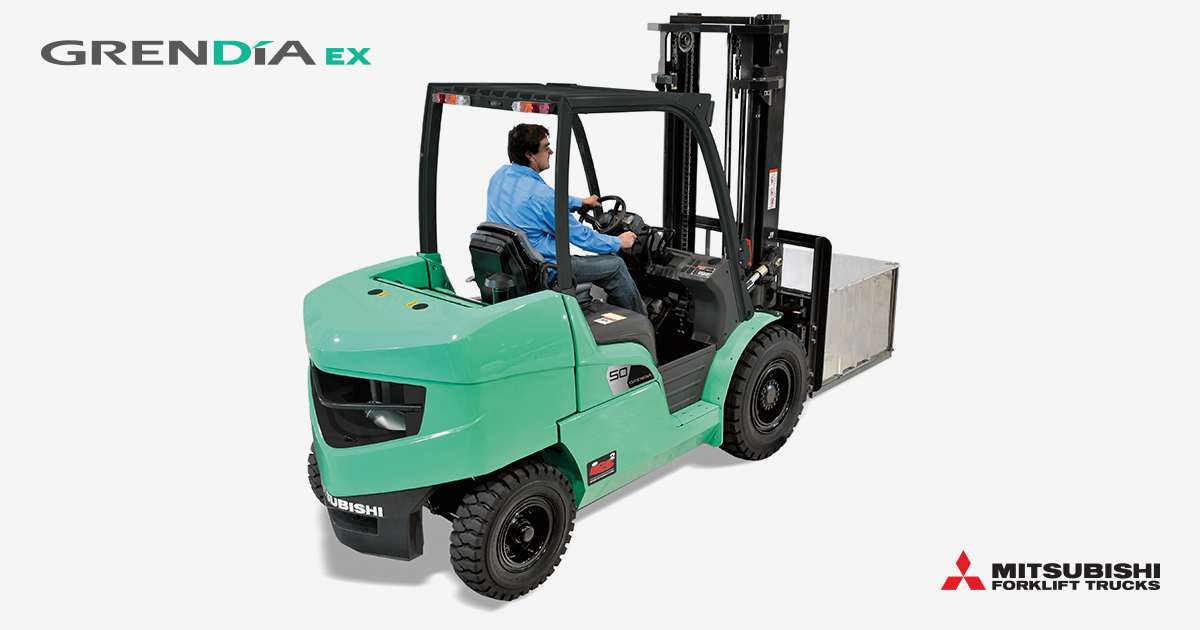

| Mitsubishi FD55N3 | 12,125 lb (5,500 kg) | 10.8 ft (3.3 m) | - |

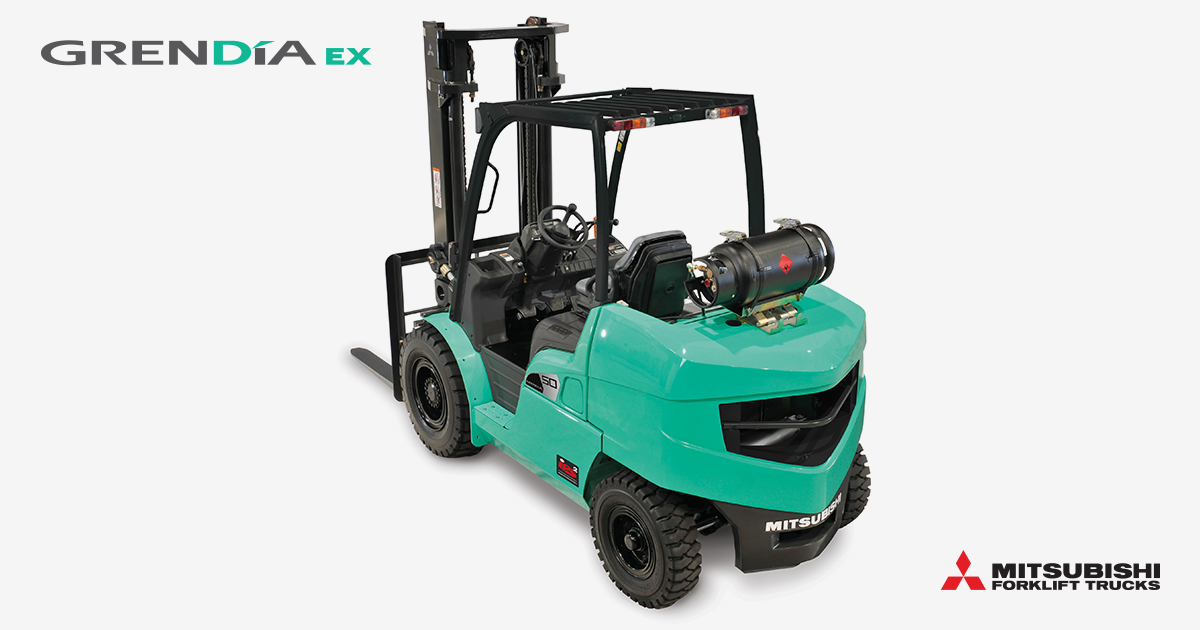

| Mitsubishi FG50CN3 | 11,023 lb (5,000 kg) | 10.8 ft (3.3 m) | - |
| Mitsubishi FG50N3 | 11,023 lb (5,000 kg) | 10.8 ft (3.3 m) | - |
