CAT CLASS: HQ-10328

36,000+ lb Pneumatic Tire Forklift

The 36,000+ lb pneumatic tire forklift class represents the heaviest-capacity forklifts in the industry, engineered for container handling and the most demanding industrial lifts. These machines range from 18,000 to 48,000 kg (approximately 40,000 to 106,000 lb) in load capacity, positioning them at the top rung of the pneumatic tire forklift ladder. Manufacturers in this class include Hyster, XCMG, Sennebogen, and Sany.

273

Models

Brands

Cat classes

Pick a size class — capacity and reach differ across the range.

Key specifications

Specification	Typical range	What it means
Load capacity	18,000–48,000 kg (40,000–106,000 lb)	Defines the maximum weight the forklift can safely lift and transport
Lift height	13 ft (4.0 m)	Maximum vertical reach for load placement; varies by model configuration
Tire type	Pneumatic	Air-filled tires provide traction and stability on outdoor surfaces and uneven ground

How to choose

This size class is appropriate when handling loaded shipping containers, extremely heavy machinery components, or industrial materials exceeding 36,000 lb. The 25,000-36,000 lb Pneumatic Tire Forklift is the better choice for heavy loads that fall below this threshold, offering greater maneuverability and lower operating costs for loads in the 25,000-36,000 lb range. Facilities handling standard intermodal containers, heavy steel coils, or industrial equipment in the 18-24 metric ton range typically require this 36,000+ lb class. The substantial size, weight, and operating expense of these machines make them appropriate only when load weight genuinely demands this capacity.

What this size handles

Loaded 20-foot and 40-foot shipping container handling at ports and intermodal facilities
Heavy steel coil placement in manufacturing plants and steel service centers
Oversized industrial machinery movement during plant installation and maintenance
Lumber package handling at sawmills and distribution yards with loads exceeding 20 tons
Heavy stone slab and block handling at quarries and fabrication facilities
Large casting and forging transport in foundries and heavy manufacturing operations

Safety & operation

Operator certification and specialized training are critical given the extreme loads and machine size
Ground bearing pressure and surface stability must be evaluated; these machines can exceed pavement or slab load ratings
Load center and stability calculations are essential; even minor load imbalance can create tip-over hazards at this capacity
Overhead clearance, aisle width, and turning radius must accommodate the substantial footprint of these machines

Transport & logistics

Requires heavy-duty lowboy or RGN (removable gooseneck) trailers due to extreme weight and dimensions
Transportation typically demands commercial CDL-rated towing vehicles and oversize/overweight permits
Loading and unloading generally require dock-height facilities or heavy-duty ramps due to machine weight

Power & supply

Diesel engines are standard in this weight class, providing the power output required for extreme-capacity lifting
Fuel consumption is substantially higher than lighter forklifts, with tanks sized for extended operation between refueling
Some models offer dual-fuel or alternative fuel configurations for facilities with emission restrictions

Frequently asked

What differentiates a 36,000+ lb forklift from a container handler?

While there is overlap in capacity, dedicated container handlers typically feature specialized spreader attachments and frame geometry optimized for intermodal containers, whereas heavy-capacity forklifts in this class use forks and are designed for general heavy-duty lifting across various industries.

How does lift capacity relate to the forklift's own weight?

Forklifts in this class typically weigh 1.5 to 2 times their rated capacity to provide the counterbalance necessary for stability. A 40,000 lb capacity machine may weigh 60,000-80,000 lb, requiring surface and transport planning accordingly.

Can pneumatic tire forklifts in this class operate indoors?

While possible, their diesel engines, emissions, size, and weight make them impractical for most enclosed spaces. Indoor applications at this capacity typically use electric-powered heavy forklifts or specialized equipment with emissions controls.

Compare popular models

Find by spec →

Normalised to the same units. A dash means the figure was not published.

Model	Load capacity	Lift height	Engine power
Sennebogen 724 G	55,116 lb (25,000 kg)	-	165 hp

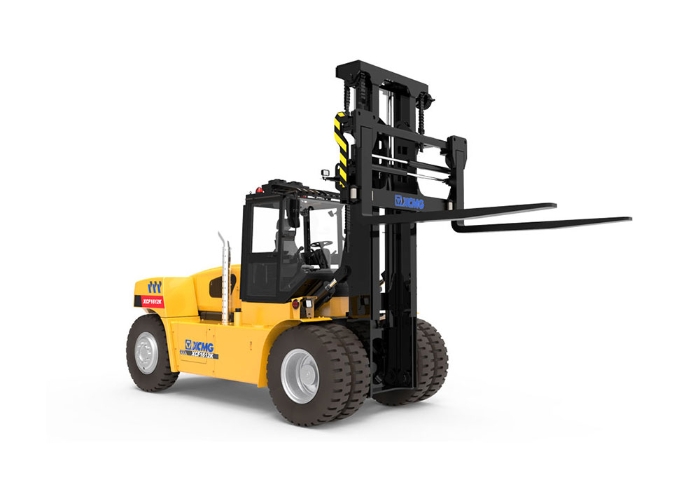

XCMG XCF1612K	52,911 lb (24,000 kg)	13.1 ft (4.0 m)	-

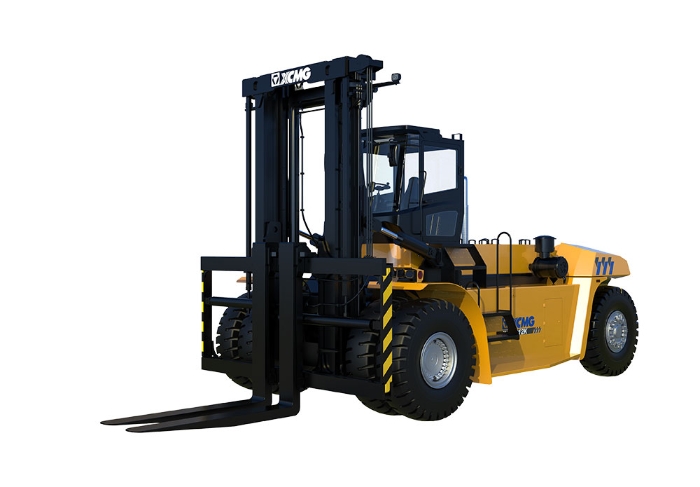

XCMG XCF4612K	101,413 lb (46,000 kg)	13.1 ft (4.0 m)	-
XCMG XCF3512K	77,162 lb (35,000 kg)	13.1 ft (4.0 m)	-

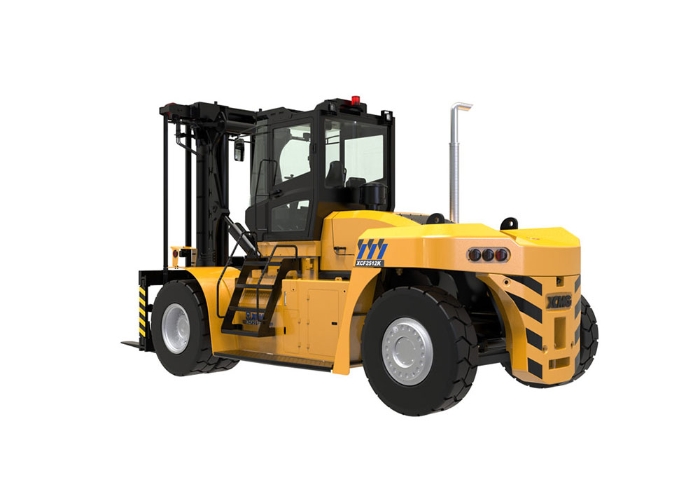

XCMG XCF2512K	55,116 lb (25,000 kg)	13.1 ft (4.0 m)	-
