40-60 ft Articulating Boom Lift
The 40-60 ft articulating boom lift is the most commonly specified size class for commercial and industrial exterior work, combining vertical reach with the ability to navigate up and over obstacles from a concrete slab or compacted surface. This mid-range band represents the majority of articulating boom fleet inventory, with 124 models from manufacturers including Genie, JLG, Haulotte, and Niftylift. Working heights range from 12.2 to 59.6 ft, with horizontal outreach extending 6.1 to 28.5 ft from the turntable.
639
Models
21
Brands
Cat classes
Pick a size class — capacity and reach differ across the range.
All sizes
639 models
Up to 40 ft
73 models
40-60 ft
139 models
60-80 ft
59 models
80-100 ft
25 models
100-135 ft
10 models
135+ ft
8 models
Other sizes
325 models
Key specifications
| Specification | Typical range | What it means |
|---|---|---|
| Working height | 46–52 ft (14.0–15.8 m) | Maximum platform height plus standard guardrail reach; defines the topmost work zone accessible to operators. |
| Max horizontal reach | 22–26 ft (6.7–7.9 m) | Furthest horizontal distance the platform can extend from the base, critical for clearing roof edges and obstacles. |
| Platform capacity | 500 lb (227 kg) | Combined weight limit for operators, tools, and materials; most models in this band support two workers with light equipment. |
| Operating weight | 14,000–16,000 lb (6,350–7,250 kg) | Machine weight affects surface load requirements and trailer capacity for transport. |
| Engine power | 48–63 hp | Diesel or bi-fuel engines in this range provide hydraulic power for boom articulation, drive, and auxiliary functions. |
How to choose
The 40-60 ft articulating boom lift is appropriate when work requires reaching over parked vehicles, landscaping, or building setbacks on firm ground, and when horizontal outreach beyond 20 ft is necessary. Exterior cladding, facade inspection, signage installation, and second-story mechanical work are typical applications. For tasks below 40 ft working height with minimal obstacle clearance needs, the Up to 40 ft Articulating Boom Lift offers better maneuverability and lower operating weight. When working height exceeds 55 ft or horizontal reach beyond 26 ft is required—such as third-story work or deep building setbacks—the 60-80 ft Articulating Boom Lift becomes necessary despite increased weight and transport complexity.
What this size handles
- Two-story commercial building facade repair and window installation
- Exterior lighting and signage mounting on retail centers with landscaped perimeters
- HVAC service access to rooftop units on single-story industrial buildings
- Masonry and tuckpointing on mid-rise structures with parked vehicle or loading dock obstacles
- Tree trimming and utility line clearance over paved surfaces
- Soffit, fascia, and gutter installation on commercial construction sites with established grades
Safety & operation
- Ground conditions must support 14,000–16,000 lb concentrated loads; asphalt in summer heat and uncompacted fill present sinking hazards
- Slope operation typically limited to 25–40% gradeability depending on model; always position base perpendicular to slope before elevating
- Turntable rotation of 350–360 degrees requires continuous awareness of tail swing and rear counterweight clearance, especially near walls and vehicles
- Wind speed limits—commonly 28 mph for operation—apply to the elevated platform; larger surface area in this size class increases wind loading compared to smaller units
Transport & logistics
- Dual-axle trailer or flatbed rated for 16,000–18,000 lb; most units in this band exceed single-axle trailer capacity
- Towing requires 3/4-ton or 1-ton pickup with appropriate hitch rating; commercial transport typically uses medium-duty trucks
- Loading involves drive-on/drive-off via trailer ramps; boom must be fully stowed and turret centered to meet road-legal width limits
Power & supply
- Diesel engines are standard; fuel tank capacities of 15–30 gallons support 8–12 hours of intermittent operation
- Bi-fuel (propane/gasoline) and diesel-electric hybrid models available for indoor/outdoor transition work and emission-sensitive sites
- No external electrical connection required; all hydraulic and drive functions powered by onboard engine and battery system
Frequently asked
What separates a 40-60 ft articulating boom from a telescopic boom of similar height?
Articulating booms use multiple hinged sections to navigate up and over obstacles with greater horizontal reach at mid-height positions, while telescopic booms extend in a straighter line with less up-and-over capability but often greater maximum outreach. The articulating design trades some outreach for obstacle clearance in congested sites.
Can this size class operate on gravel or dirt sites?
Most 40-60 ft articulating booms require firm, level surfaces—compacted gravel or well-graded dirt may be acceptable if load-bearing capacity supports 14,000+ lb without rutting. Soft soil, mud, or loose aggregate typically requires ground protection mats or a rough-terrain model with larger tires and higher ground clearance.
How does platform capacity affect the number of operators?
Platform capacities of 500 lb (227 kg) accommodate two operators at approximately 200 lb each plus 100 lb of tools and materials. Single-operator use allows heavier tool loads; exceeding rated capacity compromises stability and is prohibited by manufacturers and safety standards.
Compare popular models
Find by spec →Normalised to the same units. A dash means the figure was not published.
| Model | Working height | Platform capacity |
|---|---|---|
| JLG E450AJ | 45 ft (13.7 m) | 500 lb (227 kg) |
| JLG 450AJ HC3 | 45 ft (13.7 m) | 1,001 lb (454 kg) |
| Niftylift TM50 | 49 ft (14.9 m) | 441 lb (200 kg) |
| Haulotte HA16 RTJ | 52.5 ft (16.0 m) | 507 lb (230 kg) |
| Haulotte HA16 RTJ O | 52.5 ft (16.0 m) | 507 lb (230 kg) |
| Haulotte HA16 RTJ PRO | 52.5 ft (16.0 m) | 507 lb (230 kg) |
Related equipment
Up to 40 ft Articulating Boom Lift 7360-80 ft Articulating Boom Lift 5980-100 ft Articulating Boom Lift 25100-135 ft Articulating Boom Lift 10135+ ft Articulating Boom Lift 8
Browse by manufacturer
Sources
Every specification is verified against the manufacturer's published data, with the source linked for reference.
40-60 ft Articulating Boom Lift
139 models · Page 2 of 3 · Every spec cited to source
Genie 23N-Z-40
47 ft (14.3 m)
15,230 lb (6,908 kg)
→
Genie Z-40
47 ft (14.3 m)
15,230 lb (6,908 kg)
→
Genie Z-40-23N
47 ft (14.3 m)
15,230 lb (6,908 kg)
→
Genie Z-40-23N-RJ
47 ft (14.3 m)
15,300 lb (6,940 kg)
→
Genie Z-40N
47 ft (14.3 m)
15,230 lb (6,908 kg)
→
Versalift VO-42
47.3 ft (14.4 m)
399 lb (181 kg)
→
Tadano AS-42C
47.6 ft (14.5 m)
→
Tadano AS-42CJ
47.9 ft (14.6 m)
→
JCB AJ48D
48 ft (14.6 m)
→
Teupen LEO15GT
48.2 ft (14.7 m)
441 lb (200 kg)
→
Niftylift TM50
49 ft (14.9 m)
4,760 lb (2,159 kg)
441 lb (200 kg)
→
Niftylift HR15NDE
49.2 ft (working_height)
→
Genie 4390
49.6 ft (15.1 m)
12,895 lb (5,849 kg)
→
Genie 4390RT
49.6 ft (15.1 m)
12,895 lb (5,849 kg)
→
Genie Z-50
50 ft (platform_height)
→
Genie Z-50-DS
50 ft (platform_height)
→
Genie Z-50-R
50 ft (platform_height)
→
Niftylift HR15N
50.5 ft (15.4 m)
14,727 lb (6,680 kg)
496 lb (225 kg)
→
Dingli BA15NE
50.9 ft (15.5 m)
16,711 lb (7,580 kg)
→
Genie Z-45-IC
50.9 ft (15.5 m)
13,860 lb (6,287 kg)
→
Niftylift IS-102
50.9 ft (15.5 m)
15,984 lb (7,250 kg)
→
Genie Z-45MP
51 ft (15.5 m)
13,651 lb (6,192 kg)
→

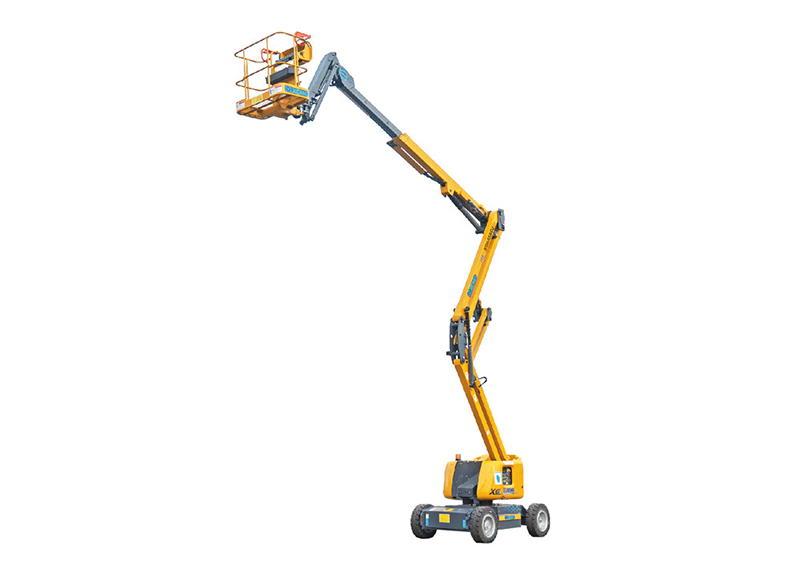

XCMG XGA45ACJ-ANSI
51 ft (15.5 m)
500 lb (227 kg)
→
Genie Z51
51 ft (platform_height)
→
JLG 510AJ
51 ft (platform_height)
507 lb (230 kg)
→
Niftylift HR15 4x4
51.2 ft (15.6 m)
9,921 lb (4,500 kg)
496 lb (225 kg)
→
Niftylift HR15
51.2 ft (15.6 m)
→
Niftylift HR15E
51.5 ft (15.7 m)
10,318 lb (4,680 kg)
496 lb (225 kg)
→
Haulotte HLA16 PX
51.5 ft (15.7 m)
5,280 lb (2,395 kg)
500 lb (227 kg)
→
Skyjack SJ45 AJ+
51.6 ft (15.7 m)
11,188 lb (5,075 kg)
→

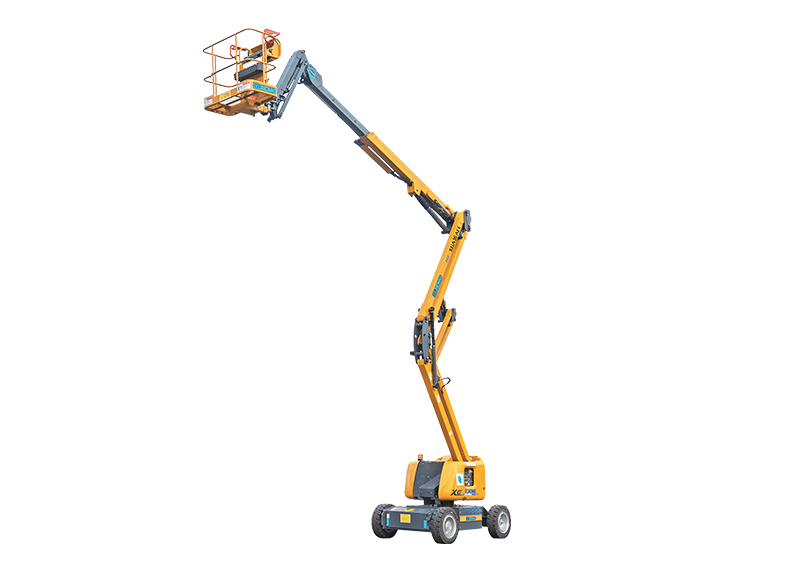

XCMG XGA16ACE-AS
51.8 ft (15.8 m)
500 lb (227 kg)
→
Snorkel A46JE
52 ft (15.8 m)
14,689 lb (6,663 kg)
500 lb (227 kg)
→
JCB A45E
52 ft (15.8 m)
659 lb (299 kg)
→
Genie Z-45
52 ft (15.8 m)
14,363 lb (6,515 kg)
→
Genie Z-45-HF
52 ft (15.8 m)
16,050 lb (7,280 kg)
→
Genie Z-45-XC
52 ft (15.8 m)
16,361 lb (7,421 kg)
→
Genie Z-45RT
52 ft (15.8 m)
14,363 lb (6,515 kg)
→
Genie Z-45/25 RT & Z-45/25J RT
52.1 ft (15.9 m)
14,941 lb (6,777 kg)
500 lb (227 kg)
→
Genie Z-4525DCBI
52.1 ft (15.9 m)
14,941 lb (6,777 kg)
→
Genie Z-4525DCBIE
52.1 ft (15.9 m)
14,941 lb (6,777 kg)
→
Genie Z-45-25J-DC
52.2 ft (15.9 m)
15,139 lb (6,867 kg)
→
Genie Z-45-FE
52.2 ft (15.9 m)
14,460 lb (6,559 kg)
→
Genie Z-45DC
52.2 ft (15.9 m)
14,063 lb (6,379 kg)
→
Skyjack SJ-46A
52.3 ft (15.9 m)
13,300 lb (6,033 kg)
→
Skyjack SJ-46AJ
52.3 ft (15.9 m)
13,300 lb (6,033 kg)
→
Genie 25J
52.3 ft (15.9 m)
16,314 lb (7,400 kg)
→
Genie Z-4525
52.3 ft (15.9 m)
16,314 lb (7,400 kg)
→
Genie Z45-25
52.3 ft (15.9 m)
16,314 lb (7,400 kg)
→
