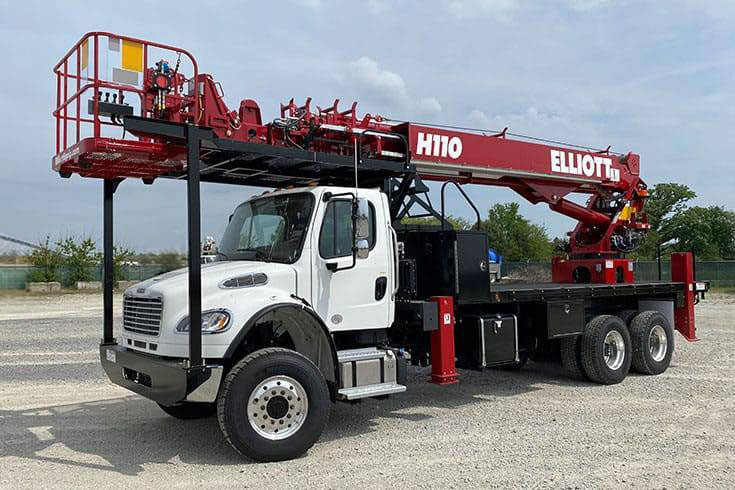

Elliott
H110R HiReach
500 lb (227 kg)
Platform capacity
115 ft (35.1 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Snorkel TB120 | 96% | 500 lb (227 kg) | 126 ft (38.4 m) |
| Snorkel TB126J | 94% | 500 lb (227 kg) | 132 ft (40.2 m) |
| Haulotte HT43 RTJ PRO | 91% | 507 lb (230 kg) | 138 ft (42.2 m) |
| XCMG XGS43 | 90% | 507 lb (230 kg) | 142 ft (43.3 m) |
| Haulotte HT28 RTJ O | 89% | 507 lb (230 kg) | 91.5 ft (27.9 m) |
| Haulotte HT28 RTJ PRO | 89% | 507 lb (230 kg) | 91.5 ft (27.9 m) |
Documents
Full specifications
| Boom Sections | 5 | ↗ |
| Jib Winch Capacity | 500 lb (227 kg) | ↗ |
| Main Winch Capacity | 14,000 lb (6,350 kg) | ↗ |
| Outrigger Spread Front | 18 ft (5.5 m) | ↗ |
| Outrigger Spread Rear | 22.5 ft (6.9 m) | ↗ |
| Outrigger Type | Out-Down | ↗ |
| Overall Height | 13.4 ft (4.1 m) | ↗ |
| Platform Capacity | 500 lb (227 kg) | ↗ |
| Platform Size | 40x60 in | ↗ |
| Platform Type | EZR-Removable | ↗ |
| Recommended Cab to Axle | 192 in (488 cm) | ↗ |
| Recommended GVWR | 56,000 lb (25,401 kg) | ↗ |
| Unit Weight (Bare) | 27,500 lb (12,474 kg) | ↗ |
| Working Height | 115 ft (35.1 m) | ↗ |
| Working Side Reach | 86 ft (26.2 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
