Genie

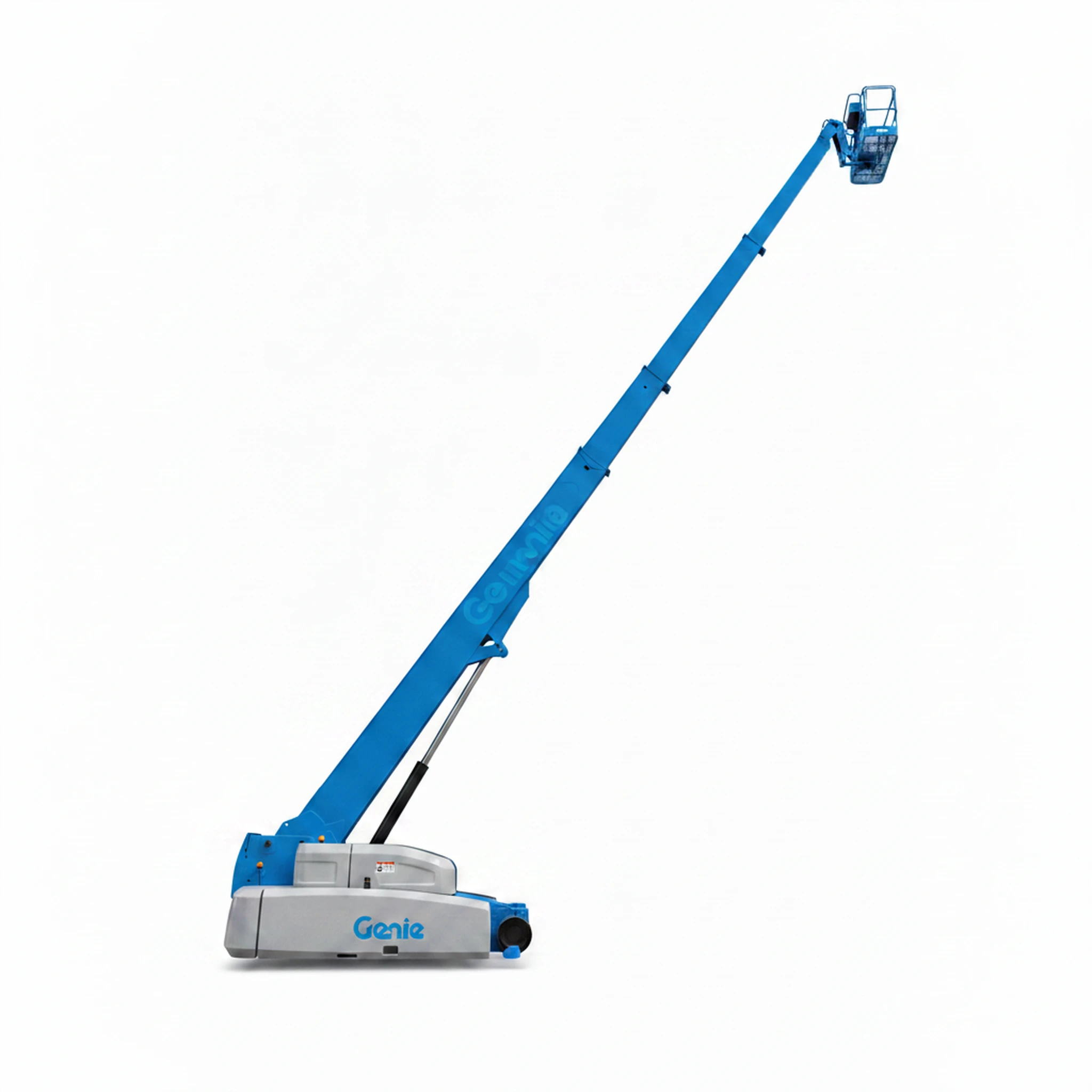

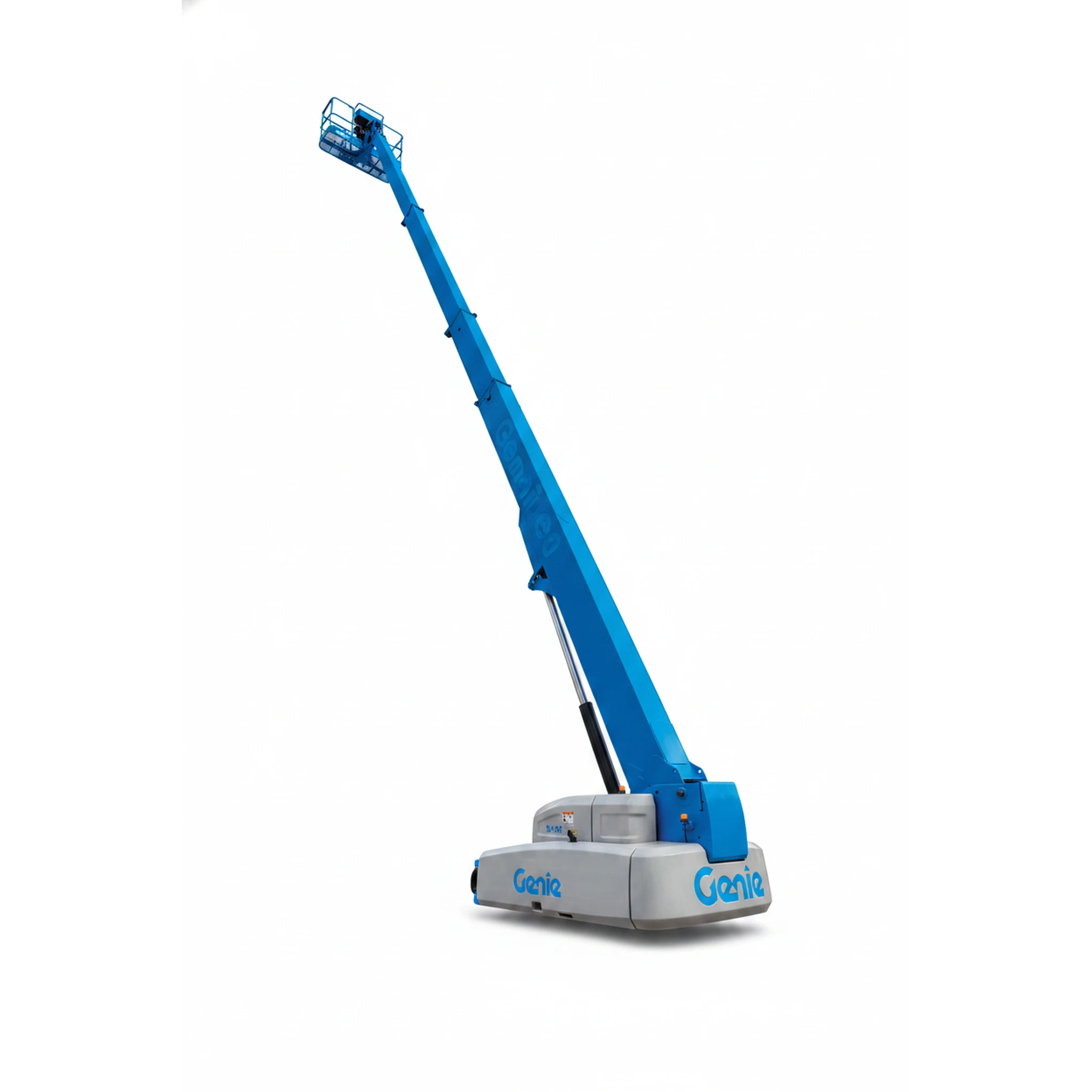

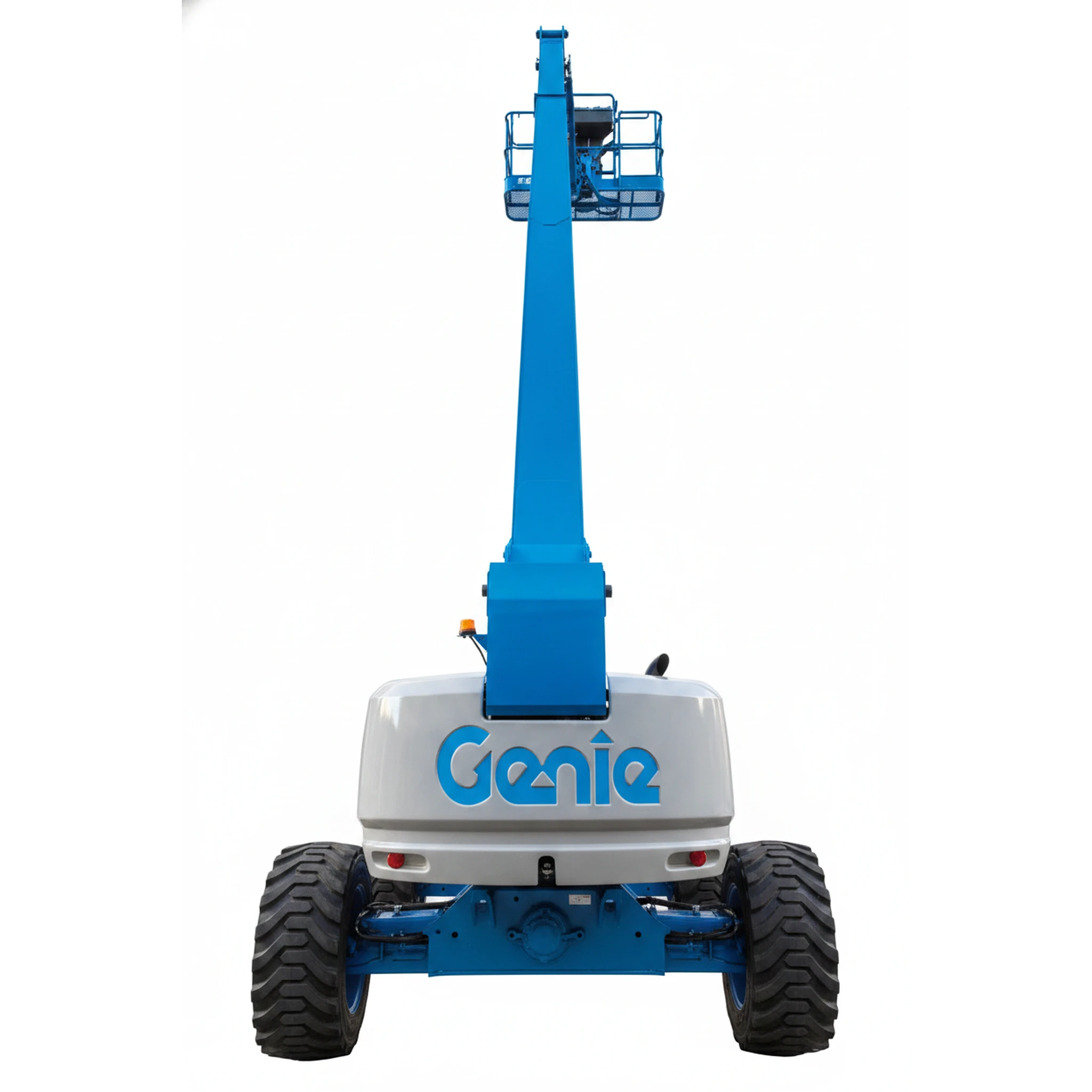

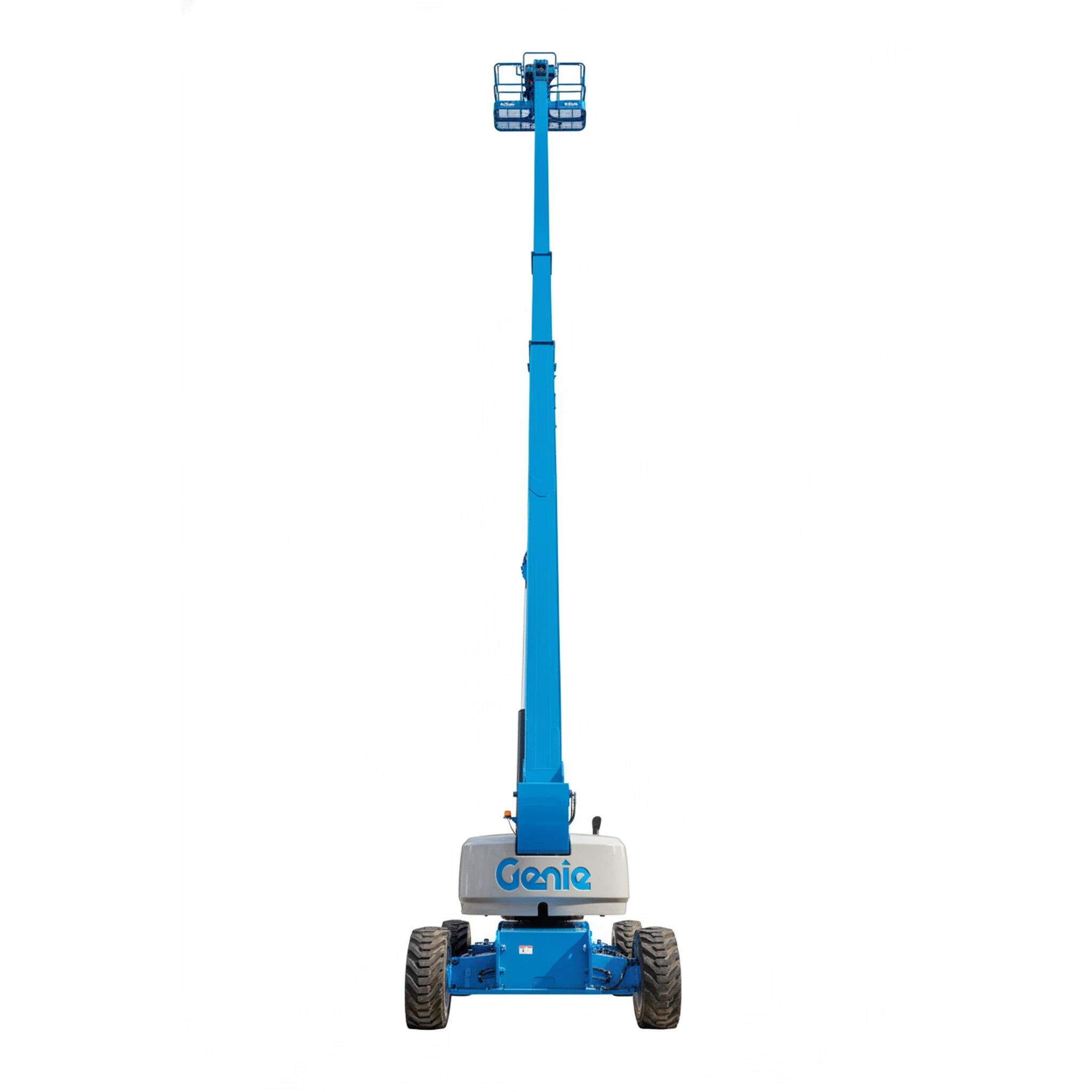

SX-180 Telescopic Boom Lift
74 hp
Engine power
80 ft (24.4 m)
Max reach
55,001 lb (24,948 kg)
Operating weight
750 lb (340 kg)
Platform capacity
186 ft (56.7 m)
Working height
4 x4
drive type
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| JLG 150HAX | 90% | 76 hp | 79.3 ft (24.2 m) | 58,101 lb (26,354 kg) |
| XCMG XGS158J-ANSI | 88% | - | - | - |
| JLG 1850SJ | 87% | 100 hp | - | 59,900 lb (27,170 kg) |
| Haulotte HT43 RTJ PRO | 82% | 74 hp | - | 47,179 lb (21,400 kg) |
| JLG 1500SJ | 82% | 74 hp | 82.1 ft (25.0 m) | 48,502 lb (22,000 kg) |
| JLG 1350SJP | 80% | 75 hp | 82.1 ft (25.0 m) | 44,974 lb (20,400 kg) |
Documents
Full specifications
| Below Ground Reach | 2 ft (0.6 m) | ↗ |
| Jib Horizontal Articulation | 60 ° | ↗ |
| Jib Vertical Articulation | 135 ° | ↗ |
| Machine Length | 47 ft (14.3 m) | ↗ |
| Machine Width | 16 ft 6 in | ↗ |
| Max Horizontal Reach | 80 ft (24.4 m) | ↗ |
| Max Working Height | 186 ft (56.7 m) | ↗ |
| Platform Capacity | 750 lb (340 kg) | ↗ |
| Platform Length | 8 ft (2.4 m) | ↗ |
| Rotating Jib Length | 10 ft (3.0 m) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
