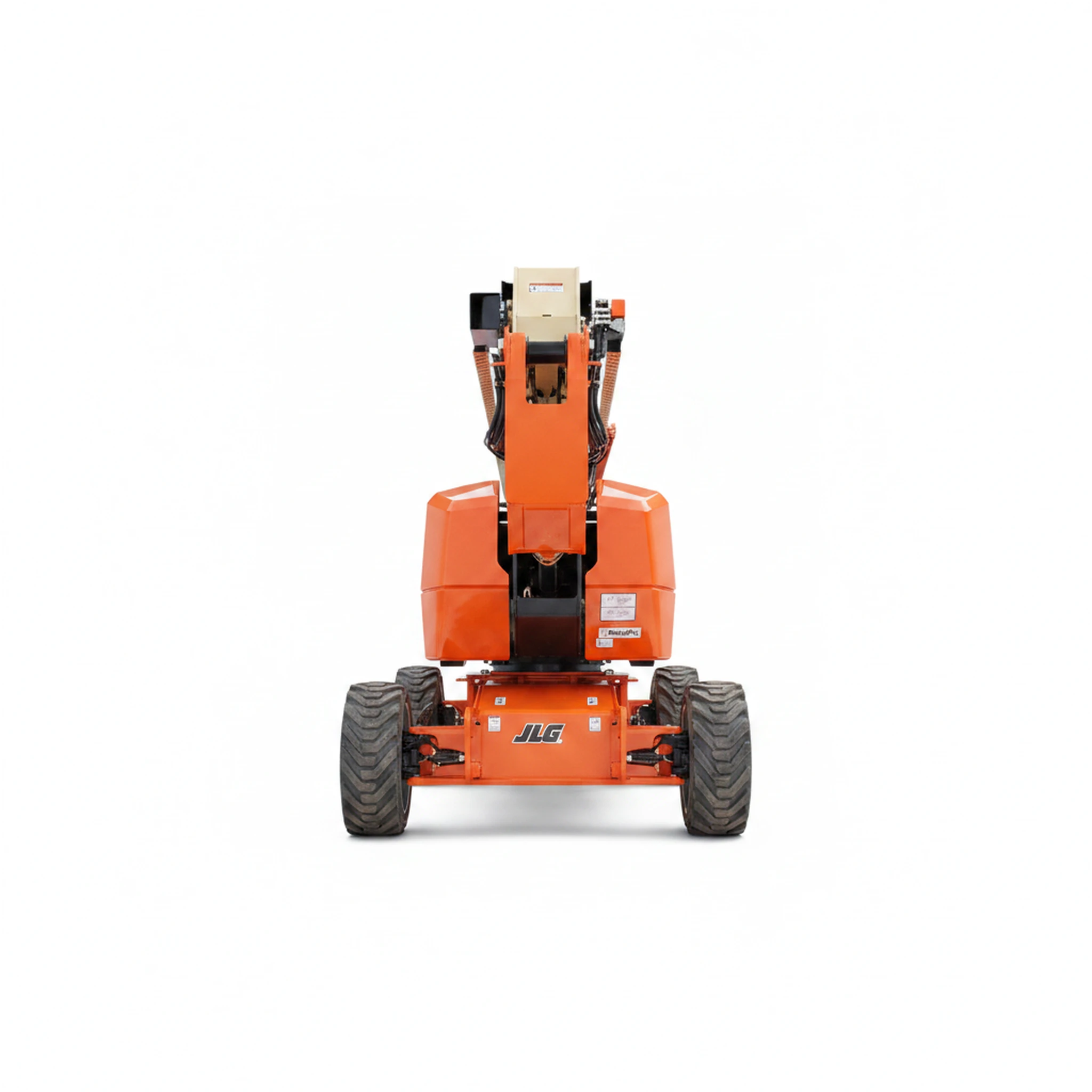

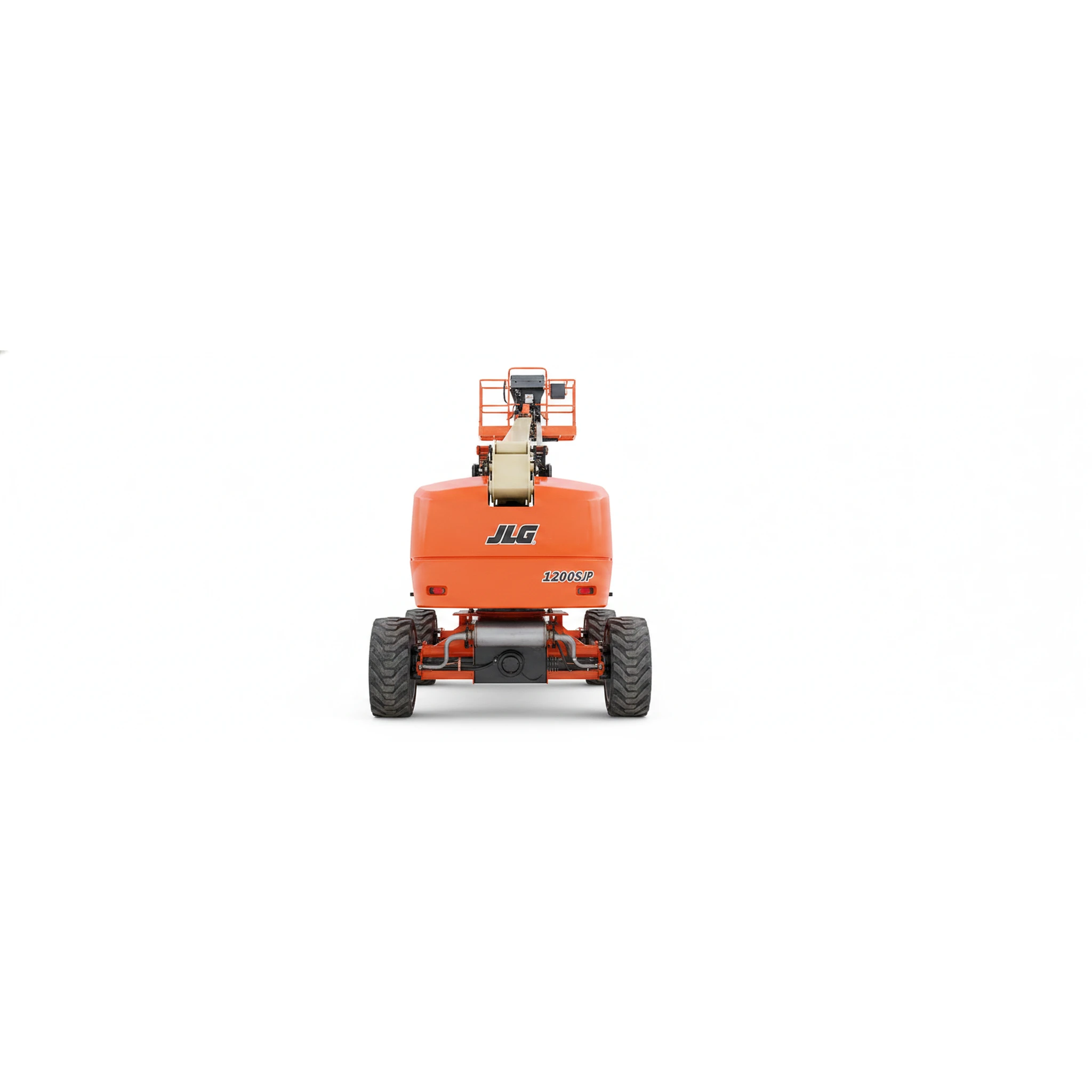

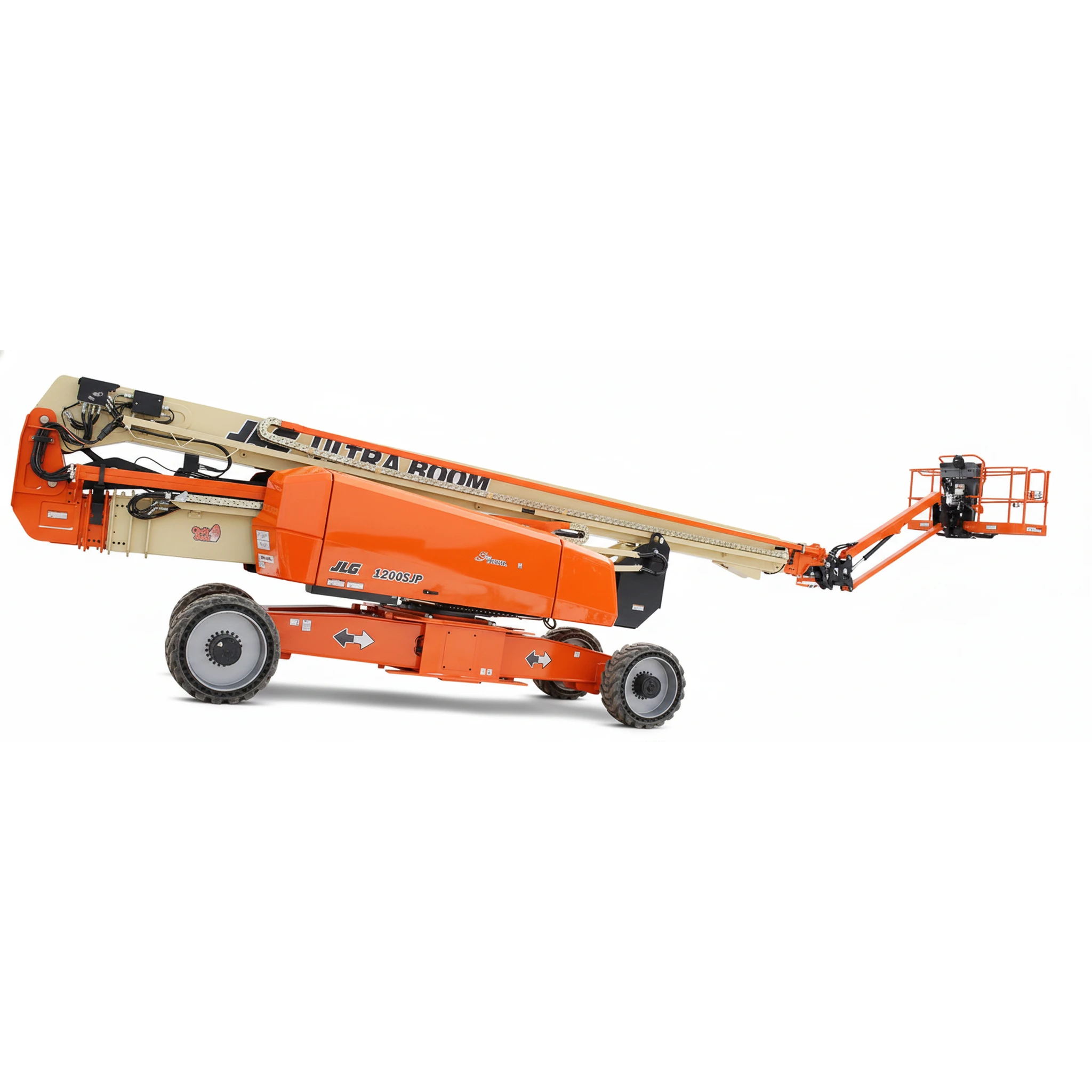

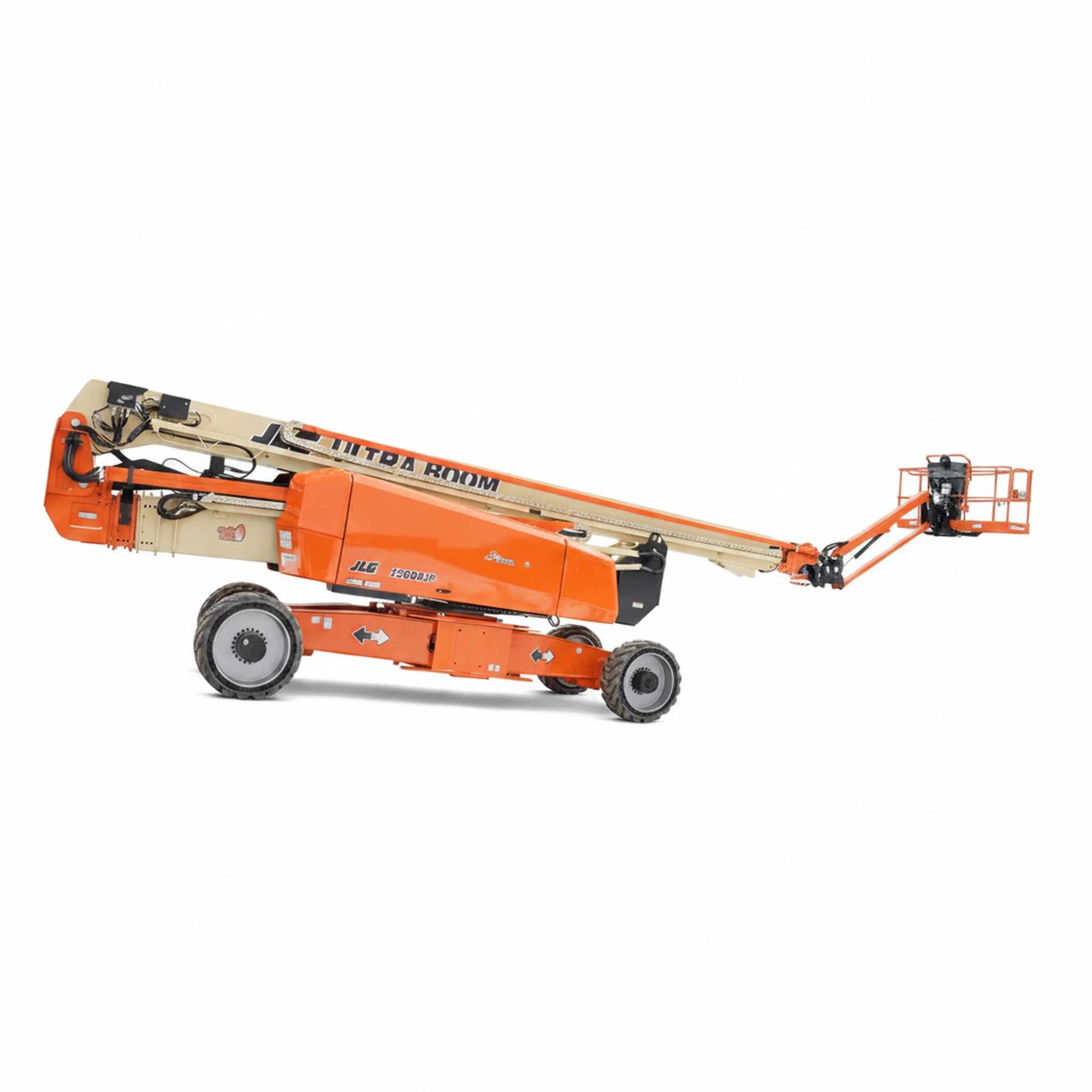

JLG
1200SJP
75 hp
Engine power
77.1 ft (23.5 m)
Max reach
40,786 lb (18,500 kg)
Operating weight
120 ft (36.7 m)
Working height
5.2 km/h
drive speed
117 L
fuel tank capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| Haulotte HT28 RTJ O | 99% | 74 hp | - | 39,463 lb (17,900 kg) |
| Haulotte HT28 RTJ PRO | 99% | 74 hp | 78.2 ft (23.8 m) | 39,904 lb (18,100 kg) |
| Genie S-85 XC | 98% | 74 hp | 74.5 ft (22.7 m) | 39,500 lb (17,917 kg) |
| Genie S-80 XC | 94% | 74 hp | - | 37,000 lb (16,783 kg) |
| Haulotte HT43 RTJ PRO | 94% | 74 hp | - | 47,179 lb (21,400 kg) |
| Snorkel TB126J | 92% | 65 hp | - | 41,800 lb (18,960 kg) |
Documents
Full specifications
| Axle Oscillation | 12 in (30.5 cm) | ↗ |
| Gradeability | 45% | ↗ |
| Horizontal Outreach | 75 ft (22.9 m) | ↗ |
| Max Platform Capacity | 1,000 lb (454 kg) | ↗ |
| Max Platform Height | 120 ft 6 in | ↗ |
| Swing | 360 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
