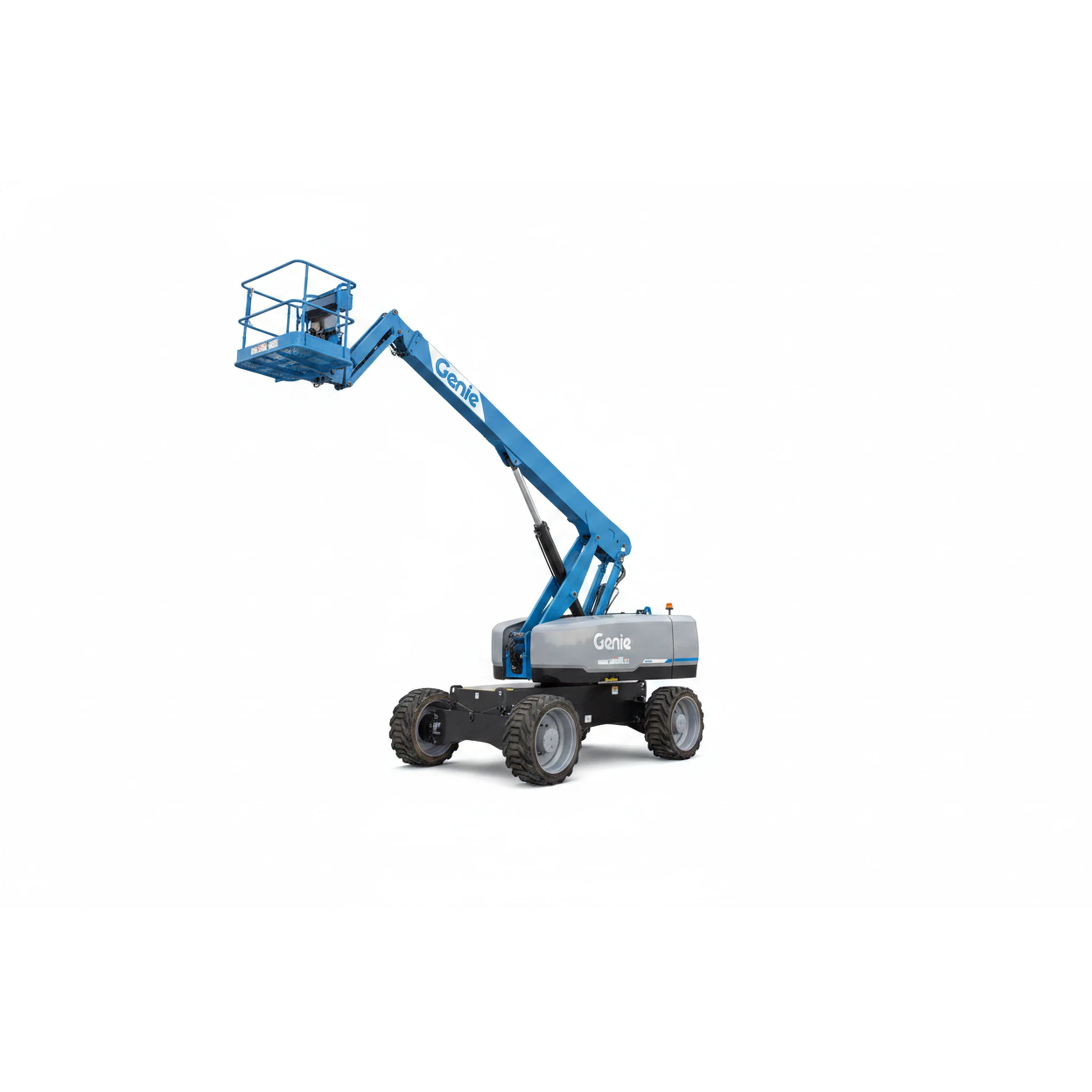

Genie
S-85 XC
74 hp
Engine power
74.5 ft (22.7 m)
Max reach
39,500 lb (17,917 kg)
Operating weight
1,455 lb (660 kg)
Platform capacity
91.6 ft (27.9 m)
Working height
1,001 lb (454 kg)
lift capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| Skyjack SJ-8286T | 95% | 74 hp | 76.8 ft (23.4 m) | 38,691 lb (17,550 kg) |
| Skyjack SJ86 T | 94% | 74 hp | - | 38,691 lb (17,550 kg) |
| JLG 1200SJP | 89% | 75 hp | 77.1 ft (23.5 m) | 40,786 lb (18,500 kg) |
| Snorkel TB86J | 89% | 65 hp | - | 39,930 lb (18,112 kg) |
| Skyjack SJ86 | 89% | 74 hp | - | 38,691 lb (17,550 kg) |
| Snorkel 660SJ All Terrain | 88% | 74 hp | - | 28,660 lb (13,000 kg) |
Documents
Full specifications
| Drive speed - stowed | 4.5 mph / 7.2 km/h | ↗ |
| Gradeability - stowed | 40 % | ↗ |
| Horizontal reach max. | 74 ft 6 in / 22.71 m | ↗ |
| Lift capacity max. - restricted | 1,000 lb / 454 kg | ↗ |
| Lift capacity max. - unrestricted | 660 lb / 300 kg | ↗ |
| Platform height max. | 85 ft / 25.91 m | ↗ |
| Working height max. | 91 ft / 27.91 m | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
