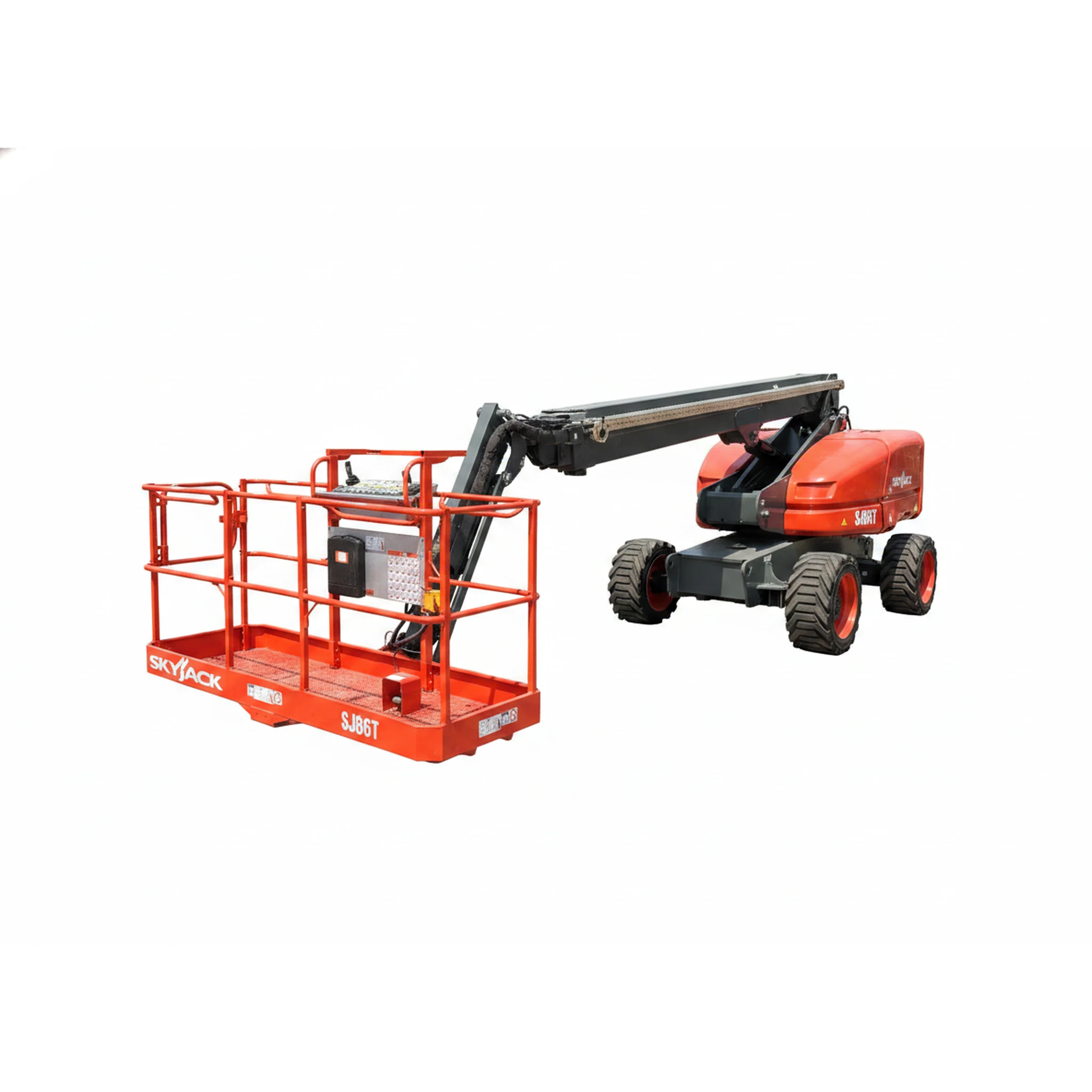

Skyjack
SJ86 T
74 hp
Engine power
38,691 lb (17,550 kg)
Operating weight
92.6 ft (28.2 m)
Working height
170 L
fuel tank capacity
45%
gradeability
76.8 ft (23.4 m)
horizontal reach
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight | Working height |
|---|---|---|---|---|
| Genie S-85 XC | 99% | 74 hp | 39,500 lb (17,917 kg) | - |
| Snorkel TB86J | 94% | 65 hp | 38,689 lb (17,549 kg) | - |
| Haulotte HT28 RTJ O | 93% | 74 hp | 39,463 lb (17,900 kg) | - |
| Haulotte HT28 RTJ PRO | 93% | 74 hp | 39,904 lb (18,100 kg) | - |
| Genie S-85-HF | 92% | - | 38,001 lb (17,237 kg) | 91.6 ft (27.9 m) |
| Genie S-80 XC | 91% | 74 hp | 37,000 lb (16,783 kg) | - |
Documents
Full specifications
| Capacity | 500 lbs (227 kg) / 750 lbs / (341 kg) | ↗ |
| Diesel Engine | 74 HP | ↗ |
| Drive Speed (Stowed) | 3 mph | ↗ |
| Fuel Tank | 45 gallon | ↗ |
| Gradeability | 45% | ↗ |
| Hydraulic Reservoir | 60 gallon | ↗ |
| Local Floor Load (With Rated Load) | 175 psi | ↗ |
| Maximum # of Persons | 2/3 | ↗ |
| Platform Rotation | 170° | ↗ |
| Rotation | 360° Continuous | ↗ |
| Tire Size | 18-625 | ↗ |
| Tire Type | Foam Filled | ↗ |
| Transportation Length | 34.7 ft (10.6 m) | ↗ |
| Wind Rating | 28 mph | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
