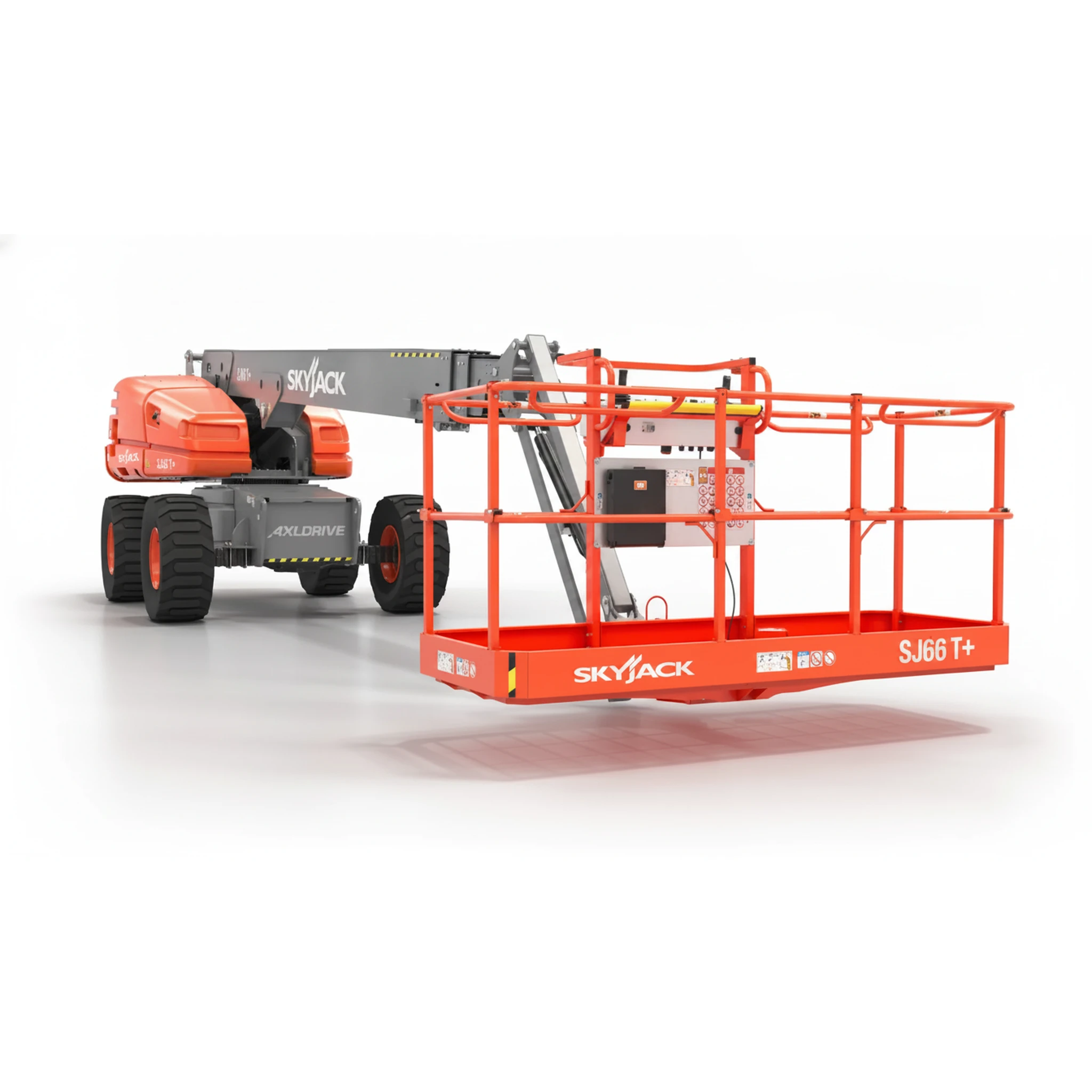

Skyjack
SJ66 T+
65 hp
Engine power
57.1 ft (17.4 m)
Max reach
28,903 lb (13,110 kg)
Operating weight
72.5 ft (22.1 m)
Working height
7.2 km/u
drive speed stowed
500 lb (227 kg)
lift capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Max reach | Operating weight |
|---|---|---|---|---|
| JLG 660SJ | 96% | 67 hp | 59.2 ft (18.0 m) | 29,339 lb (13,308 kg) |
| Snorkel 660SJ | 95% | 74 hp | 58.1 ft (17.7 m) | 28,620 lb (12,982 kg) |
| Genie S-65-HF | 94% | - | - | 24,454 lb (11,092 kg) |
| Snorkel 600S All Terrain | 93% | 74 hp | 52.5 ft (16.0 m) | 28,720 lb (13,027 kg) |
| Genie S-65TRAX | 93% | 60 hp | 54.2 ft (16.5 m) | 29,000 lb (13,154 kg) |
| Haulotte HT23 RTJ O | 92% | 50 hp | 60 ft (18.3 m) | 29,542 lb (13,400 kg) |
Documents
Full specifications
| Capacity | 660 / 1000 lbs (300 / 454 kg) | ↗ |
| Diesel Engine | Deutz TD2.9L - 74 HP (55 KW) | ↗ |
| Drive Speed (High speed) | 4.5 mph (7.2 km/h) | ↗ |
| Dual Fuel Engine | Kubota WG2503 - 61 HP (45 KW) | ↗ |
| Fuel Tank | 45 gal. (170 L) | ↗ |
| Gradeability | 50% | ↗ |
| Hydraulic Reservoir | 60 gal. (227 L) | ↗ |
| Jib Range | +65° / -60° | ↗ |
| Maximum # of Persons | 2 / 3 | ↗ |
| Platform Rotation | 170° | ↗ |
| Rotation | 360° Continuous | ↗ |
| Tire Size | 15 x 19.5 | ↗ |
| Tire Type | Foam-Filled | ↗ |
| Wind Rating | 28 mph (12.5 m/s) | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
