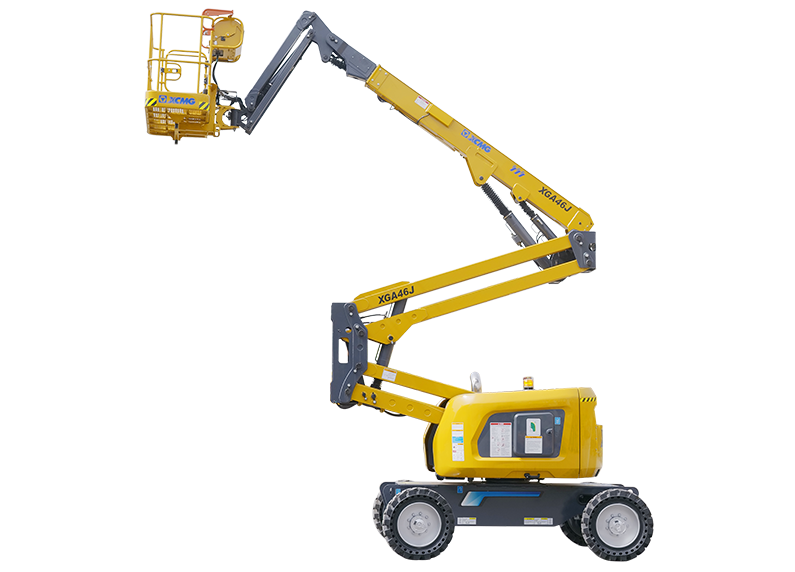

XCMG
XGA46J-ANSI
498 lb (226 kg)
Platform capacity
54 ft (16.5 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Snorkel A46JRT | 99% | 500 lb (227 kg) | 52.9 ft (16.1 m) |
| Haulotte HA16 RTJ | 98% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte HA16 RTJ O | 98% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte HA16 RTJ PRO | 98% | 507 lb (230 kg) | 52.5 ft (16.0 m) |
| Haulotte SIGMA16 | 98% | 507 lb (230 kg) | 52.8 ft (16.1 m) |
| Niftylift HR17 4x4 | 98% | 496 lb (225 kg) | 55.8 ft (17.0 m) |
Documents
Full specifications
| 1st boom luffing range | 0~65 ° | ↗ |
| 2nd boom luffing range | -11~75 ° | ↗ |
| Max. Grade Ability | 45 % | ↗ |
| Max. Load Capacity | 498(unrestricted)/705(restricted) lbs | ↗ |
| Max. Platform Height | 48' ft | ↗ |
| Max. Travel Speed | 3.4 mph | ↗ |
| Max. Working Height | 54'7" ft | ↗ |
| Max. Working Range | 28'11" ft | ↗ |
| Rotation Angle of Turntable | 355 ° | ↗ |
| Total Weight | 16,755 lbs (7,600 kg) | ↗ |
| Wheel Base | 7'9" ft | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
