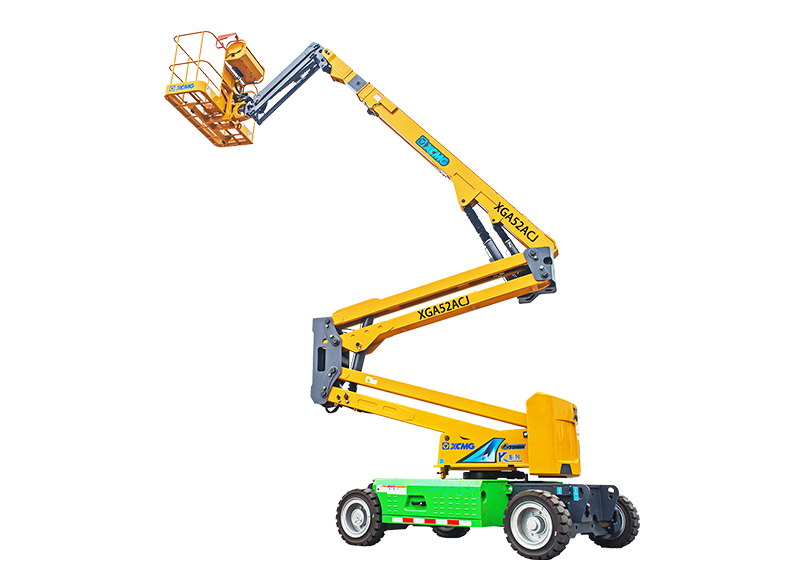

XCMG
XGA52ACJ-ANSI
564 lb (256 kg)
Platform capacity
59 ft (18.0 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| JLG 520AJ | 99% | 551 lb (250 kg) | 59.1 ft (18.0 m) |
| JLG 600AJ | 94% | 500 lb (227 kg) | 60 ft (18.3 m) |
| Haulotte HA20 E | 93% | 551 lb (250 kg) | 67.3 ft (20.5 m) |
| Haulotte HA20 E PRO | 93% | 551 lb (250 kg) | 67.3 ft (20.5 m) |
| Versalift VST-5000/5500/6000 Series | 93% | 624 lb (283 kg) | 56.1 ft (17.1 m) |
| Genie Z-51/30J RT | 93% | 500 lb (227 kg) | 57.7 ft (17.6 m) |
Full specifications
| 1st boom luffing range | 0~65 ° | ↗ |
| 2nd boom luffing range | -11~75 ° | ↗ |
| Max. Grade Ability | 30 % | ↗ |
| Max. Load Capacity | 564(unrestricted)/771(restricted) lbs | ↗ |
| Max. Platform Height | 52'6'' ft | ↗ |
| Max. Travel Speed | 2.98 mph | ↗ |
| Max. Working Height | 59' ft | ↗ |
| Max. Working Range | 33'2'' ft | ↗ |
| Rotation Angle of Turntable | 355 ° | ↗ |
| Total Weight | 18,960 lbs (8,600 kg) | ↗ |
| Wheel Base | 7'9'' ft | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
