Concrete Placement
Concrete placement equipment moves and consolidates fresh concrete between the mixer and the form. The family covers vibrators that consolidate the pour, pumps and buggies that transport it, and crane-handled buckets for placement at height.
How it works
Placement is a race against workability. Buggies and pumps move concrete from truck to form before slump is lost — pumps through pipelines at rates a wheelbarrow crew cannot match. Once placed, an immersion vibrator's vibrating head liquefies the mix locally, letting trapped air rise and the concrete consolidate fully around reinforcement.
Types & variants
- Concrete Vibrator
- Immersion or external vibrator that consolidates fresh concrete and removes trapped air.

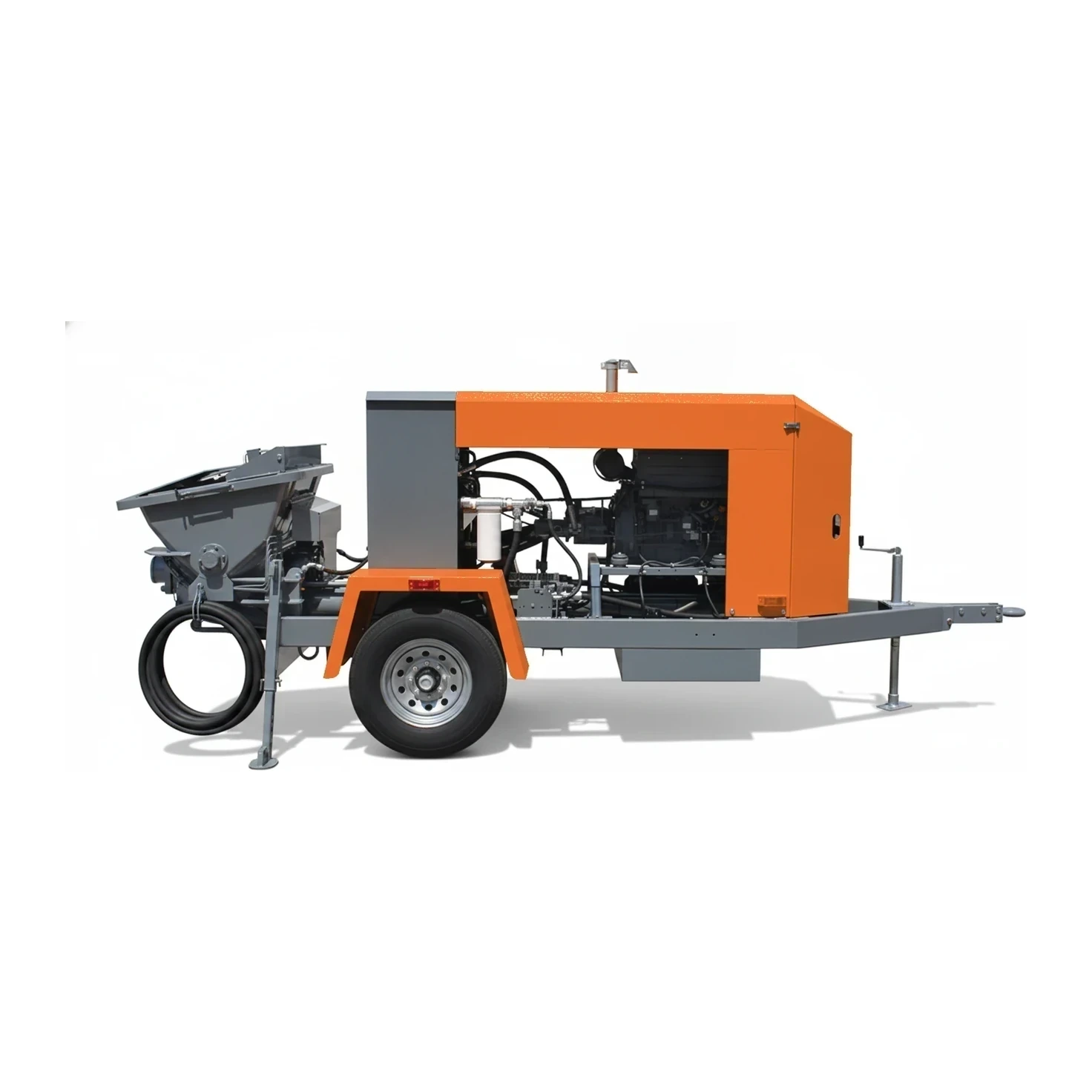

- Concrete Pump
- Pump that moves fresh concrete through hoses or booms from mixer to formwork.

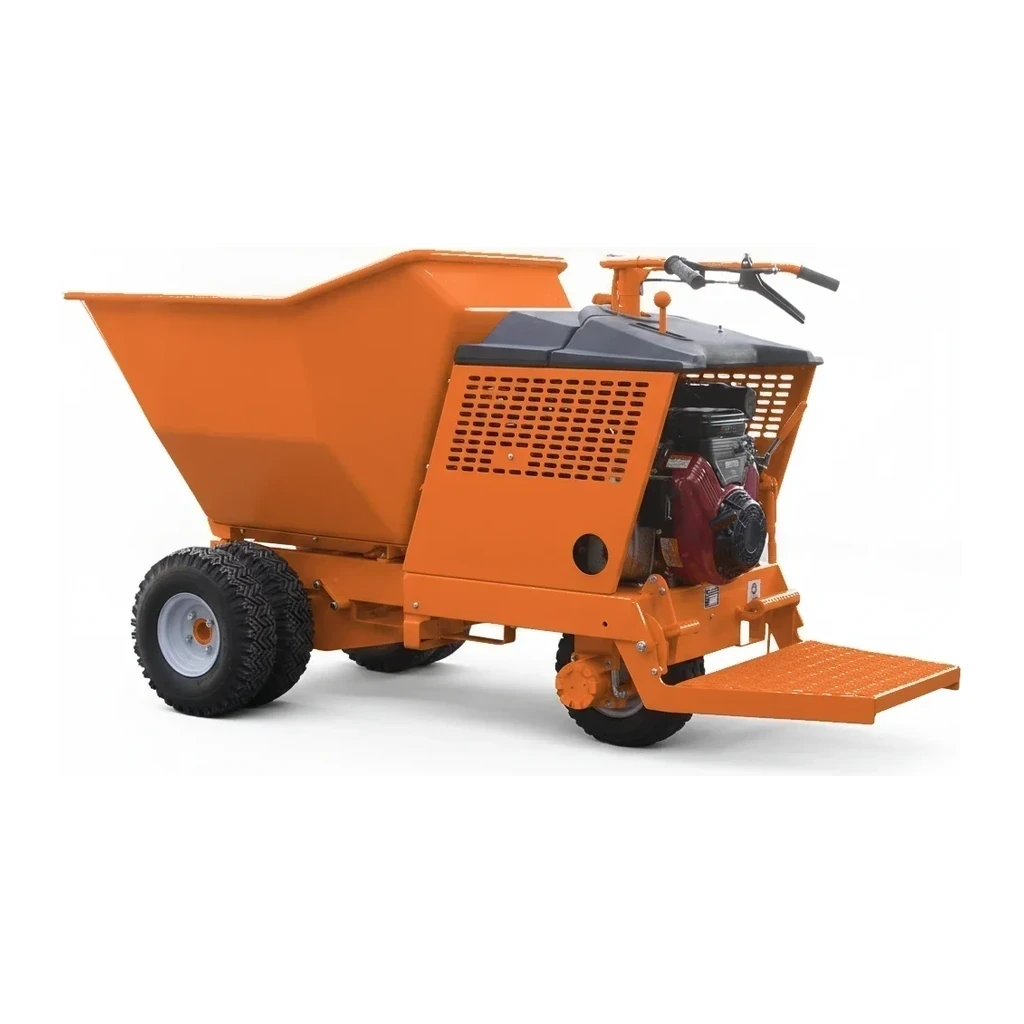

- Concrete Buggy
- Ride-on or walk-behind power buggy that ferries fresh concrete across a site.

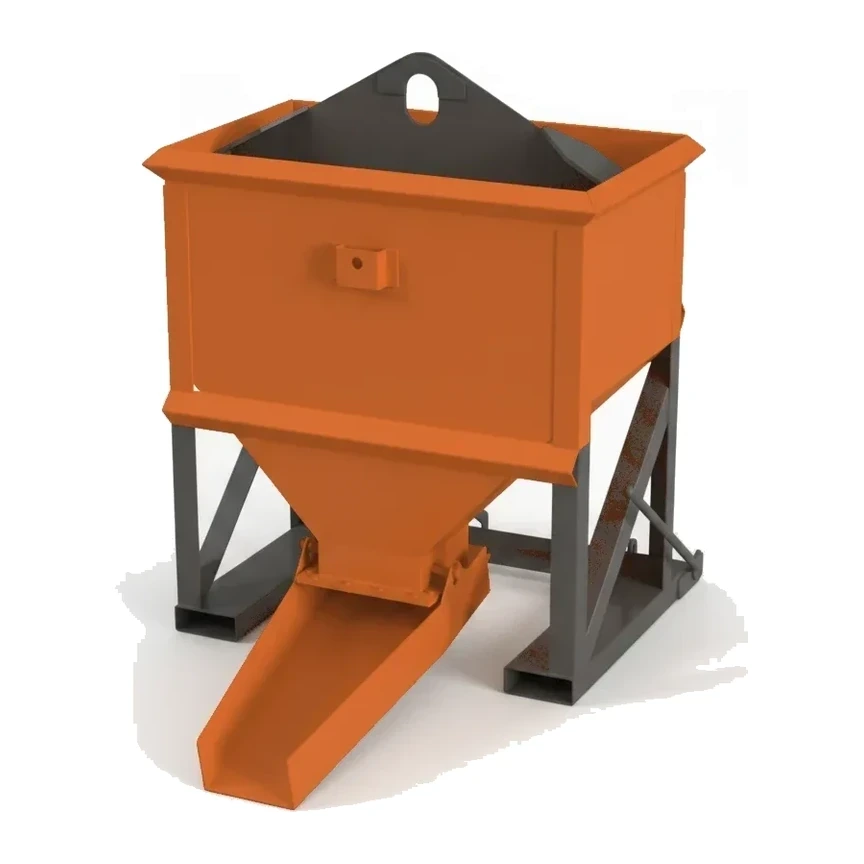

- Concrete Bucket and Hopper
- Crane-handled bucket or hopper used to place concrete at height or over obstructions.
How to choose
Distance and access decide the transport method: buggies handle open sites with ramp access, pumps reach over obstructions and into forms buggies cannot approach, and crane buckets serve high-rise and deep placements. Vibrators are matched by head diameter to the form size and reinforcement spacing.
Standards & certifications
- OSHA · 29 CFR 1926 Subpart Q
- Concrete and masonry construction requirements, including formwork and shoring.
