← Self-Propelled Mast Lift
CAT CLASS: HQ-10664
Up to 26 ft Self-Propelled Mast Lift
Self-propelled mast lifts up to 26 ft working height are the most compact class of vertical personnel lifts, designed for indoor access work where platform heights remain below 20 ft. This size class fits through standard doorways and operates on finished floors without surface damage, making it the primary choice for drop ceiling installation, light fixture maintenance, and interior finishing tasks. It represents the smallest and most maneuverable rung on the self-propelled mast lift ladder.
124
Models
11
Brands
Cat classes
Pick a size class — capacity and reach differ across the range.
Key specifications
| Specification | Typical range | What it means |
|---|---|---|
| Working height | 3.3–25 ft (1.0–7.6 m) | Maximum vertical reach, covering most standard commercial ceiling heights and allowing work on single-story interiors. |
| Platform capacity | 136–500 kg (300–1,100 lbs) | Supports operator and tools for routine maintenance and installation tasks without overloading the compact frame. |
| Stowed height | 1.6–2.0 m (5.2–6.6 ft) | Low profile permits passage through standard doorways and under most ceiling obstructions when traveling between work areas. |
| Travel speed (stowed) | 3.0–4.5 km/h | Slow, controlled movement suitable for navigating finished floors and tight indoor spaces without surface damage. |
| Operating weight | 180–1,740 kg (400–3,840 lbs) | Lightweight construction minimizes floor loading, critical for elevated slabs and sensitive flooring materials. |
How to choose
This size class is appropriate when platform heights remain below 20 ft and the machine must navigate standard doorways or operate on polished concrete, tile, or other finished floors without protection. The compact footprint and low weight make it suitable for retail spaces, lobbies, and occupied buildings where larger equipment cannot fit or would damage surfaces. When work regularly exceeds 20 ft platform height or requires outdoor use on uneven ground, the 26-36 ft Self-Propelled Mast Lift offers greater reach and stability. This smallest size class sacrifices vertical capacity for maximum indoor maneuverability.
What this size handles
- Installing or replacing drop ceiling tiles and grid systems in commercial offices
- Light fixture maintenance and bulb replacement in retail stores and lobbies
- Interior painting and drywall finishing in spaces with 10–15 ft ceilings
- HVAC vent installation and ductwork access in finished interiors
- Signage installation and window cleaning in ground-floor commercial spaces
- Electrical conduit work and junction box access in warehouses with finished floors
Safety & operation
- Non-marking tires and low ground pressure protect finished flooring; models specify maximum allowable floor grades (typically 20–30% gradeability)
- Wind speed ratings of 12.5–28 mph limit outdoor use; indoor-only operation eliminates most weather-related restrictions
- Compact platforms (0.4–0.7 m width) require operators to manage tool placement carefully to avoid exceeding capacity or creating tip hazards
- Low stowed height reduces visibility over the machine; operators must verify clearance when approaching doorways or passing under soffits
Transport & logistics
- Lightweight models (under 500 kg) load onto standard utility trailers without special equipment; heavier units require ramps or lift gates
- Stowed dimensions typically permit transport in box trucks or enclosed trailers alongside other compact equipment
- Most models do not require commercial towing capacity; mid-size trucks and vans handle trailer transport for lighter units
Power & supply
- Electric-only power systems dominate this size class, using onboard battery packs charged from standard 110V or 220V outlets
- Battery runtimes typically support full-day indoor operation; overnight charging between shifts is standard practice
- Zero emissions and quiet operation meet indoor air quality and noise requirements for occupied buildings
Frequently asked
What ceiling height requires moving to the next size class?
When platform heights consistently exceed 20 ft or working heights approach 25 ft, the 26-36 ft Self-Propelled Mast Lift provides the additional reach and platform stability needed for higher work.
Can this size class operate outdoors?
Most models in this class are designed for indoor use on level, finished surfaces. Limited outdoor use on paved, level ground may be possible within manufacturer wind speed limits (12.5–28 mph), but rough terrain or slopes exceed design parameters.
How does operating weight affect floor loading decisions?
Units range from 180 kg to 1,740 kg; heavier models may exceed load limits for elevated slabs, mezzanines, or weak subfloors. Site engineers should verify floor capacity against the specific model's operating weight plus platform load.
Compare popular models
Find by spec →Normalised to the same units. A dash means the figure was not published.
| Model | Working height | Platform capacity |
|---|---|---|
| Dingli AMWP13-9200 | 12.4 ft (3.8 m) | 441 lb (200 kg) |
| Dingli AMWP7-8100L | 6.7 ft (2.0 m) | 441 lb (200 kg) |
| Haulotte Star 6 CRAWLER | 19 ft (5.8 m) | 441 lb (200 kg) |
| Haulotte Star 6 PICKING | 19 ft (5.8 m) | 463 lb (210 kg) |
| MEC MMAE16 | 22 ft (6.7 m) | 500 lb (227 kg) |
| Genie GR-12 | 18 ft (5.5 m) | 500 lb (227 kg) |
Related equipment
Browse by manufacturer
Sources
Every specification is verified against the manufacturer's published data, with the source linked for reference.
Up to 26 ft Self-Propelled Mast Lift
44 models · Every spec cited to source
Dingli OPT0507
5 ft (1.5 m)
→
Dingli ZDYT3-3.7S
5.7 ft (1.7 m)
661 lb (300 kg)
→
Dingli DYT2-3.7SW
5.7 ft (1.7 m)
661 lb (300 kg)
→
Dingli ZDYT3-4.5S
6.5 ft (2.0 m)
661 lb (300 kg)
→
Dingli DYT2-4.5S
6.5 ft (2.0 m)
661 lb (300 kg)
→
Dingli AMWP7-8100L
6.7 ft (2.0 m)
441 lb (200 kg)
2,183 lb (990 kg)
→
Dingli ZDYT3-4.8S
6.8 ft (2.1 m)
661 lb (300 kg)
→
Dingli AMWP8-8100L
7.6 ft (2.3 m)
500 lb (227 kg)
→
Dingli AMWP8-3100
7.6 ft (2.3 m)
600 lb (272 kg)
→
Dingli GTWY9.5-1300
9.5 ft (2.9 m)
331 lb (150 kg)
→
Dingli GTWY9.5-2100
9.5 ft (2.9 m)
661 lb (300 kg)
→
Dingli GTWY11-1300
11 ft (3.4 m)
331 lb (150 kg)
→
Dingli GTWY11-2100
11 ft (3.4 m)
661 lb (300 kg)
→
JLG ES1230
12 ft (3.7 m)
500 lb (227 kg)
1,739 lb (789 kg)
→
Dingli AMWP13-9100
12.4 ft (3.8 m)
551 lb (250 kg)
→
Dingli AMWP13-9200
12.4 ft (3.8 m)
441 lb (200 kg)
→
Dingli GTWY12.5-1300
12.5 ft (3.8 m)
331 lb (150 kg)
→
Dingli GTWY12.5-2100
12.5 ft (3.8 m)
551 lb (250 kg)
→
Big Joe J2 JOEY Mid-Level
12.5 ft (3.8 m)
→
Dingli GTWY14-1300
14 ft (4.3 m)
300 lb (136 kg)
→
Dingli GTWY14-2100
14 ft (4.3 m)
441 lb (200 kg)
→
JLG 830P
14.2 ft (4.3 m)
441 lb (200 kg)
→

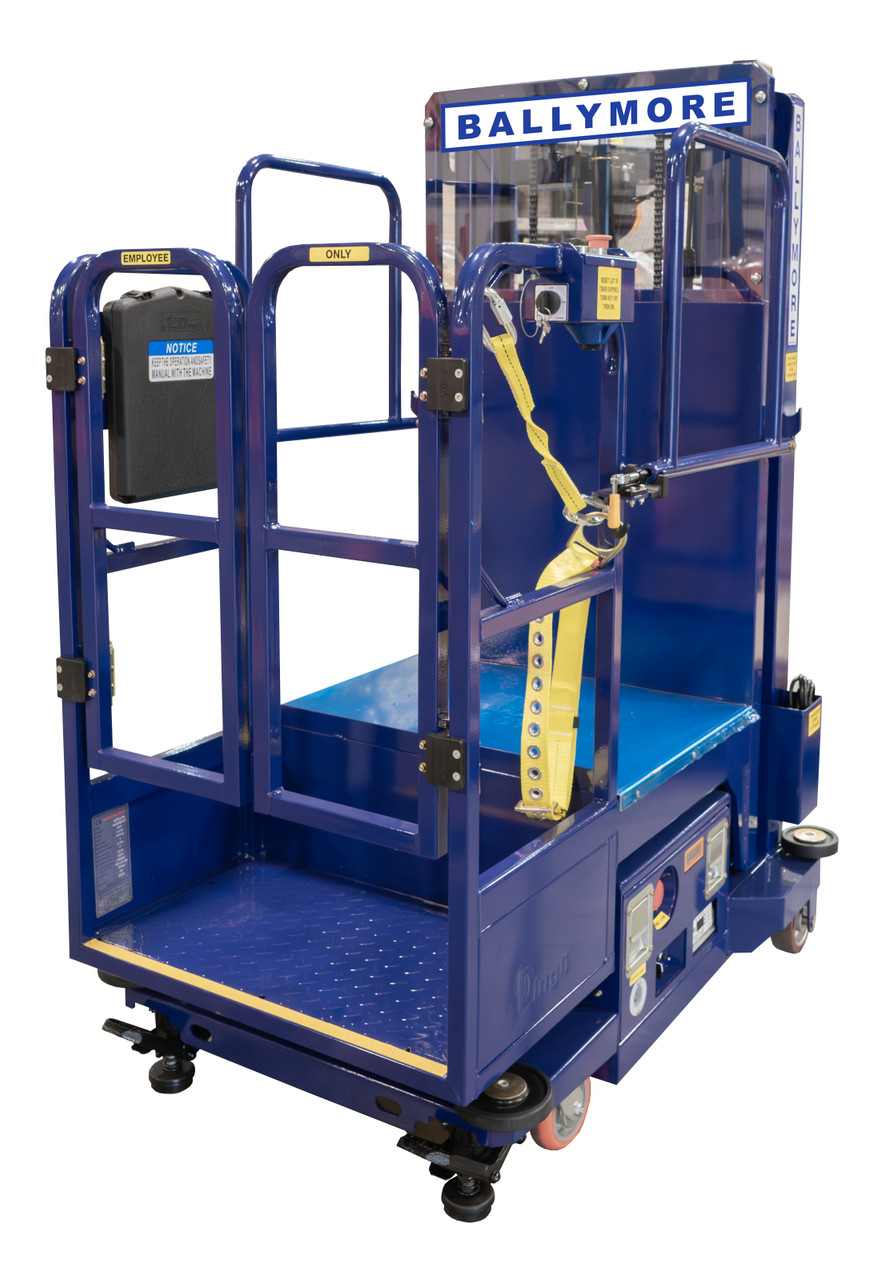

Ballymore PS-10
15 ft (4.6 m)
1,230 lb (558 kg)
→
JLG 1030P
16 ft (4.9 m)
549 lb (249 kg)
→
JLG 1230P
17 ft (5.2 m)
441 lb (200 kg)
→
Skyjack SJ12 E
18 ft (5.5 m)
2,013 lb (913 kg)
→

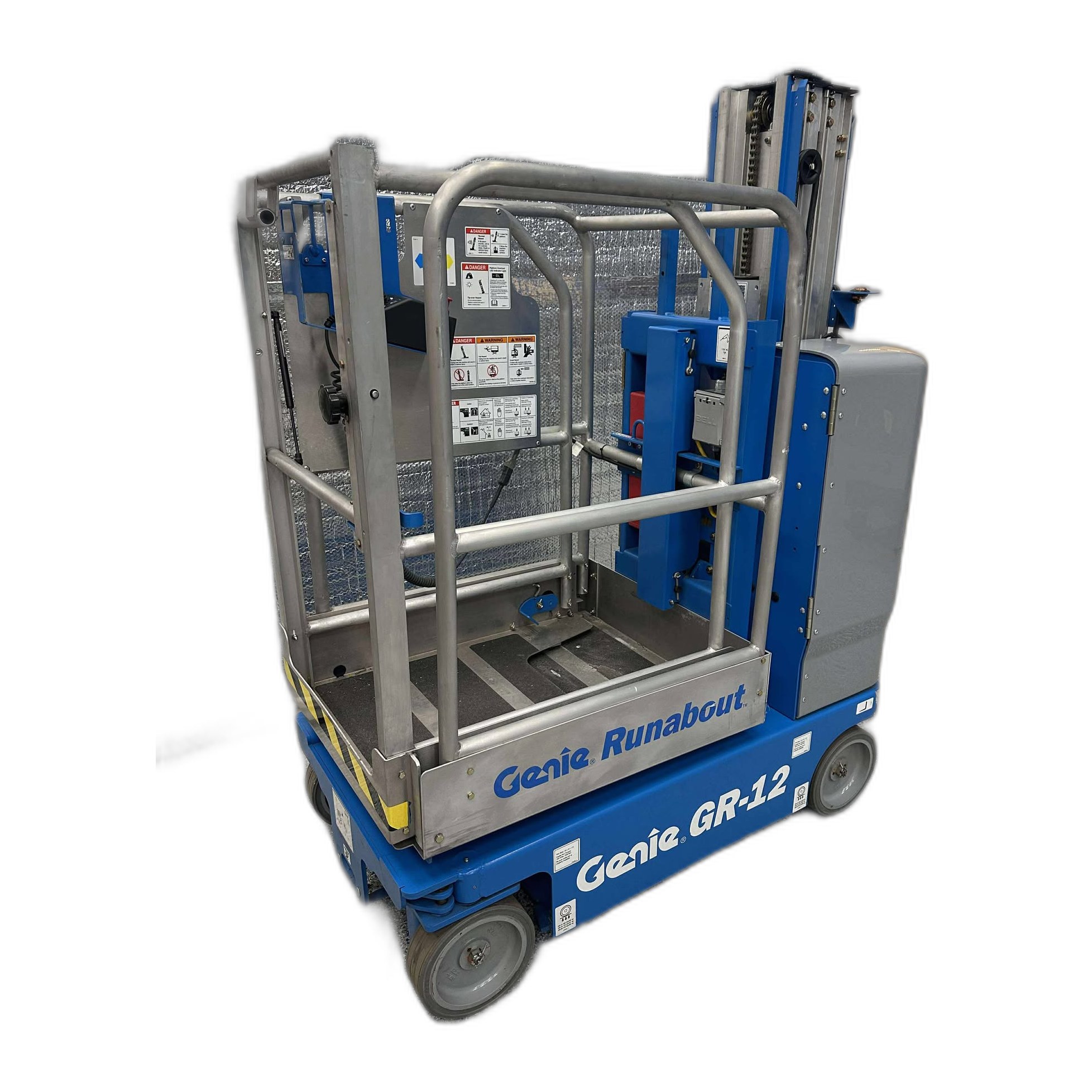

Genie GR-12
18 ft (5.5 m)
500 lb (227 kg)
1,581 lb (717 kg)
→

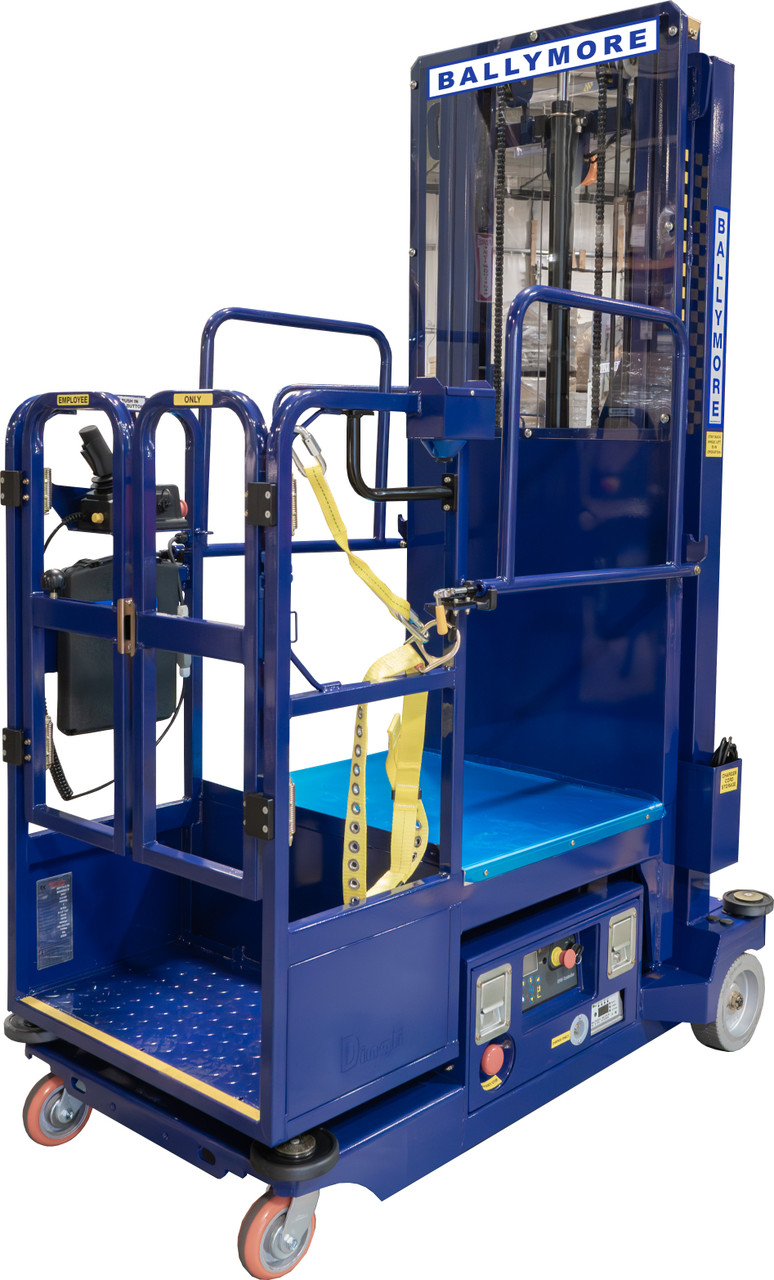

Ballymore PS-12DRV
18 ft (5.5 m)
1,601 lb (726 kg)
→

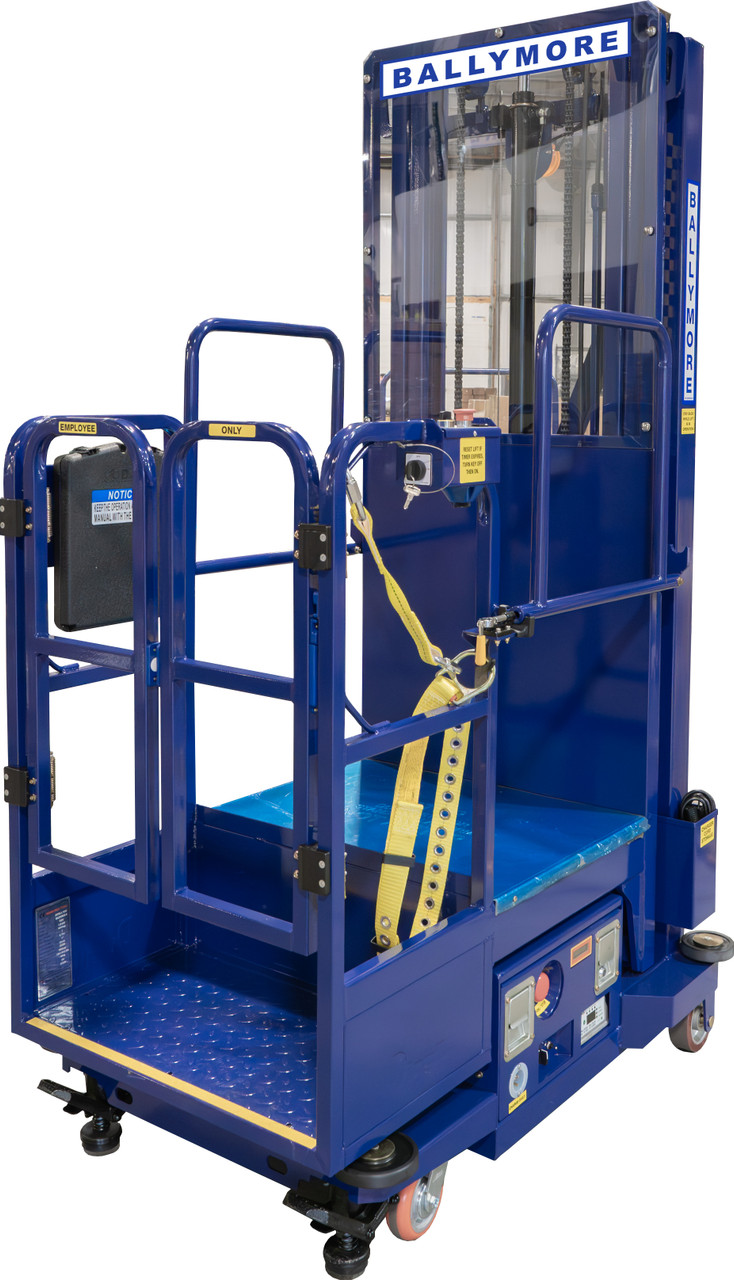

Ballymore PS-12
18 ft (5.5 m)
→
Hangcha HV Series Vertical Mast Lift
18.4 ft (5.6 m)
331 lb (150 kg)
→
Genie GRC-12
18.6 ft (5.7 m)
2,090 lb (948 kg)
→
Haulotte Star 6
19 ft (5.8 m)
507 lb (230 kg)
1,841 lb (835 kg)
→
Haulotte Star 6 CRAWLER
19 ft (5.8 m)
441 lb (200 kg)
2,590 lb (1,175 kg)
→
Haulotte Star 6 PICKING
19 ft (5.8 m)
463 lb (210 kg)
1,962 lb (890 kg)
→
JLG 13MSPT
19.1 ft (5.8 m)
2,205 lb (1,000 kg)
→
MEC MME20
20 ft (6.1 m)
351 lb (159 kg)
→
Genie GR-15
21.2 ft (6.5 m)
500 lb (227 kg)
2,191 lb (994 kg)
→
Skyjack SJ16 E
21.5 ft (6.6 m)
2,053 lb (931 kg)
→
MEC MMAE16
22 ft (6.7 m)
500 lb (227 kg)
2,172 lb (985 kg)
→

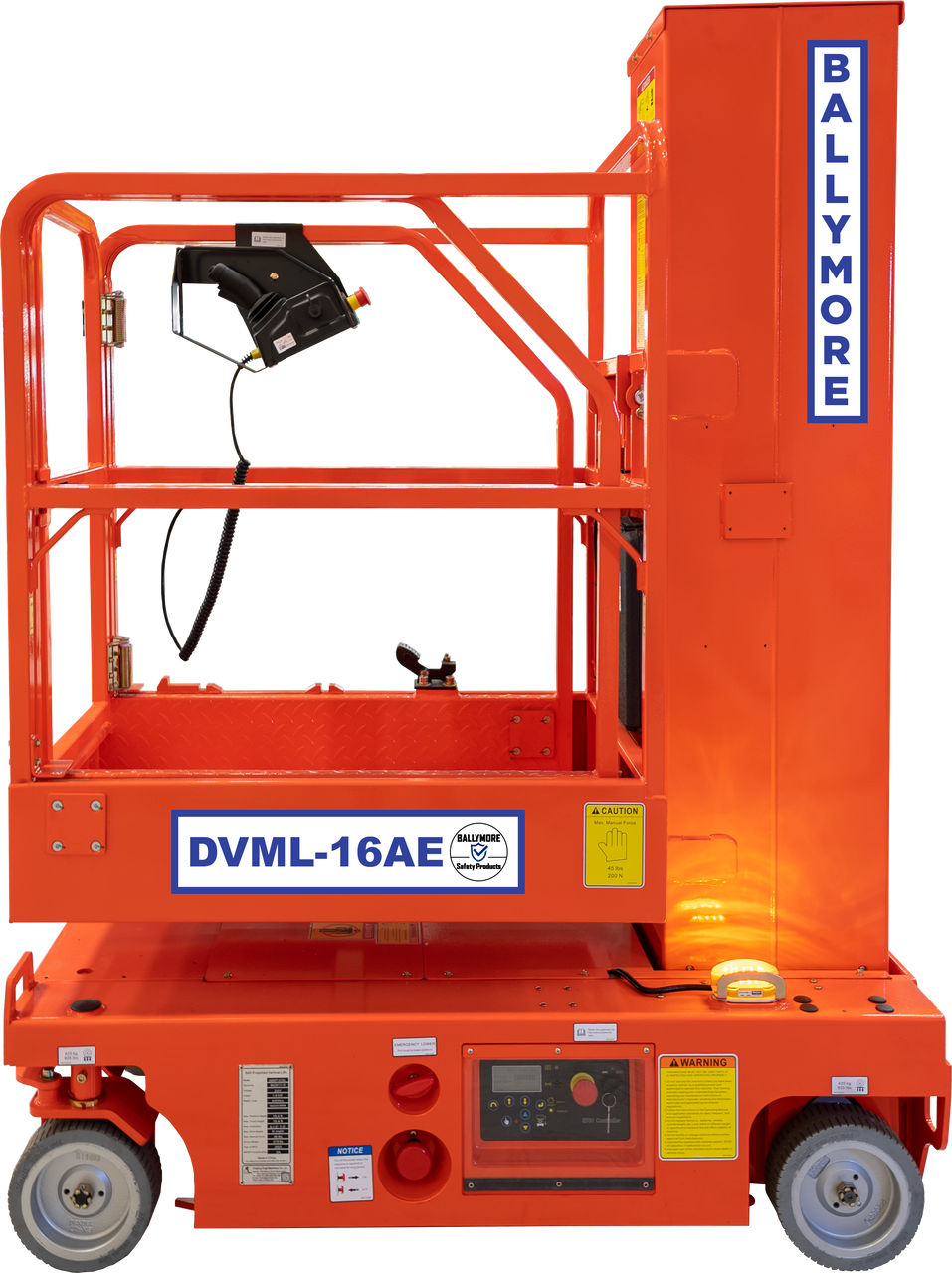

Ballymore DVML-16AE
22 ft (6.7 m)
→
JLG E18MML
24 ft (7.3 m)
399 lb (181 kg)
→
JLG E18MCL
24 ft (7.3 m)
399 lb (181 kg)
→
MEC MME25
25 ft (7.6 m)
351 lb (159 kg)
→
Skyjack SJ20 E
25.5 ft (7.8 m)
2,441 lb (1,107 kg)
→
