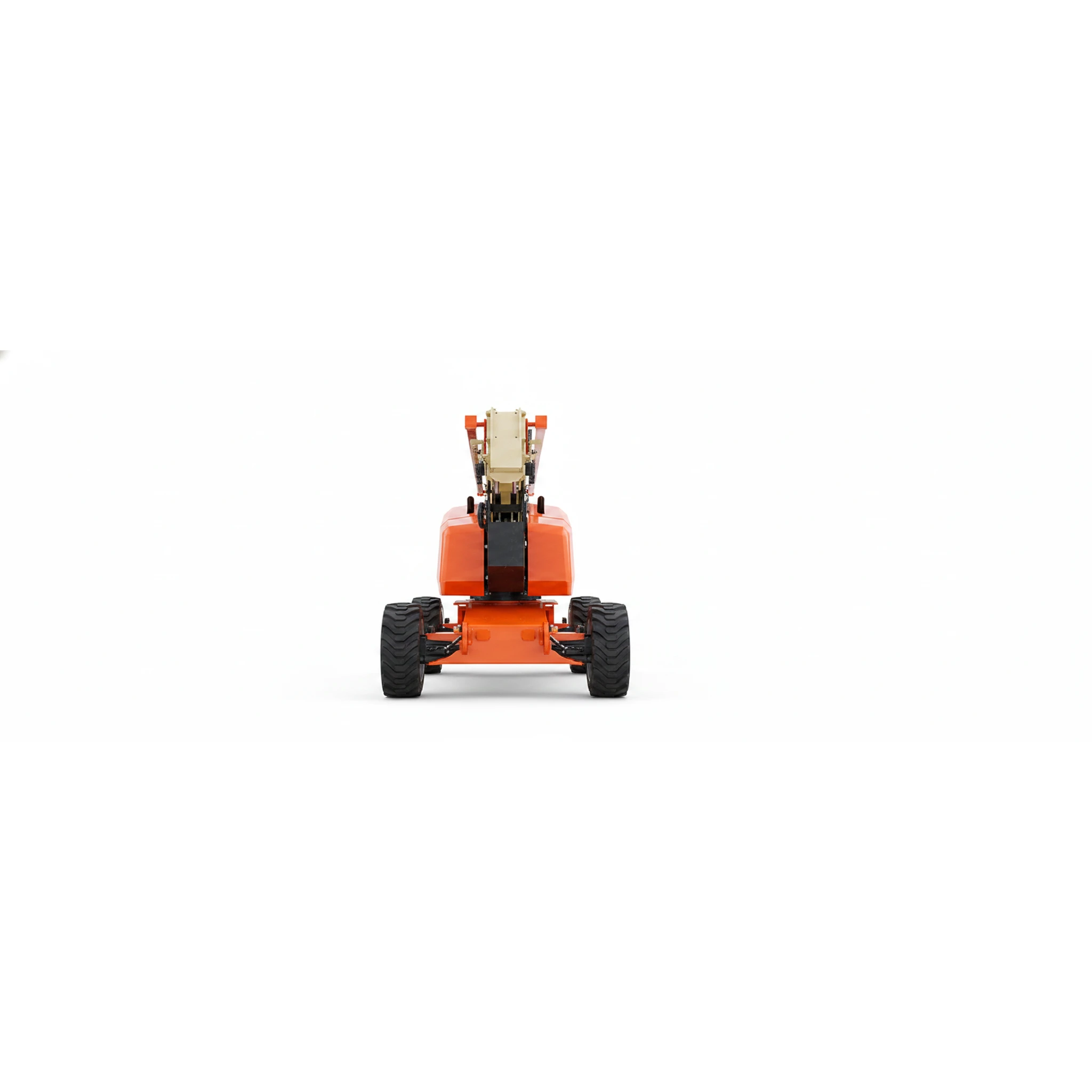

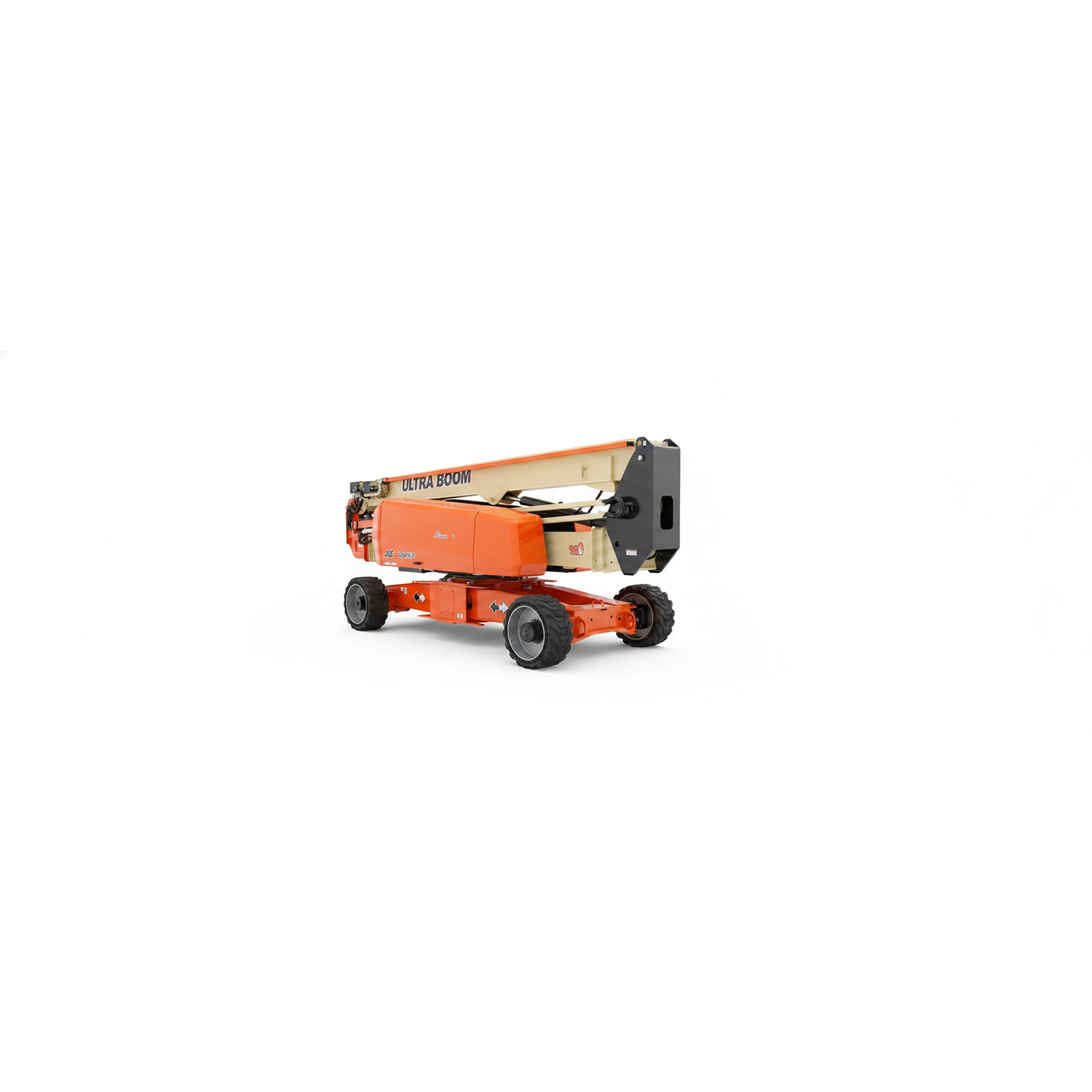

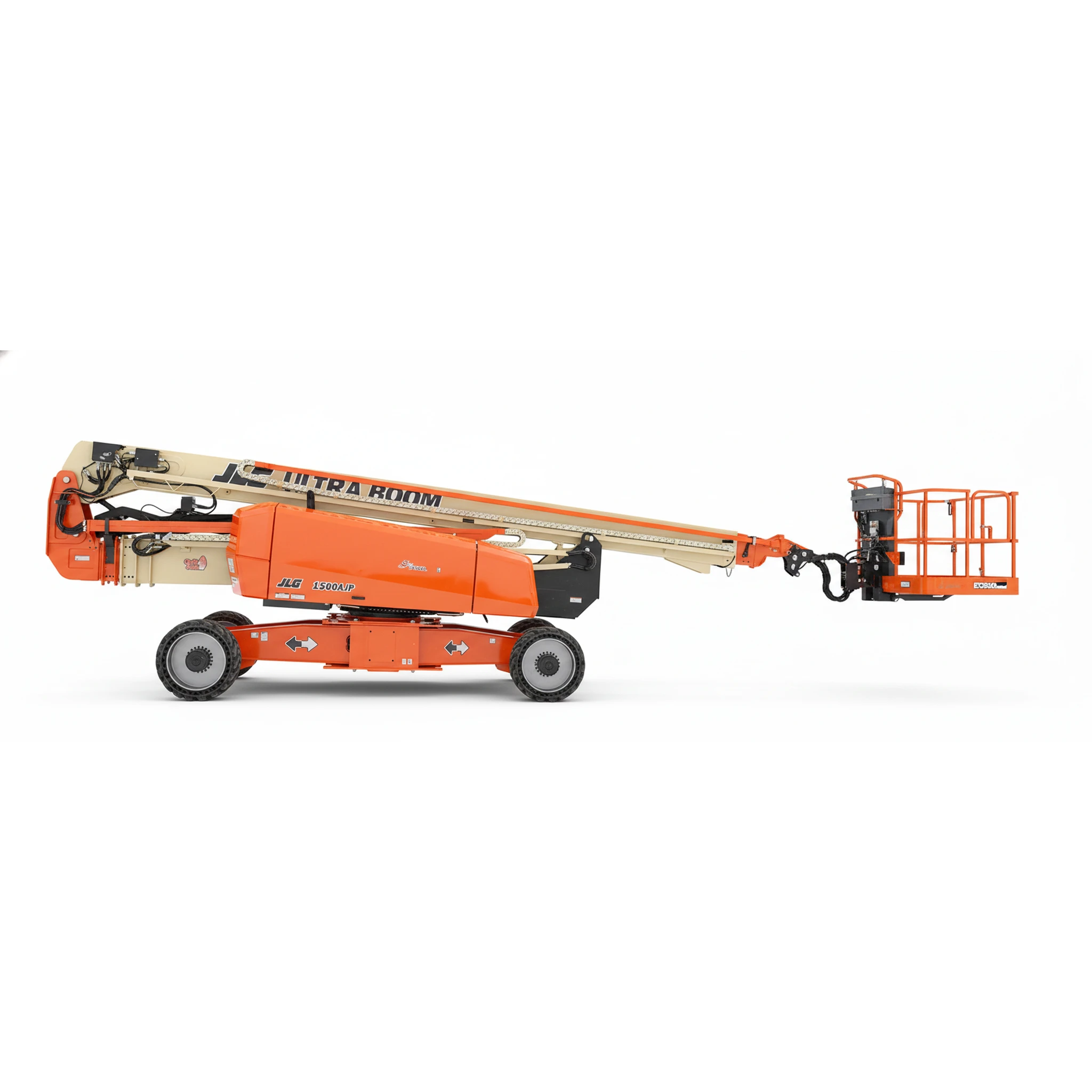

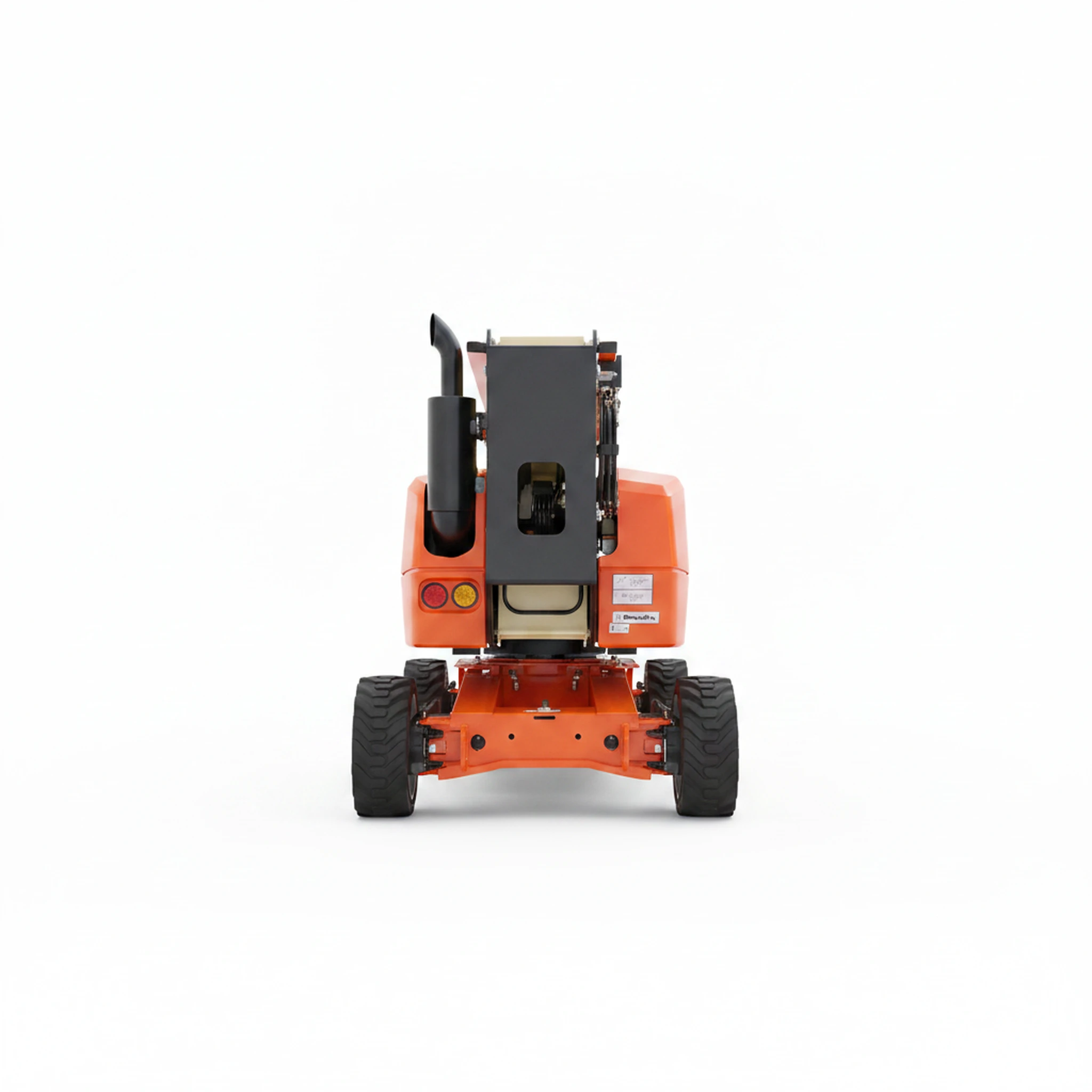

JLG
EC600SJ
7 hp
Engine power
17,211 lb (7,807 kg)
Operating weight
500 lb (227 kg)
Platform capacity
60 ft (18.3 m)
Working height
4.8 km/h
drive speed
49.2 L
fuel tank capacity
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Engine power | Operating weight | Platform capacity |
|---|---|---|---|---|
| Elliott H70R HiReach | 93% | - | - | 500 lb (227 kg) |
| Niftylift SP50N | 93% | - | 16,865 lb (7,650 kg) | 500 lb (227 kg) |
| MEC 60-J Telescopic Diesel | 92% | - | - | 600 lb (272 kg) |
| Niftylift SP64 4x4 | 91% | - | 14,683 lb (6,660 kg) | 549 lb (249 kg) |
| Niftylift SP64E | 91% | - | 14,729 lb (6,681 kg) | 549 lb (249 kg) |
| XCMG XGS46J-ANSI | 91% | - | - | 529 lb (240 kg) |
Documents
Full specifications
| Axle Oscillation | 7 in (17.8 cm) | ↗ |
| Gradeability | 45 % | ↗ |
| Horizontal Outreach | 43–ft 3–in ft-in | ↗ |
| Max Platform Capacity | 500 lb (227 kg) | ↗ |
| Max Platform Height | 60–ft 3–in ft-in | ↗ |
| Platform Capacity (ANSI) | 500 lb (227 kg) | ↗ |
| Swing | 400 ° | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
