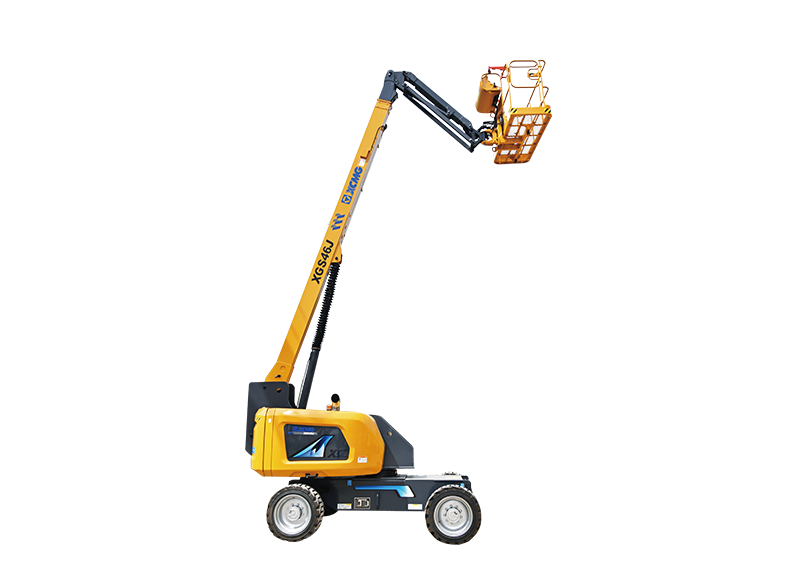

XCMG
XGS46J-ANSI
529 lb (240 kg)
Platform capacity
52 ft (15.8 m)
Working height
Equivalent across brands
Compare side by side →Comparable machines from other manufacturers, scored on normalised, manufacturer-sourced specs.
| Model | Match | Platform capacity | Working height |
|---|---|---|---|
| Niftylift SD50 4x4 | 95% | 500 lb (227 kg) | 49.5 ft (15.1 m) |
| Niftylift SP50 4x4 | 95% | 500 lb (227 kg) | 50 ft (15.2 m) |
| Niftylift SP50E | 95% | 500 lb (227 kg) | 50 ft (15.2 m) |
| Niftylift SP50N | 95% | 500 lb (227 kg) | 49.5 ft (15.1 m) |
| Elliott L50 HiReach | 92% | 600 lb (272 kg) | 50 ft (15.2 m) |
| Elliott G50F HiReach | 91% | 600 lb (272 kg) | 55 ft (16.8 m) |
Documents
Full specifications
| Boom Luffing Range | -14~73 ° | ↗ |
| Max. Grade Ability | 45% | ↗ |
| Max. Load Capacity | 529 (unrestricted)/705 (restricted) lbs | ↗ |
| Max. Platform Height | 46' ft | ↗ |
| Max. Travel Speed | 3.73 mph | ↗ |
| Max. Working Height | 52'6'' ft | ↗ |
| Max. Working Range | 41'8'' ft | ↗ |
| Rotation Angle of Turntable | 360 ° | ↗ |
| Total Weight | 17,747 lbs (8,050 kg) | ↗ |
| Wheel Base | 7'9'' ft | ↗ |
Every figure is traced to the manufacturer’s published data. ↗ opens the source.
