← Electric Scissor Lift
CAT CLASS: HQ-10633
Up to 20 ft Electric Scissor Lift
Electric scissor lifts up to 20 ft platform height—typically 19 ft—are the smallest and most compact units in the electric scissor category, designed for finished interior environments. With non-marking tires, narrow widths down to 30 inches, and working heights to 25 ft, these machines navigate standard doorways, freight elevators, and tight spaces where flooring and walls are already in place. They form the foundation rung of the electric scissor ladder, below the 20-27 ft Electric Scissor Lift class used for taller interior tasks.
511
Models
18
Brands
Cat classes
Pick a size class — capacity and reach differ across the range.
All sizes
511 models
Up to 20 ft
110 models
20-27 ft
60 models
27-34 ft
53 models
34+ ft
69 models
Other sizes
219 models
Key specifications
| Specification | Typical range | What it means |
|---|---|---|
| Platform height | 3.7–19.0 ft (1.1–5.8 m) | Provides working height to approximately 25 ft for standard ceiling access |
| Platform capacity | 227–500 kg (500–1,102 lb) | Supports one or two operators with tools and materials |
| Overall width | 0.8–76.2 ft (0.2–23.2 m) | Narrow models pass through standard doorways and residential hallways |
| Operating weight | 759.8–3,164.0 kg (1,675–6,976 lb) | Range accommodates compact models suitable for upper-floor slabs and elevator transport |
How to choose
This size class is appropriate when work occurs in finished interiors with restricted access and standard ceiling heights. The 19 ft platform height suits tasks in commercial buildings with 12–20 ft ceilings, and the narrow frame navigates doorways, corridors, and freight elevators without modification. When platform heights above 20 ft are required—such as high-bay retail spaces, atriums, or multi-story warehouses—the 20-27 ft Electric Scissor Lift becomes necessary. Outdoor applications or rough terrain generally require engine-powered rough-terrain scissor lifts instead.
What this size handles
- Installing recessed lighting and electrical fixtures in office ceilings
- Running HVAC ductwork and sprinkler pipe in retail fit-outs
- Hanging and finishing drywall in commercial interiors
- Painting and trim work in hotel lobbies and corridors
- Inspecting and servicing ceiling-mounted equipment in hospitals
- Setting ceiling tile grids in schools and municipal buildings
Safety & operation
- Non-marking tires protect finished flooring; ensure floor loading capacity meets or exceeds machine operating weight plus dynamic loads
- Fall protection harnesses and guardrails are standard; operators must secure lanyards to designated anchor points per ANSI A92.20 standards
- Pothole and drop-off protection required; lifts must operate on level surfaces within manufacturer gradeability limits (typically 25–30%)
- Maintain clearance from overhead obstructions, electrical wiring, and structural elements throughout the lift's range of motion
Transport & logistics
- Most units fit in standard enclosed trailers or on lightweight flatbed trailers; operating weights from 760 kg to 3,164 kg span compact models suitable for half-ton truck towing to heavier configurations
- Compact width and weight of smaller models permit loading into freight elevators rated for 3,000+ lb, enabling multi-story interior access without crane lifts
- Some models fold or retract for transport in box trucks or cargo vans
Power & supply
- Electric battery power (typically 24V or 48V DC); units recharge from standard 110V or 220V AC outlets overnight or between shifts
- Run-time varies with duty cycle but generally supports a full work shift; zero emissions and low noise suit occupied buildings
- No on-site fuel storage or ventilation requirements
Frequently asked
What is the maximum working height for this size class?
Working heights range from 5.5 to 25 ft, with most models in the class offering 23–25 ft of working height from a 19 ft platform height, accounting for an operator's reach.
Will a 19 ft electric scissor fit through a standard doorway?
Units with overall widths of 30–32 inches pass through standard 36-inch commercial doorways; verify stowed height clears door headers and that turning radius allows maneuvering in the space.
What differentiates this class from taller electric scissor lifts?
The Up to 20 ft Electric Scissor Lift class prioritizes compact dimensions and light weight for access-restricted interiors, whereas the 20-27 ft Electric Scissor Lift and larger models provide greater platform height at the cost of wider frames and heavier transport requirements.
Compare popular models
Find by spec →Normalised to the same units. A dash means the figure was not published.
| Model | Working height | Platform capacity |
|---|---|---|
| JLG ES1932 | 19 ft (5.8 m) | 507 lb (230 kg) |
| Custom Equipment PS-1030 | 16 ft (4.9 m) | 800 lb (363 kg) |
| Custom Equipment PS-1430 | 20 ft (6.1 m) | 701 lb (318 kg) |
| Custom Equipment ZT-1230 | 18 ft (5.5 m) | 650 lb (295 kg) |
| Genie GS-1930 | 25.6 ft (7.8 m) | 1,102 lb (500 kg) |
| Genie GS-1932 | 25.6 ft (7.8 m) | 1,102 lb (500 kg) |
Related equipment
Browse by manufacturer
Sources
Every specification is verified against the manufacturer's published data, with the source linked for reference.
Up to 20 ft Electric Scissor Lift
110 models · Page 1 of 3 · Every spec cited to source
Dingli JCPT0507C
5 ft (1.5 m)
529 lb (240 kg)
→
Dingli JCPT0607DCM
5.6 ft (1.7 m)
529 lb (240 kg)
→
Dingli JCPT0607DCH
5.6 ft (1.7 m)
529 lb (240 kg)
→
Dingli JCPT0608DCH
6.5 ft (2.0 m)
507 lb (230 kg)
→
Dingli JCPT0608DCM
6.5 ft (2.0 m)
507 lb (230 kg)
→
Dingli JCPT0607A
5.9 ft (1.8 m)
529 lb (240 kg)
→
Dingli JCPT0607B
5.9 ft (1.8 m)
529 lb (240 kg)
→
Dingli JCPT0607C
5.9 ft (1.8 m)
529 lb (240 kg)
→
Dingli JCPT0707DCM
6.5 ft (2.0 m)
507 lb (230 kg)
→
Dingli JCPT0708DCH
7.6 ft (2.3 m)
507 lb (230 kg)
→
Dingli JCPT0708DCM
7.6 ft (2.3 m)
507 lb (230 kg)
→
Dingli JCPT0707DC
6.5 ft (2.0 m)
529 lb (240 kg)
→
Dingli JCPT0707DC-XD
7 ft (2.1 m)
500 lb (227 kg)
→
Dingli JCPT0707DCH
6.5 ft (2.0 m)
529 lb (240 kg)
→
Dingli JCPT0807AC
7.8 ft (2.4 m)
507 lb (230 kg)
→
Dingli JCPT0808AC
8 ft (2.4 m)
838 lb (380 kg)
→
Dingli JCPT0812AC
8 ft (2.4 m)
1,190 lb (540 kg)
→
Dingli JCPT0807HA
7.8 ft (2.4 m)
507 lb (230 kg)
→
Dingli JCPT0808HA
8 ft (2.4 m)
838 lb (380 kg)
→
Dingli JCPT0812HA
8 ft (2.4 m)
1,190 lb (540 kg)
→
MEC NANO10-XD
16 ft (4.9 m)
500 lb (227 kg)
1,235 lb (560 kg)
→
Dingli JCPT1008AC
10 ft (3.0 m)
507 lb (230 kg)
→
Dingli JCPT1012AC
10 ft (3.0 m)
992 lb (450 kg)
→
Dingli JCPT1008HA
10 ft (3.0 m)
507 lb (230 kg)
→
Dingli JCPT1012HA
10 ft (3.0 m)
992 lb (450 kg)
→
Custom Equipment PS-1030
16 ft (4.9 m)
800 lb (363 kg)
1,499 lb (680 kg)
→

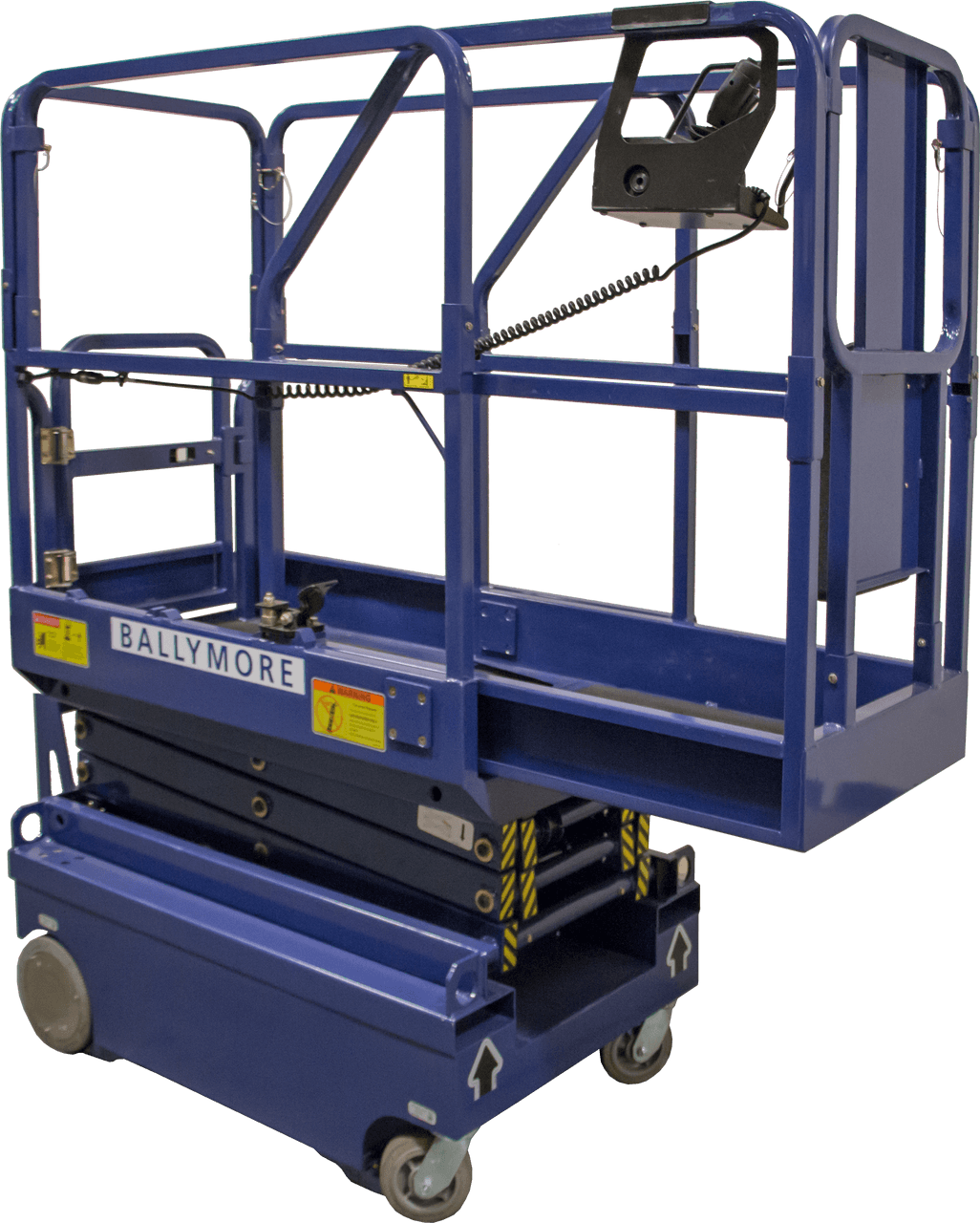

Ballymore DMSL-10
16 ft (4.9 m)
→
Dingli JCPT1212AC
12 ft (3.7 m)
705 lb (320 kg)
→
Dingli JCPT1218DC
12 ft (3.7 m)
1,001 lb (454 kg)
→
Dingli JCPT1212HA
12 ft (3.7 m)
705 lb (320 kg)
→
Dingli JCPT1208AC
12 ft (3.7 m)
551 lb (250 kg)
→

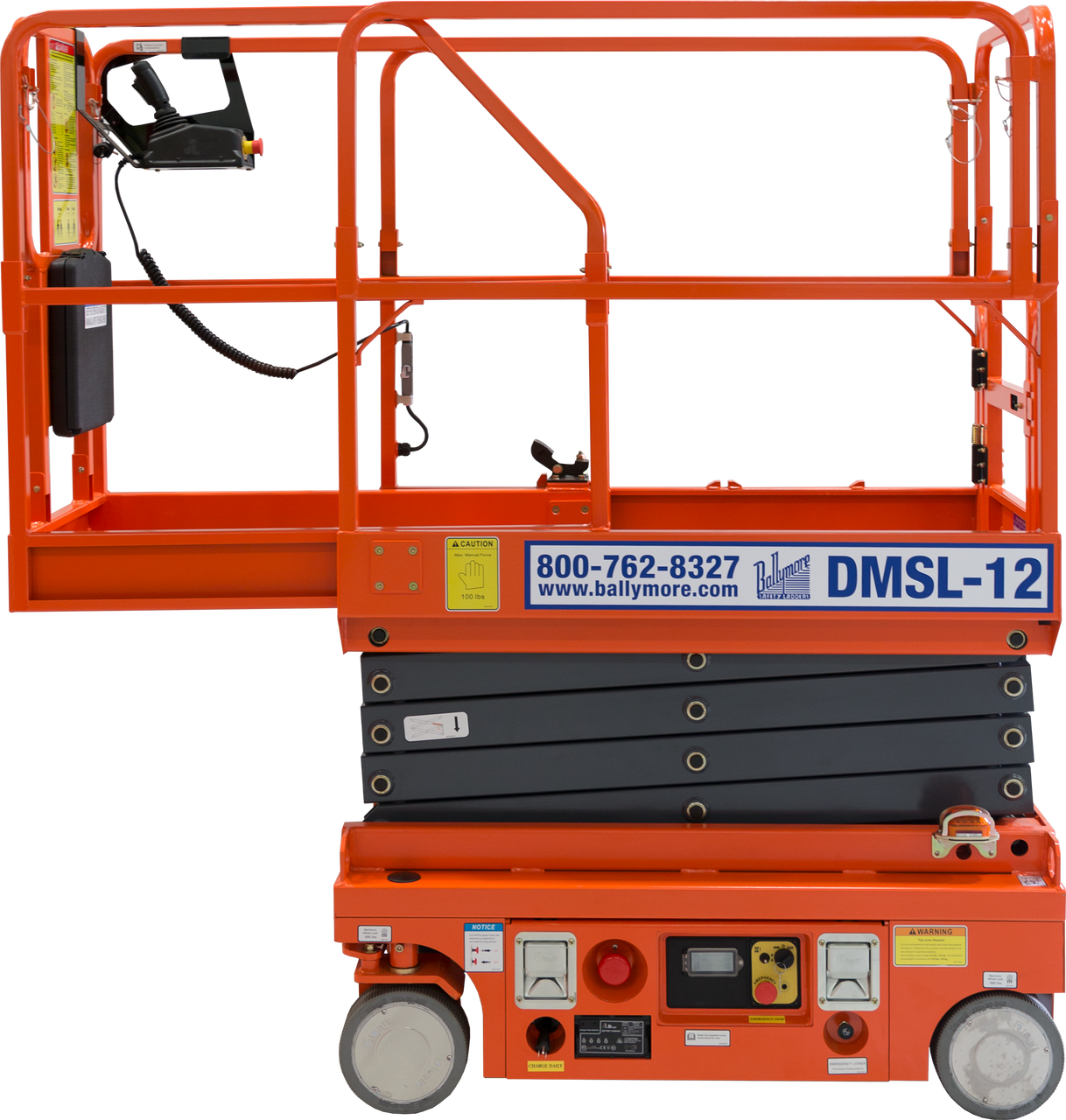

Ballymore DMSL-12
19 ft (5.8 m)
→
Skyjack SJ12
18.6 ft (5.7 m)
2,013 lb (913 kg)
→
Custom Equipment ZT-1230
18 ft (5.5 m)
650 lb (295 kg)
1,676 lb (760 kg)
→
JLG ES-1330L
500 lb (227 kg)
1,984 lb (900 kg)
→
Genie GS-1330
19.4 ft (5.9 m)
1,951 lb (885 kg)
→
Genie GS-1330M
19.4 ft (5.9 m)
1,951 lb (885 kg)
→
Snorkel S3013 MINI
19 ft (5.8 m)
600 lb (272 kg)
1,750 lb (794 kg)
→
Skyjack SJ-3013
19 ft (5.8 m)
1,953 lb (886 kg)
→
JLG ES1330M
13 ft (4.0 m)
500 lb (227 kg)
→
Skyjack SJ3213 micro
→

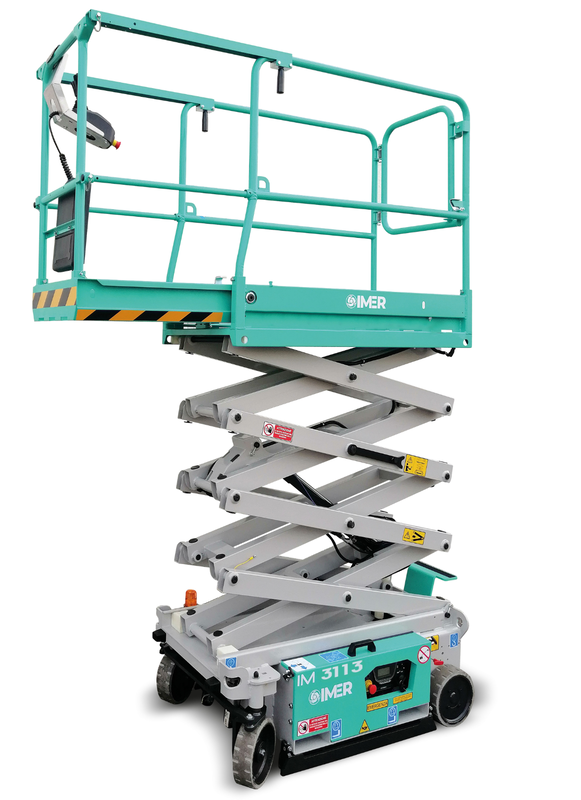

Imer IM 3113
19 ft (5.8 m)
→
MEC 1330AE Micro
13 ft (4.0 m)
529 lb (240 kg)
→
MEC 1330SE Micro
19 ft (5.8 m)
529 lb (240 kg)
2,050 lb (930 kg)
→
MEC Micro 13-XD
13 ft (4.0 m)
500 lb (227 kg)
→
Genie GS-1330M-E-DRIVE
→
Skyjack SJ3213
→
Dingli JCPT1412AC
13.8 ft (4.2 m)
705 lb (320 kg)
→
