← Electric Scissor Lift
CAT CLASS: HQ-10633
Up to 20 ft Electric Scissor Lift
Electric scissor lifts up to 20 ft platform height—typically 19 ft—are the smallest and most compact units in the electric scissor category, designed for finished interior environments. With non-marking tires, narrow widths down to 30 inches, and working heights to 25 ft, these machines navigate standard doorways, freight elevators, and tight spaces where flooring and walls are already in place. They form the foundation rung of the electric scissor ladder, below the 20-27 ft Electric Scissor Lift class used for taller interior tasks.
511
Models
18
Brands
Cat classes
Pick a size class — capacity and reach differ across the range.
All sizes
511 models
Up to 20 ft
110 models
20-27 ft
60 models
27-34 ft
53 models
34+ ft
69 models
Other sizes
219 models
Key specifications
| Specification | Typical range | What it means |
|---|---|---|
| Platform height | 3.7–19.0 ft (1.1–5.8 m) | Provides working height to approximately 25 ft for standard ceiling access |
| Platform capacity | 227–500 kg (500–1,102 lb) | Supports one or two operators with tools and materials |
| Overall width | 0.8–76.2 ft (0.2–23.2 m) | Narrow models pass through standard doorways and residential hallways |
| Operating weight | 759.8–3,164.0 kg (1,675–6,976 lb) | Range accommodates compact models suitable for upper-floor slabs and elevator transport |
How to choose
This size class is appropriate when work occurs in finished interiors with restricted access and standard ceiling heights. The 19 ft platform height suits tasks in commercial buildings with 12–20 ft ceilings, and the narrow frame navigates doorways, corridors, and freight elevators without modification. When platform heights above 20 ft are required—such as high-bay retail spaces, atriums, or multi-story warehouses—the 20-27 ft Electric Scissor Lift becomes necessary. Outdoor applications or rough terrain generally require engine-powered rough-terrain scissor lifts instead.
What this size handles
- Installing recessed lighting and electrical fixtures in office ceilings
- Running HVAC ductwork and sprinkler pipe in retail fit-outs
- Hanging and finishing drywall in commercial interiors
- Painting and trim work in hotel lobbies and corridors
- Inspecting and servicing ceiling-mounted equipment in hospitals
- Setting ceiling tile grids in schools and municipal buildings
Safety & operation
- Non-marking tires protect finished flooring; ensure floor loading capacity meets or exceeds machine operating weight plus dynamic loads
- Fall protection harnesses and guardrails are standard; operators must secure lanyards to designated anchor points per ANSI A92.20 standards
- Pothole and drop-off protection required; lifts must operate on level surfaces within manufacturer gradeability limits (typically 25–30%)
- Maintain clearance from overhead obstructions, electrical wiring, and structural elements throughout the lift's range of motion
Transport & logistics
- Most units fit in standard enclosed trailers or on lightweight flatbed trailers; operating weights from 760 kg to 3,164 kg span compact models suitable for half-ton truck towing to heavier configurations
- Compact width and weight of smaller models permit loading into freight elevators rated for 3,000+ lb, enabling multi-story interior access without crane lifts
- Some models fold or retract for transport in box trucks or cargo vans
Power & supply
- Electric battery power (typically 24V or 48V DC); units recharge from standard 110V or 220V AC outlets overnight or between shifts
- Run-time varies with duty cycle but generally supports a full work shift; zero emissions and low noise suit occupied buildings
- No on-site fuel storage or ventilation requirements
Frequently asked
What is the maximum working height for this size class?
Working heights range from 5.5 to 25 ft, with most models in the class offering 23–25 ft of working height from a 19 ft platform height, accounting for an operator's reach.
Will a 19 ft electric scissor fit through a standard doorway?
Units with overall widths of 30–32 inches pass through standard 36-inch commercial doorways; verify stowed height clears door headers and that turning radius allows maneuvering in the space.
What differentiates this class from taller electric scissor lifts?
The Up to 20 ft Electric Scissor Lift class prioritizes compact dimensions and light weight for access-restricted interiors, whereas the 20-27 ft Electric Scissor Lift and larger models provide greater platform height at the cost of wider frames and heavier transport requirements.
Compare popular models
Find by spec →Normalised to the same units. A dash means the figure was not published.
| Model | Working height | Platform capacity |
|---|---|---|
| JLG ES1932 | 19 ft (5.8 m) | 507 lb (230 kg) |
| Custom Equipment PS-1030 | 16 ft (4.9 m) | 800 lb (363 kg) |
| Custom Equipment PS-1430 | 20 ft (6.1 m) | 701 lb (318 kg) |
| Custom Equipment ZT-1230 | 18 ft (5.5 m) | 650 lb (295 kg) |
| Genie GS-1930 | 25.6 ft (7.8 m) | 1,102 lb (500 kg) |
| Genie GS-1932 | 25.6 ft (7.8 m) | 1,102 lb (500 kg) |
Related equipment
Browse by manufacturer
Sources
Every specification is verified against the manufacturer's published data, with the source linked for reference.
Up to 20 ft Electric Scissor Lift
110 models · Page 2 of 3 · Every spec cited to source
Dingli JCPT1418DC
14.3 ft (4.4 m)
800 lb (363 kg)
→
Dingli JCPT1412HA
13.8 ft (4.2 m)
705 lb (320 kg)
→
Skyjack SJ-3014
→
Custom Equipment PS-1430
20 ft (6.1 m)
701 lb (318 kg)
1,779 lb (807 kg)
→
Genie GS-1432
20.7 ft (6.3 m)
1,984 lb (900 kg)
→
Genie GS-1432M
20.7 ft (6.3 m)
1,984 lb (900 kg)
→
Skyjack SJ3215
20.6 ft (6.3 m)
2,531 lb (1,148 kg)
→
JLG ES-1530L
1,940 lb (880 kg)
→
Skyjack SJIII 3215
21.6 ft (6.6 m)
2,469 lb (1,120 kg)
→
Genie GS-1530
21.6 ft (6.6 m)
2,575 lb (1,168 kg)
→
Genie GS-1532
21.6 ft (6.6 m)
2,718 lb (1,233 kg)
→
Dingli JCPT1523DCL2
15 ft (4.6 m)
1,499 lb (680 kg)
→
Dingli JCPT1523DCB
15 ft (4.6 m)
1,499 lb (680 kg)
→
Skyjack SJ3215 E
14 ft (4.3 m)
→
JLG ES1530M
15 ft (4.6 m)
500 lb (227 kg)
→
Skyjack SJIII3215
→
Dingli JCPT1612AC
15.7 ft (4.8 m)
551 lb (250 kg)
→
Dingli JCPT1614AC
15.7 ft (4.8 m)
551 lb (250 kg)
→
Dingli JCPT1612HA
15.7 ft (4.8 m)
551 lb (250 kg)
→
Dingli JCPT1614ACZ
15.7 ft (4.8 m)
772 lb (350 kg)
→
Dingli JCPT1614HA
15.7 ft (4.8 m)
551 lb (250 kg)
→
Dingli JCPT1614HAZ
15.7 ft (4.8 m)
772 lb (350 kg)
→
Imer IM 3116
22 ft (6.7 m)
→
Custom Equipment ZT-1630
22 ft (6.7 m)
650 lb (295 kg)
1,786 lb (810 kg)
→

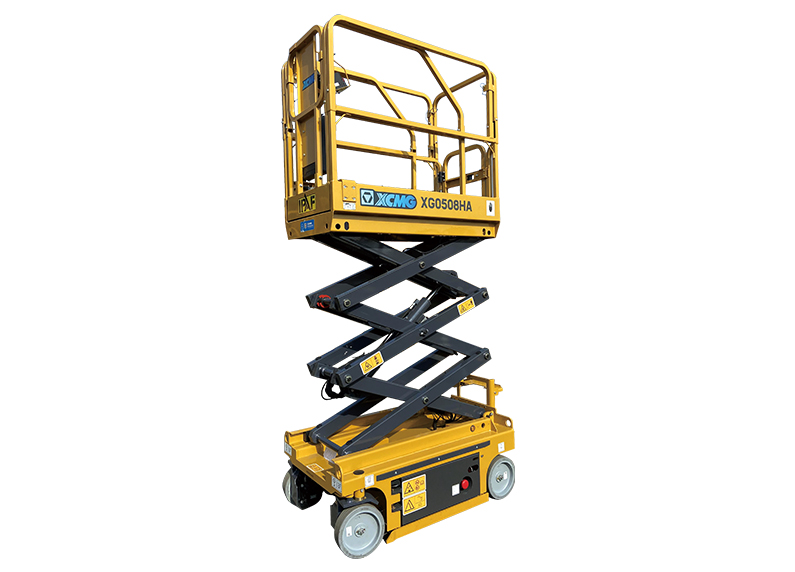

XCMG XG0508HA
18 ft (5.5 m)
441 lb (200 kg)
→
Dingli JCPT1712DCL
17.2 ft (5.2 m)
1,102 lb (500 kg)
→
Dingli JCPT1823DCL2
18 ft (5.5 m)
1,499 lb (680 kg)
→
Dingli JCPT1823DCB
18 ft (5.5 m)
1,499 lb (680 kg)
→
JLG ES1930M
18 ft (5.5 m)
500 lb (227 kg)
→
MEC Micro19+
18 ft (5.5 m)
600 lb (272 kg)
→
MEC Micro19-XD+
18 ft (5.5 m)
600 lb (272 kg)
→
MEC Micro 19-XD
24.9 ft (7.6 m)
500 lb (227 kg)
3,064 lb (1,390 kg)
→
MEC Micro 19
19 ft (5.8 m)
500 lb (227 kg)
→
Skyjack SJ-3215-19
25.1 ft (7.7 m)
3,236 lb (1,468 kg)
→
Custom Equipment PS-1930
24.6 ft (7.5 m)
650 lb (295 kg)
1,984 lb (900 kg)
→
JCB S1932E
18.7 ft (5.7 m)
507 lb (230 kg)
→
Haulotte Optimum 8
25.5 ft (7.8 m)
507 lb (230 kg)
3,373 lb (1,530 kg)
→
Genie GS-1930
25.6 ft (7.8 m)
1,102 lb (500 kg)
2,703 lb (1,226 kg)
→

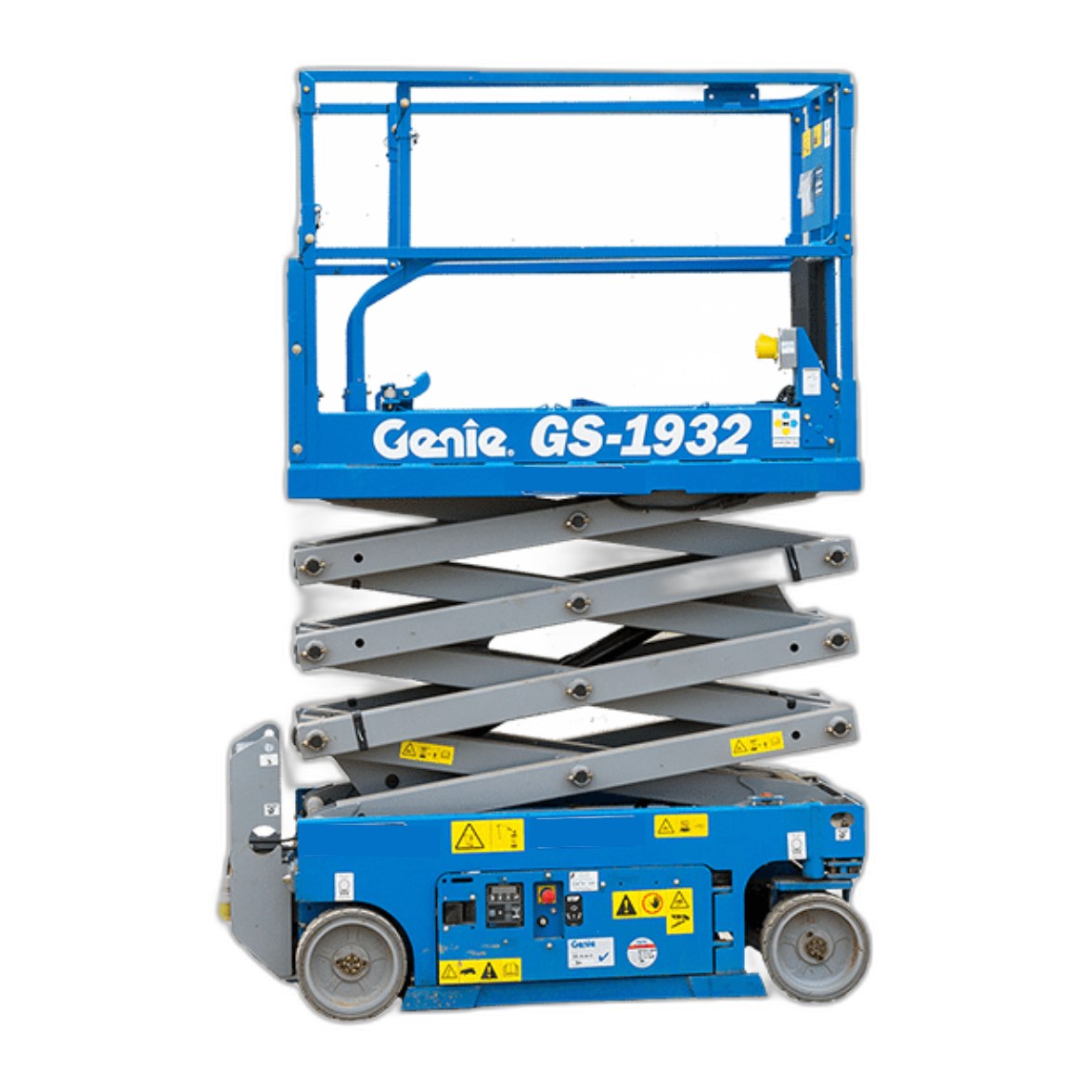

Genie GS-1932
25.6 ft (7.8 m)
1,102 lb (500 kg)
3,303 lb (1,498 kg)
→
Skyjack 3219
25.6 ft (7.8 m)
2,892 lb (1,312 kg)
→
Dingli JCPT1923DCL
19 ft (5.8 m)
1,499 lb (680 kg)
→
Dingli JCPT1912DC
19 ft (5.8 m)
1,653 lb (750 kg)
→
Dingli JCPT1912DCL
19 ft (5.8 m)
1,102 lb (500 kg)
→
JLG DaVinci AE1932
19 ft (5.8 m)
606 lb (275 kg)
→
Ballymore DMSL-19
25 ft (7.6 m)
3,164 lb (1,435 kg)
→

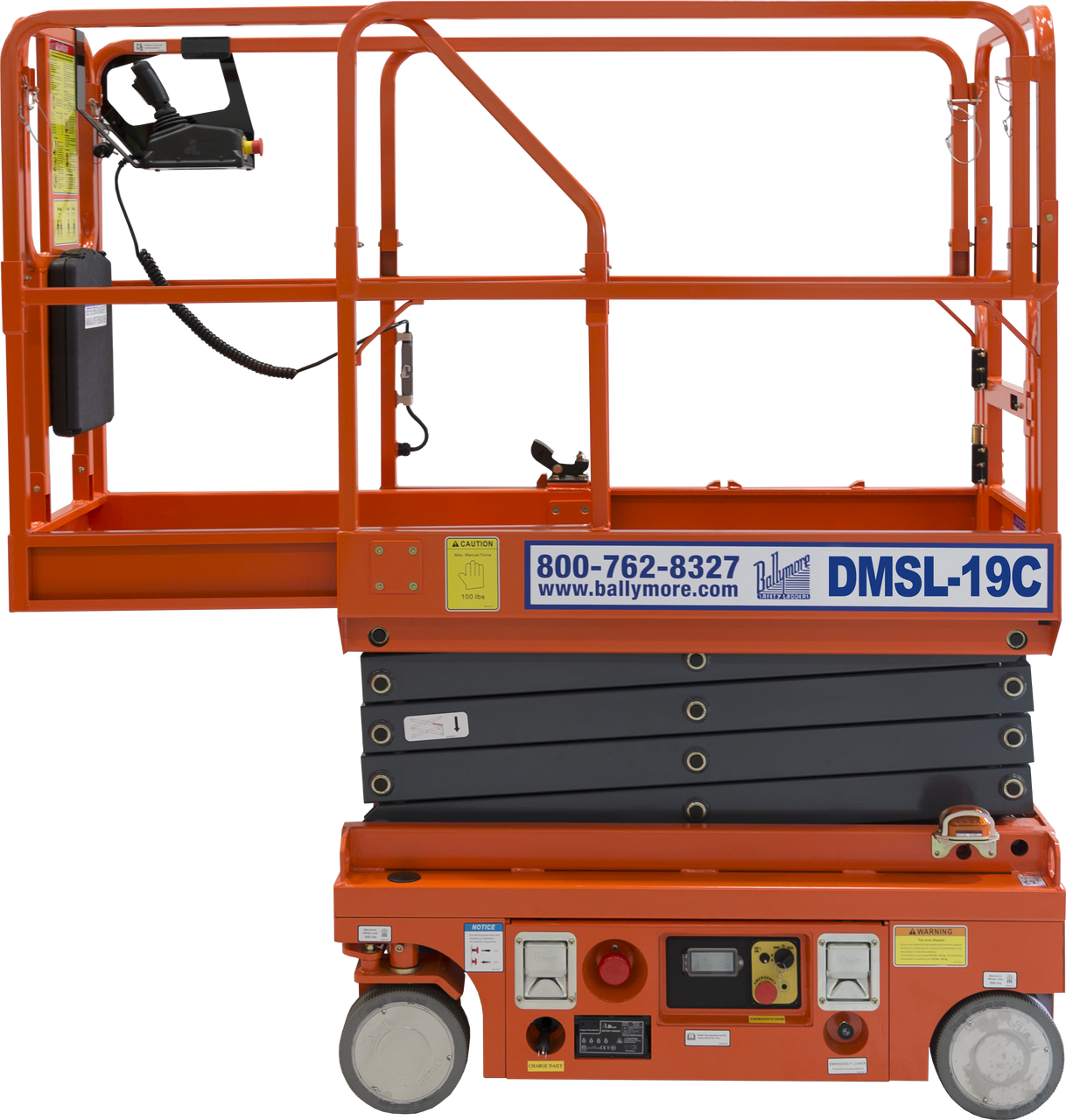

Ballymore DMSL-19C
25 ft (7.6 m)
→
Imer IM 3219 AC
25 ft (7.6 m)
→
MEC 1930SEAC
19 ft (5.8 m)
549 lb (249 kg)
→
