70-90 ft Telescopic Boom Lift
The 70-90 ft telescopic boom lift class centers on the industry's 80 ft platform, engineered for tilt-up construction, precast panel installation, and commercial roof work requiring substantial horizontal outreach. Working heights span 21.8 to 86 ft across 31 models from Genie, JLG, XCMG, Snorkel, Skyjack, MEC, Elliott, and Niftylift. This size bridges mid-range work where 50-70 ft machines lack reach and projects that don't justify the 90-130 ft class.
283
Models
17
Brands
Cat classes
Pick a size class — capacity and reach differ across the range.
All sizes
283 models
Up to 50 ft
76 models
50-70 ft
50 models
70-90 ft
33 models
90-130 ft
35 models
130-160 ft
13 models
160+ ft
8 models
Other sizes
68 models
Key specifications
| Specification | Typical range | What it means |
|---|---|---|
| Working height | 70–86 ft (21.3–26.2 m) | Vertical reach covering four to six stories and commercial roof decks. |
| Maximum reach | 40–62 ft (12.2–18.9 m) | Horizontal outreach for tilt-up panels and precast placement beyond the chassis footprint. |
| Platform capacity | 500–660 lb (227–299 kg) | Supports two operators with tools and material for panel and facade work. |
| Operating weight | 24,400–48,500 lb (11,068–21,999 kg) | Requires heavy-duty trailers and careful site access planning. |
| Engine power | 48–65 hp | Diesel power for all-terrain mobility and gradeability to 55%. |
How to choose
This size class is the appropriate choice for tilt-up construction requiring outreach beyond 40 ft, precast panel installation on four- to six-story structures, and commercial roof work where vertical reach alone is insufficient. Where projects involve primarily vertical access within 60 ft working height and limited horizontal obstacles, the 50-70 ft Telescopic Boom Lift offers easier transport and lower operating weight. For high-rise facade work, bridge inspection, or industrial applications exceeding 80 ft working height, the 90-130 ft Telescopic Boom Lift provides the necessary elevation and extended reach.
What this size handles
- Tilt-up panel bracing and welding on commercial warehouses and distribution centers
- Precast concrete installation on mid-rise office and institutional buildings
- Commercial roof HVAC equipment placement and service access
- Facade cladding and curtain wall installation on four- to six-story structures
- Industrial building steel erection and overhead utility work
- Sign installation and maintenance on tall commercial buildings
Safety & operation
- Ground conditions and slope must remain within manufacturer gradeability limits; soft or uneven surfaces require outriggers or stabilization
- Wind loading calculations critical at full extension; manufacturers specify maximum wind speeds for operation
- Load charts define platform capacity at various boom angles and extensions; reductions apply at maximum reach
- Proximity to overhead power lines governed by OSHA minimum clearance distances; spotter and lockout protocols required
Transport & logistics
- Operating weights of 24,400–48,500 lb require tandem-axle or tri-axle lowboy trailers rated 20+ tons
- Over-dimensional permits frequently required; escort and route planning necessary for public road transport
- Site delivery demands stable ground conditions and adequate clearance for tractor-trailer maneuvering
Power & supply
- Diesel engines of 36–65 hp with fuel tanks holding 114–170 gallons for multi-day operation
- Tier 4 Final emissions compliance standard across current model lines
- Daily fuel consumption varies with duty cycle; extended reach operations increase engine load
Frequently asked
What horizontal reach distinguishes this class from smaller telescopic booms?
Maximum reach extends 40–62 ft in this class, compared to typically under 45 ft in the 50-70 ft class. This additional outreach is critical for tilt-up panel work and positioning beyond building footprints without repositioning the base.
How does platform capacity change at full extension?
Platform capacity ranges 500–660 lb at stowed position but is reduced at maximum height and reach per manufacturer load charts. Derated capacities at full extension typically support one or two operators with minimal material.
What site access width is required for this size class?
Stowed widths vary by model and tire configuration; all-terrain models are wider than industrial versions. Transport and jobsite pathways must accommodate both the machine width and adequate clearance for stabilizers where equipped.
Compare popular models
Find by spec →Normalised to the same units. A dash means the figure was not published.
| Model | Working height | Platform capacity |
|---|---|---|
| JLG 800S | 80 ft (24.4 m) | 1,001 lb (454 kg) |
| JLG 800S HC3 | 80 ft (24.4 m) | 1,001 lb (454 kg) |
| Haulotte HT23 RTJ PRO | 73.8 ft (22.5 m) | 507 lb (230 kg) |
| JLG 660SJ | 72.1 ft (22.0 m) | 750 lb (340 kg) |
| Genie S-65 XC | 71.6 ft (21.8 m) | 1,455 lb (660 kg) |
| Genie S-80 XC | 86.5 ft (26.4 m) | 1,455 lb (660 kg) |
Related equipment
Up to 50 ft Telescopic Boom Lift 7650-70 ft Telescopic Boom Lift 5090-130 ft Telescopic Boom Lift 35130-160 ft Telescopic Boom Lift 13160+ ft Telescopic Boom Lift 8
Browse by manufacturer
Sources
Every specification is verified against the manufacturer's published data, with the source linked for reference.
70-90 ft Telescopic Boom Lift
33 models · Every spec cited to source

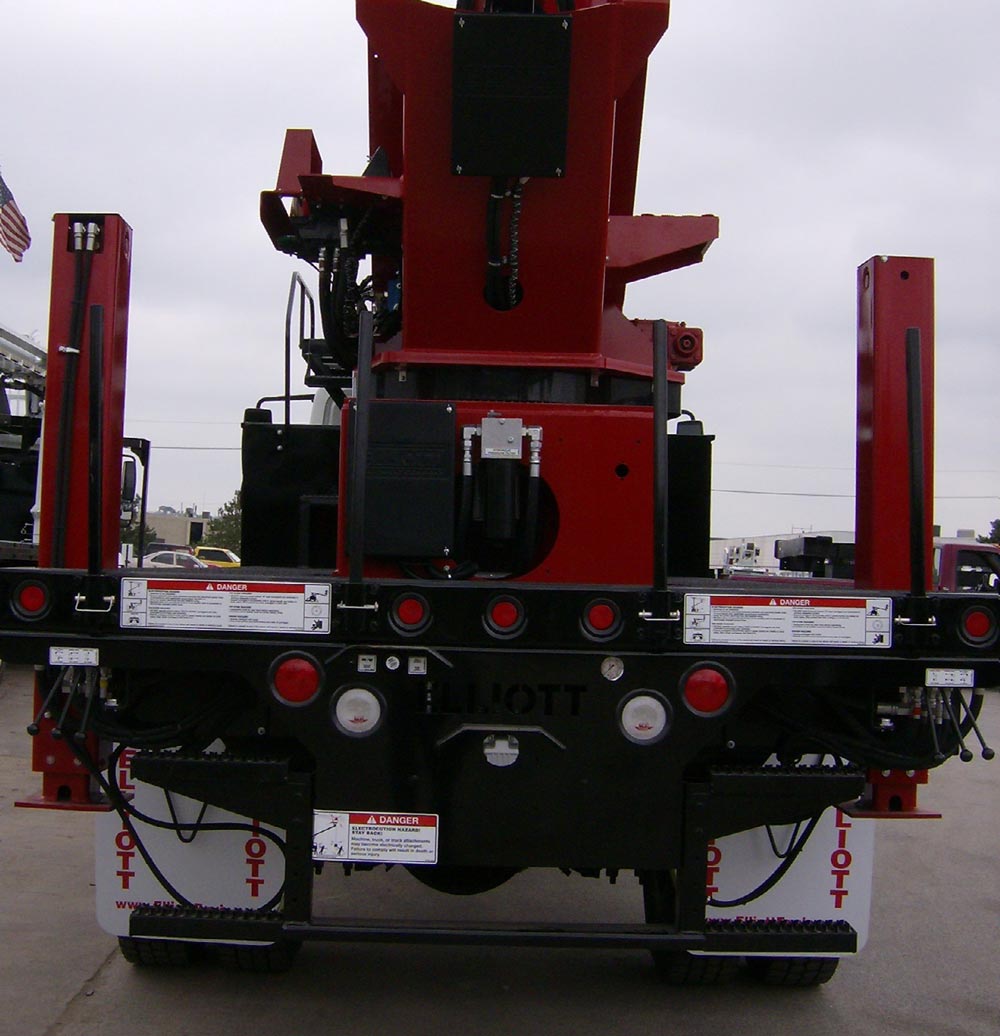

Elliott H70R HiReach
70 ft (21.3 m)
500 lb (227 kg)
→
Hangcha HB Series Telescopic Boom Lift
70.2 ft (21.4 m)
1,014 lb (460 kg)
→
Niftylift SP65SE
71 ft (21.6 m)
619 lb (281 kg)
22,000 lb (9,979 kg)
→
Snorkel 660SJ All Terrain
71 ft (21.6 m)
28,660 lb (13,000 kg)
→

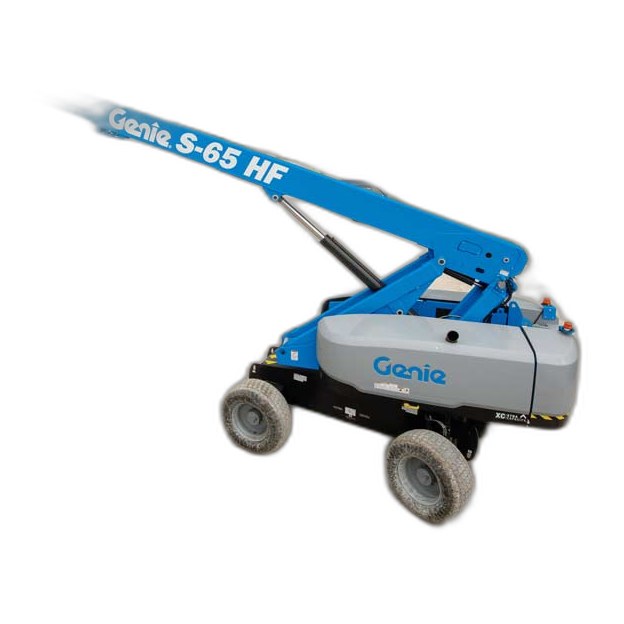

Genie S-65 XC
71.6 ft (21.8 m)
1,455 lb (660 kg)
25,159 lb (11,412 kg)
→
Genie S-65TRAX
71.6 ft (21.8 m)
29,000 lb (13,154 kg)
→
Genie S-65-HF
71.7 ft (21.9 m)
24,454 lb (11,092 kg)
→

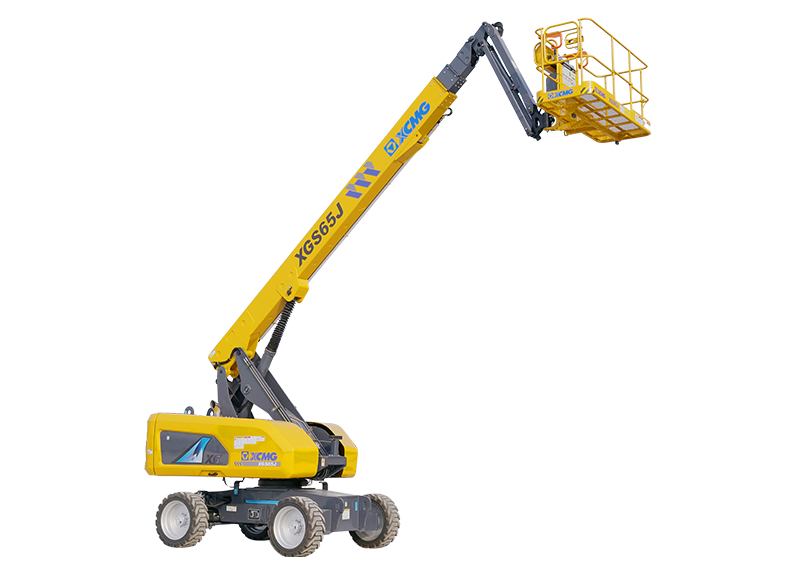

XCMG XGS65J-ANSI
72 ft (21.9 m)
661 lb (300 kg)
→
JLG 660SJ
72.1 ft (22.0 m)
750 lb (340 kg)
29,339 lb (13,308 kg)
→
Snorkel 660SJ
72.2 ft (22.0 m)
28,620 lb (12,982 kg)
→
XCMG XGS22K
72.2 ft (22.0 m)
661 lb (300 kg)
→
Hinowa TeleCrawler22S
72.2 ft (22.0 m)
→
Skyjack SJ-6166T
72.2 ft (22.0 m)
27,745 lb (12,585 kg)
→
Skyjack SJ66 T+
72.5 ft (22.1 m)
28,903 lb (13,110 kg)
→
Haulotte HT23 RTJ PRO
73.8 ft (22.5 m)
507 lb (230 kg)
29,542 lb (13,400 kg)
→
Elliott H70F HiReach
75 ft (22.9 m)
600 lb (272 kg)
→

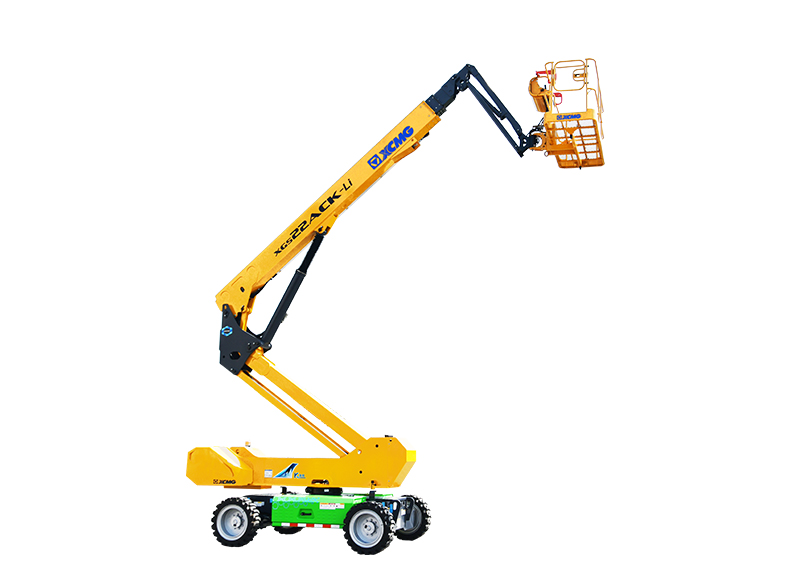

XCMG XGS22ACK
75.1 ft (22.9 m)
661 lb (300 kg)
→
JLG 800S
80 ft (24.4 m)
1,001 lb (454 kg)
34,738 lb (15,757 kg)
→
JLG 800S HC3
80 ft (24.4 m)
1,001 lb (454 kg)
34,738 lb (15,757 kg)
→
XCMG XGS24ACK-Li
80.4 ft (24.5 m)
661 lb (300 kg)
→
JLG 810SJ
81 ft (platform_height)
→
XCMG XGS25K
82 ft (25.0 m)
661 lb (300 kg)
→
Skyjack SJ82 T
82 ft (platform_height)
→
MEC DualReach 85-J Diesel
85 ft (25.9 m)
899 lb (408 kg)
→
MEC DualReach 85-J Hybrid
85 ft (25.9 m)
600 lb (272 kg)
→
JLG 860SJ
86 ft (26.2 m)
750 lb (340 kg)
→
JLG 860SJ HC3
86 ft (26.2 m)
1,001 lb (454 kg)
→
Genie S-80 XC
86.5 ft (26.4 m)
1,455 lb (660 kg)
37,000 lb (16,783 kg)
→
Genie S-80-HF
86.5 ft (26.4 m)
35,501 lb (16,103 kg)
→
Snorkel TB80
86.6 ft (26.4 m)
36,332 lb (16,480 kg)
→
Genie S-80-J-TRAX
87 ft (26.5 m)
28,700 lb (13,018 kg)
→
Genie S-80/J
87 ft (26.5 m)
24,500 lb (11,113 kg)
→
Genie S-80TRAX
87.1 ft (26.5 m)
29,588 lb (13,421 kg)
→
